This is a link to a photo showing a long red wire in the trunk of my 02 xkr. Now I don't remember where it connects to ??? I had to replace the battery and when I put the battery in, the car would not crank, leading me to believe this wire connects from the fuse box in the trunk to ?? I would not think it should connect to the high voltage box !! It comes from the wiring bundle that goes back to the fuse box area.

Thanks,
Ken in WV by golly !!



https://photos.google.com/photo/AF1Q...OOytMZwcdMq1Wu



Ken,

Try adding the photo or relinking to it. That link isn't working .......



Graham



Can't see photo.



I think that belongs on the watsits just by the thingy.



frankc,
I wasn't looking there, the doolittle was in the way so I could not see the watsits and I think my thingy was modified by the previous owner !!!





....... and I was about to chide Frank for being silly.

Can we assume from no follow up photo that you've solved the mystery?

Graham



Spoke too soon - the photo has landed.

Graham

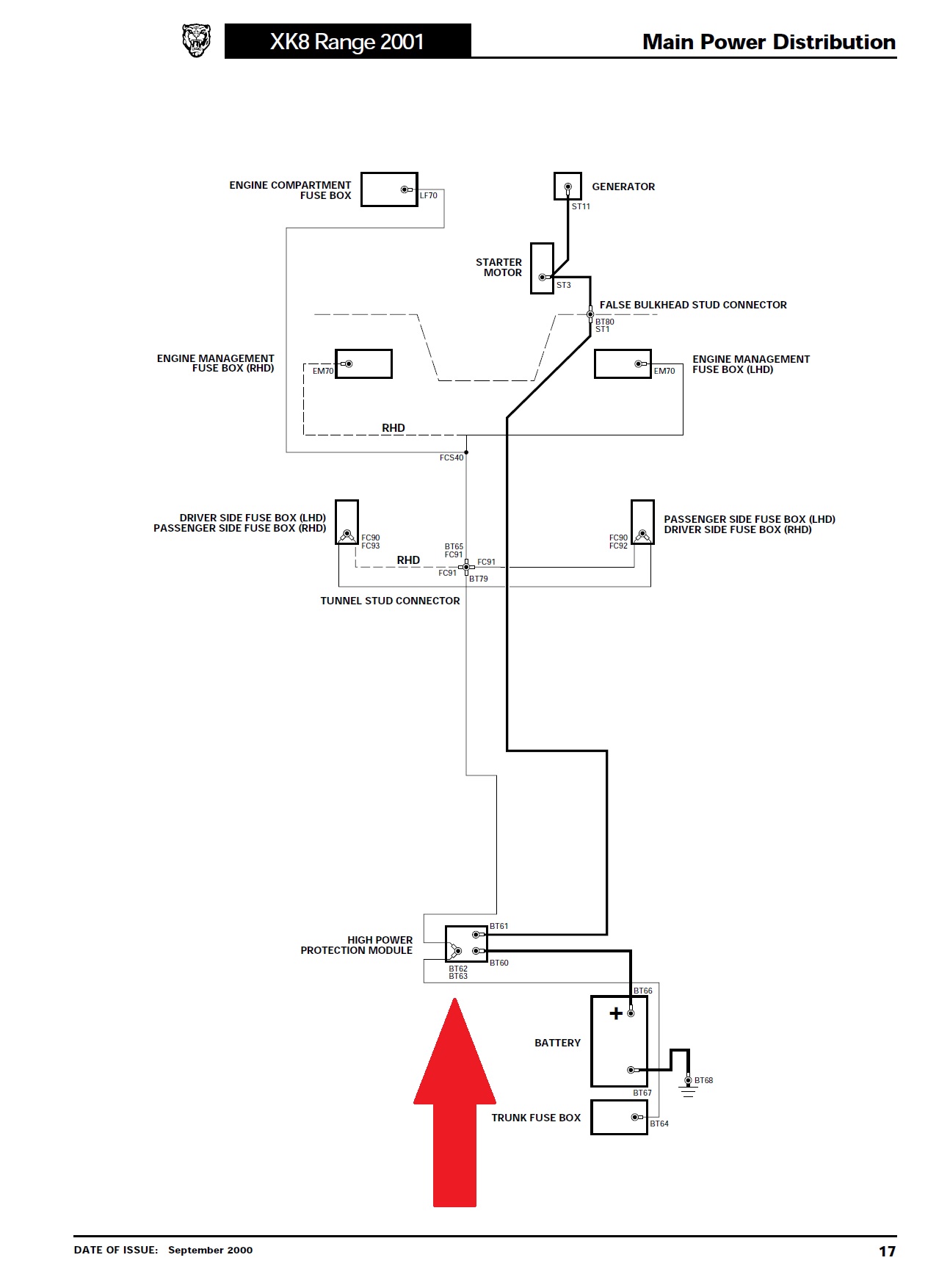

Here's the connections to the High Power Protection Module:



Graham



Graham,
Thanks for the diagram. I don't know how the wire was taken off of the connection in the box... It just doesn't seem to have been connected there when I first got the car. Perhaps the previous owner connected it to the positive post on the battery. I will reconnect per diagram as that's where it is supposed to go.... thanks for all of your help and patience !!
Ken
