Default 2013 XJ Battery Maintainer Installation

For MY 2013, Jaguar introduced its "Intelligent Stop/Start" system on XJ and XF models. That system incorporates a second, auxiliary battery to restart the engine after it has been stopped, for example, while waiting at a stop light. Connecting a battery maintainer directly to the main battery positive (+) and negative (-) terminals can cause damage to the electrical system. The negative (-) ground connection must be made directly to the chassis, and not the main battery.

The auxiliary battery is at the top right. Note that I used the CTEK alligator clips (with the pigtail and black and yellow quick connector) and that the red clip is connected to the main battery positive (+) terminal and the black clip is connected to a ground on the body. Those clips are very strong.


Here's a close-up:


Next, I closed the floor panel and fed the pigtail with the quick connector exposed above the floor, ready to be connected to the CTEK.


Here's is the connected pigtail. Note that I fed the wire under the weatherstrip and tail light, which allows the trunk to close completely without touching that wire. I keep the CTEK unit outside of the trunk since it gets hot while in operation.

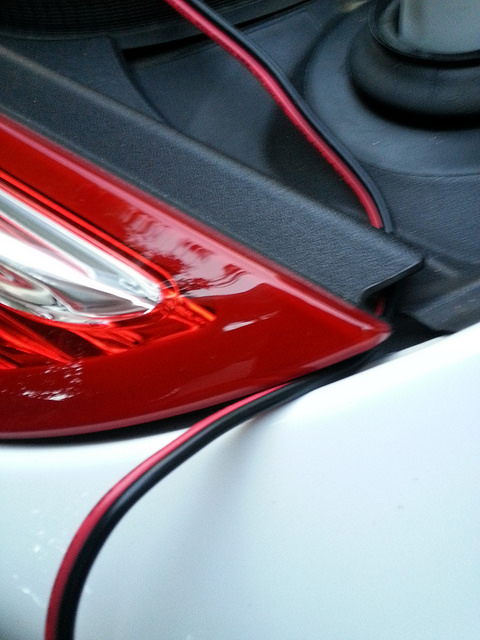

And a close-up:

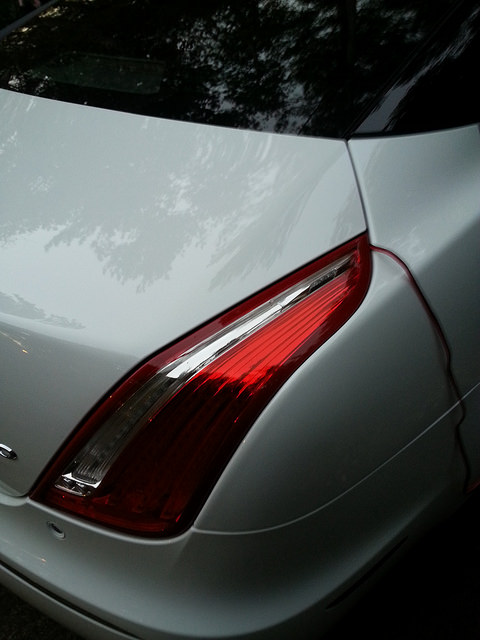

With the trunk closed:

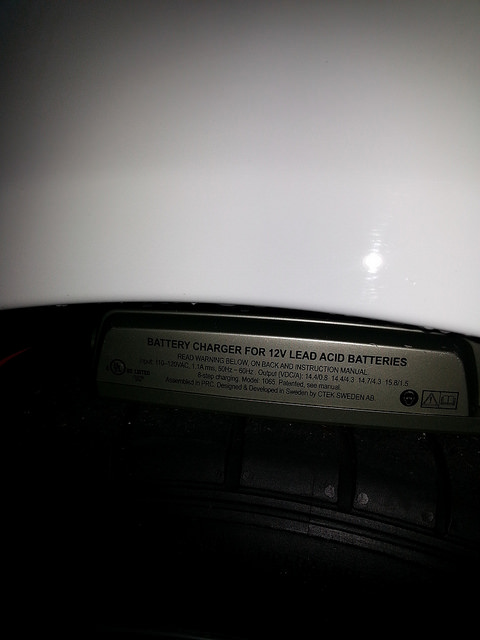

With the CTEK unit perched on top of my right rear tire:


Works great! My CTEK is model MUS 4.3, which is an 8-stage charger and is an upgrade over the 4-stage model 3300.

Hope this helps!

Stuart

Attached Thumbnails 2013 XJ Battery Maintainer Installation-ctek1.jpg   2013 XJ Battery Maintainer Installation-ctek2.jpg   2013 XJ Battery Maintainer Installation-ctek3.jpg   2013 XJ Battery Maintainer Installation-ctek4.jpg   2013 XJ Battery Maintainer Installation-ctek5.jpg

2013 XJ Battery Maintainer Installation-ctek6.jpg   2013 XJ Battery Maintainer Installation-ctek7.jpg
The following 2 users liked this post by Stuart S:
apachegogo (01-23-2015), JonWat (01-23-2016)
  #2
Old 11-10-2014, 02:45 PM
roviw's Avatar
Senior Member
Join Date: Mar 2009
Location: Hampshire, UK
Posts: 537
Received 94 Likes on 81 Posts
Default

Good write up. I did a similar connection but I used the other connector where the live bolts straight to the battery and the negative bolted to the chassis Earth point. Minimises the likelihood of maybe the crocodile clip coming undone.
I only have the one battery as it is a 2011 model but I
I haves been using a ctek from day 1.

  #3
Old 11-10-2014, 10:45 PM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default

I have a BatteryMINDER brand maintainer for my 2009 XKR and use the supplied alligator clips to connect to the remote battery terminals in the trunk. Those clips have held tight for over 2-1/2 years of daily use. The CTEK alligator clips are much larger and stronger and I doubt they will come undone. For background and details, see my posts ##17, 19, and 21 on the New XK/XKR forum: https://www.jaguarforums.com/forum/x...s-73471/page2/

I keep both of my Jags plugged in whenever they are parked at home. Just got the XJ, and haven't had any electrical gremlins in my XKR. I credit that to always locking the doors and keeping it on the battery maintainer. I'll do the same with the XJ.

  #4
Old 10-16-2018, 10:21 PM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default How to Charge the Auxiliary Stop-Start Battery

Does anyone know if the CTEK as I have it installed to the primary battery, per the above pictures, also simultaneously charges the small stop-start battery? My stop-start hasn't been working as frequently as it used to, and I'm thinking that the auxiliary battery might not be fully charged. What should the minimum voltage of that small battery be with the engine off? That auxiliary battery was replaced by my dealer (expensive critter!) less than a year ago. I use my CTEK almost every day, as most of my driving is short trips around town, and very little highway, and it starts right up every time.

I'm thinking of attaching my CTEK to the auxiliary battery, but am not sure if I should attach the negative lead to the battery post or to a chassis ground. Or if it makes any difference with that battery.


Last edited by Stuart S; 10-16-2018 at 10:28 PM. Reason: Added title
  #5
Old 10-18-2018, 05:40 PM
Veteran Member
Join Date: May 2009
Location: home
Posts: 3,305
Received 586 Likes on 485 Posts
Default

I think your right Stuart. The little battery is not in the circuit until the engine cuts off so I can't see any way you could charge it thru the big battery.
Otherwise if you ran the battery down it would kill both batteries.

I think your right again that the battery monitor is attached to the big battery only.
You don't get any dash board lights when the little battery is low just the ECO function stops working but you do if the big one is low.
.
.
.

  #6
Old 10-19-2018, 09:07 AM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default CTEK Works on Auxiliary Stop-Start Battery

Last night I hooked up my CTEK MUS4.3 to my small stop-start battery using the alligator clips, with the red clipped onto the + positive battery terminal and the black clipped onto a chassis ground as pictured below. I attached the power lead, plugged the CTEK into the wall outlet, and set the CTEK to the small battery program indicated by the motorcycle icon. The CTEK went to Stage 2. This morning the CTEK was at Stage 7. It appears that the small battery was quite discharged, which is why the stop-start wasn't working properly.

CTEK Hookup


Stage 7 and Small Battery Program


I decided to leave the small battery alligator clip pigtail attached and routed it into the trunk, where I also routed the main battery pigtail. This makes it quick and easy to charge either battery.


I can't take my XJ for a test drive right now as all 4 wheels are off the car and being refurbished. I'll have them back tomorrow and will update this thread and let you know if the stop-start is now working properly.

  #7
Old 10-19-2018, 11:37 AM
roviw's Avatar
Senior Member
Join Date: Mar 2009
Location: Hampshire, UK
Posts: 537
Received 94 Likes on 81 Posts
Default

I have a work van with two batteries, not for start stop but one is used for starting the vehicle and the other for accessories. They are both the same size batteries. I have rigged up the bolt on connections to each battery as they are mounted under the drivers seat and if the van is not used for a while, say over a Christmas holiday , then I connect a ctek to each battery

  #8
Old 10-20-2018, 01:46 PM
Junior Member
Join Date: Aug 2017
Location: San Diego, CA
Posts: 19
Received 2 Likes on 2 Posts
Default

My solution was much simpler. On my battery minder, it has an option to plug in an OBD II adapter, so I purchased that and then I just crack the driver window and run it thru that, plug into the ODB II port and it works. I garage my vehicle, so having the window cracked is no issue.

  #9
Old 10-22-2018, 11:33 AM
Veteran Member
Join Date: May 2009
Location: home
Posts: 3,305
Received 586 Likes on 485 Posts
Default

I have seen those before and have not been able to find any amperage rating?
Not sure you can change or how much you can charge thru the OBDII port?
.
.
.

  #10
Old 10-22-2018, 02:19 PM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default

Originally Posted by Stuart S View Post
Last night I hooked up my CTEK MUS4.3 to my small stop-start battery using the alligator clips, with the red clipped onto the + positive battery terminal and the black clipped onto a chassis ground as pictured below. I attached the power lead, plugged the CTEK into the wall outlet, and set the CTEK to the small battery program indicated by the motorcycle icon. The CTEK went to Stage 2. This morning the CTEK was at Stage 7. It appears that the small battery was quite discharged, which is why the stop-start wasn't working properly.

CTEK Hookup


Stage 7 and Small Battery Program


I decided to leave the small battery alligator clip pigtail attached and routed it into the trunk, where I also routed the main battery pigtail. This makes it quick and easy to charge either battery.


I can't take my XJ for a test drive right now as all 4 wheels are off the car and being refurbished. I'll have them back tomorrow and will update this thread and let you know if the stop-start is now working properly.
SUCCESS! The stop-start system now works perfectly! All it needed was for the small stop-start battery to be charged.

  #11
Old 12-16-2018, 08:53 AM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default

Note that the XJ primary battery is an AGM battery, so the CTEK must be set to the cold weather mode (snowflake icon) for the proper charging profile. The normal mode (car icon) is for conventional, "flooded" batteries, not AGM. The motorcycle icon is for the small, secondary battery .

For the XJ stop-start system to function properly, the primary battery needs to be fully charged as well as the secondary battery. If either battery is weak, the stop-start won't work.

  #12
Old 06-03-2019, 09:03 PM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default

Update and correction: CTEK Customer Service told me to use the normal mode (car icon) for my AGM battery, except when the temperature is below freezing.

  #13
Old 06-04-2019, 05:33 AM
Veteran Member
Join Date: Oct 2014
Location: SF bay area
Posts: 1,018
Received 318 Likes on 248 Posts
Default

Doesn’t sound right to me. AGM needs a higher charging voltage.

  #14
Old 06-06-2019, 11:17 AM
Stuart S's Avatar
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Atlanta suburbs
Posts: 5,340
Received 2,265 Likes on 1,468 Posts
Default

Originally Posted by Stuart S View Post
Update and correction: CTEK Customer Service told me to use the normal mode (car icon) for my AGM battery, except when the temperature is below freezing.
Here's the document from CTEK:



  #15
Old 06-06-2019, 11:44 AM
Veteran Member
Join Date: Oct 2014
Location: SF bay area
Posts: 1,018
Received 318 Likes on 248 Posts
Default

The charging voltage is less critical than the float, as it spends a short time charging, and a long time at float.

Does the manual say anywhere what the float voltage is? A lead acid battery requires about 13.4V during float, while an AGM requires more - 13.8. If you leave an AGM long term at 13.4V float voltage, it will be a little undercharged - at about 90%. The rule for lead acid batteries (including AGM) is that uncharged capacity gets lost to sulphation, so with time you'll lose 10%.

Given that one point of having a battery tender is to prevent this from happening, it seems like a good idea to use the correct profile. Simple question for CTEK, does this charger have the right profile for AGM, or not? If not, get a charger that does.

Here's a reference by Rolls, probably the most reputable manufacturer of batteries there is :

AGM Charging : Technical Support Desk
