Brake Light Switch


  #1
Old 09-19-2013, 05:49 AM
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Cheshire CT
Posts: 2,626
Thanked 1,532 Times in 855 Posts
Default Brake Light Switch

The part number for brake light switch is LNB6420BB.
Gaudin Jaguar online retail price is $124.75 (discounted price is $101.35) plus shipping cost of $14.95.

Rock Auto Parts online sells this part for $45.89. Part is mfg by Standard Motor Products (part# sls504) plus shipping (??? part was not in stock, so no shipping info right now).

  #2
Old 09-20-2013, 11:22 AM
Senior Member
Join Date: Sep 2012
Location: Apalachicola Florida
Posts: 546
Thanked 43 Times in 37 Posts
Default

I am needing this part now I think as well.

  #3
Old 09-20-2013, 12:24 PM
OldMike's Avatar
Veteran Member
Join Date: Mar 2012
Location: Florida
Posts: 1,531
Thanked 195 Times in 145 Posts
Default

I think I paid around $85 plus shipping at Welsh Ent.

  #4
Old 09-20-2013, 12:42 PM
Senior Member
Join Date: Sep 2012
Location: Apalachicola Florida
Posts: 546
Thanked 43 Times in 37 Posts
Default

Is this the same as brake pedal switch?

  #5
Old 09-20-2013, 12:44 PM
jimbov8's Avatar
Veteran Member
Join Date: Jul 2012
Location: Uk
Posts: 1,965
Thanked 587 Times in 528 Posts
Default

All part of the same switch. Also controls the cruise disengage and park solenoid.

  #6
Old 09-20-2013, 01:12 PM
Senior Member
Join Date: Sep 2012
Location: Apalachicola Florida
Posts: 546
Thanked 43 Times in 37 Posts
Default

Thanks. I keep blowing fuses so I guess ima have to get one.

  #7
Old 09-20-2013, 04:51 PM
Junior Member
Join Date: Sep 2012
Location: Kelowna
Posts: 18
Thanked 4 Times in 4 Posts
Default

Could this brake switch be the cause of my mysterious minor problems? Often (but not always) when I press the brake pedal I get the "Check Rear Lights' warning but all the lights work (including side markers) every time I have checked.
Also the cruise control switch light comes on at random times when I have not pressed it.
Cheers,
Andrew

  #8
Old 09-20-2013, 05:51 PM
OldMike's Avatar
Veteran Member
Join Date: Mar 2012
Location: Florida
Posts: 1,531
Thanked 195 Times in 145 Posts
Default

Check Rear Lights is often caused by a bad bulb, or maybe a loose bulb. I don't know what would case the CC to turn on at random times -- are you saying that the red light on the CC switch by the J-gate turns on or that CC engages without hitting the set button on the steering wheel?

  #9
Old 09-20-2013, 08:43 PM
Junior Member
Join Date: Sep 2012
Location: Kelowna
Posts: 18
Thanked 4 Times in 4 Posts
Default

Hi Mike,
I checked all bulbs and cleaned the sockets. The lights all seem to all work fine. The red light on the CC switch by the J-gate comes on and the switch seems to change position without me pushing it. I think I may take this switch out and clean it, the action seems slightly sticky.

  #10
Old 09-20-2013, 09:11 PM
OldMike's Avatar
Veteran Member
Join Date: Mar 2012
Location: Florida
Posts: 1,531
Thanked 195 Times in 145 Posts
Default

If the red light on the CC switch on the J-gate goes off by itself, I'd guess the BPP switch is the culprit.

  #11
Old 09-24-2013, 07:05 PM
Senior Member
Join Date: Sep 2012
Location: Apalachicola Florida
Posts: 546
Thanked 43 Times in 37 Posts
Default

If your check rear lamps is coming in when u hit brakes your security module is bad if your bulbs aren't. Bypass it.

  #12
Old 09-24-2013, 07:10 PM
princemarko's Avatar
Senior Member
Join Date: Mar 2010
Location: Tampa
Posts: 576
Thanked 108 Times in 52 Posts
Default

I actually think i have an extra one... its either a brake light microswitch or the j-gate switch

  #13
Old 09-25-2013, 05:54 PM
Sean B's Avatar
Veteran Member
Join Date: Oct 2008
Location: Sunny Southport UK
Posts: 4,415
Thanked 1,112 Times in 902 Posts
Default

Originally Posted by Andrew View Post
Hi Mike,
.....switch seems to change position without me pushing it.....
You need to call Ghostbusters!

  #14
Old 10-08-2013, 08:24 AM
Junior Member
Join Date: Jul 2013
Location: Arkansas
Posts: 10
Thanked 0 Times in 0 Posts
Default

Have the same problem described above, all lights work. Warning comes and goes, but only while driving and after hitting the brakes. Also note the cruise control turns off and can't be turned back on when the warning kicks in. Anyone know if the brake light switch for my 2002 XK8 is the same as the Ford T Bird or Lincoln LS? Also, where is the switch located and is it something I can fix? Have a 5 to 1 "Gus Ratio" (If Gus in the XK8 forum says a repair took him 1 hour I plan on 5 hours).

  #15
Old 01-30-2014, 05:48 AM
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Cheshire CT
Posts: 2,626
Thanked 1,532 Times in 855 Posts
Default

Please advise me on how to install the Brake Light Switch - Read the following and post your replies in this thread.

Looks like there are sets of instructions (TSB and JTIS) on how to install the Brake Light Switch that are similar, but with these exceptions:
TSB says "Ensure stop light switch ratchet is fully released.

JTIS instructions say "Press and hold down the brake pedal" and "Make sure the brake pedal is held clear of the BPP switch ratchet mechanism during installation."


Here are the instructions from the 2 sources
TSB 203-07
9. Position new stop light switch.
10. Ensure stop light switch ratchet is fully released.
11. Install new stop light switch on brake pedal box. (Locating upper fixing)
12. Tighten stop light switch securing nut and bolt to 3 Nm (Illustration 6).

JTIS - 2001 XJ Range
Installation
1. Press and hold down the brake pedal.
2. CAUTION:
Make sure the brake pedal is held clear of the BPP switch ratchet mechanism during installation.
Failure to follow this instruction may result in incorrect adjustment of the BPP switch.
CAUTION:
Make sure the BPP switch is correctly installed to the upper locating point.

Install the BPP switch.
1. Align the BPP switch to the upper locating point.
2. Install the BPP switch.
3. Release the brake pedal.

I am a little confused at this point.

Jim Lombardi

The Following User Says Thank You to jimlombardi For This Useful Post:
xjay8 (01-31-2014)
  #16
Old 01-30-2014, 06:02 AM
plums's Avatar
Veteran Member
Join Date: Feb 2011
Location: on-the-edge
Posts: 9,731
Thanked 2,113 Times in 1,582 Posts
Default

The instructions are essentially the same thing said different ways.

The essential part is that the ratchet mechanism be fully released during the install. This is because later when the brake pedal is depressed *after* the install, the ratchet will adjust to the necessary position.

The Following 2 Users Say Thank You to plums For This Useful Post:
jimlombardi (01-30-2014), xjay8 (01-31-2014)
  #17
Old 01-30-2014, 09:12 AM
OldMike's Avatar
Veteran Member
Join Date: Mar 2012
Location: Florida
Posts: 1,531
Thanked 195 Times in 145 Posts
Default

The only reason I can see for the ratchet to not be fully released is if the brake pedal arm is in the way, thus pushing the brake pedal will clear the switch and allow the ratchet to be released. As plums said, it's the same thing said two ways!

  #18
Old 01-30-2014, 11:29 AM
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Cheshire CT
Posts: 2,626
Thanked 1,532 Times in 855 Posts
Default

I am having a problem in trying to find the upper locating point to slide in the top notched slot on the brake light switch as shown in this diagram:

Brake Light Switch-brake-light-switch-diag1.jpg

Here are photos of the new switch

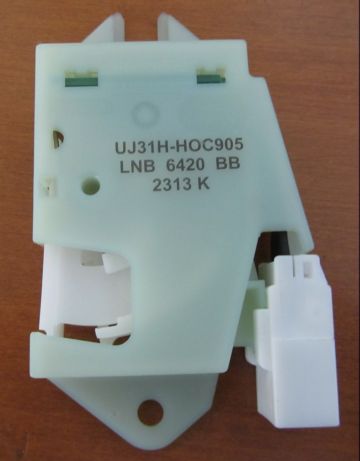

Brake Light Switch-xj-x308-new-brake-light-switch-photo-2.jpg

Brake Light Switch-xj-x308-new-brake-light-switch-photo-1.jpg

Why am I having such a difficult time getting brake light switch installed?

Any tricks to do this? Advice appreciated.

Jim Lombardi


Last edited by jimlombardi; 01-30-2014 at 12:00 PM.
  #19
Old 01-30-2014, 12:02 PM
dsnyder586's Avatar
Veteran Member
Join Date: Jun 2011
Location: Costa Mesa, CA
Posts: 2,010
Thanked 478 Times in 388 Posts
Default

Hey Jim,

I did this on my XK8 recently and used this post for help- https://www.jaguarforums.com/forum/x...ics-faq-37758/

If you look at the bracket and the orientation of the studs to the actual switch it helps. I also started the car so that the brake pedal would go down further.

D

  #20
Old 01-30-2014, 01:05 PM
Veteran Member
Thread Starter
Join Date: Aug 2010
Location: Cheshire CT
Posts: 2,626
Thanked 1,532 Times in 855 Posts
Default

Hi
Your XK8 has a brake switch is lot different than our switch - XJ models switch does not have the 2 studs at the top - only has the slotted notch that slides into the upper fixing point (I do not know where & what that looks like).

But I hope someone can tell me where and what it looks like and how to locate it and slide the slotted notch into it.
