Does my car has a cooling issue?
#1
Does my car has a cooling issue?
I was driving my 1973 series 1 4.2 the other day. Everything was running smooth when I noticed the temperature gague all of a sudden was reading zero. I stopped the car and looked under the hood.
The only thing I noticed was that the expansion tank has a seemingly very small leak (small drops but no obvious flow) from the seam underneath. Anyway there was still fluid in the tank, and I topped up untill the tank was about half full.
Then I continued driving home for another 10 minutes, and the gague was fluctuating slowly between zero and normal. Mostly around zero.

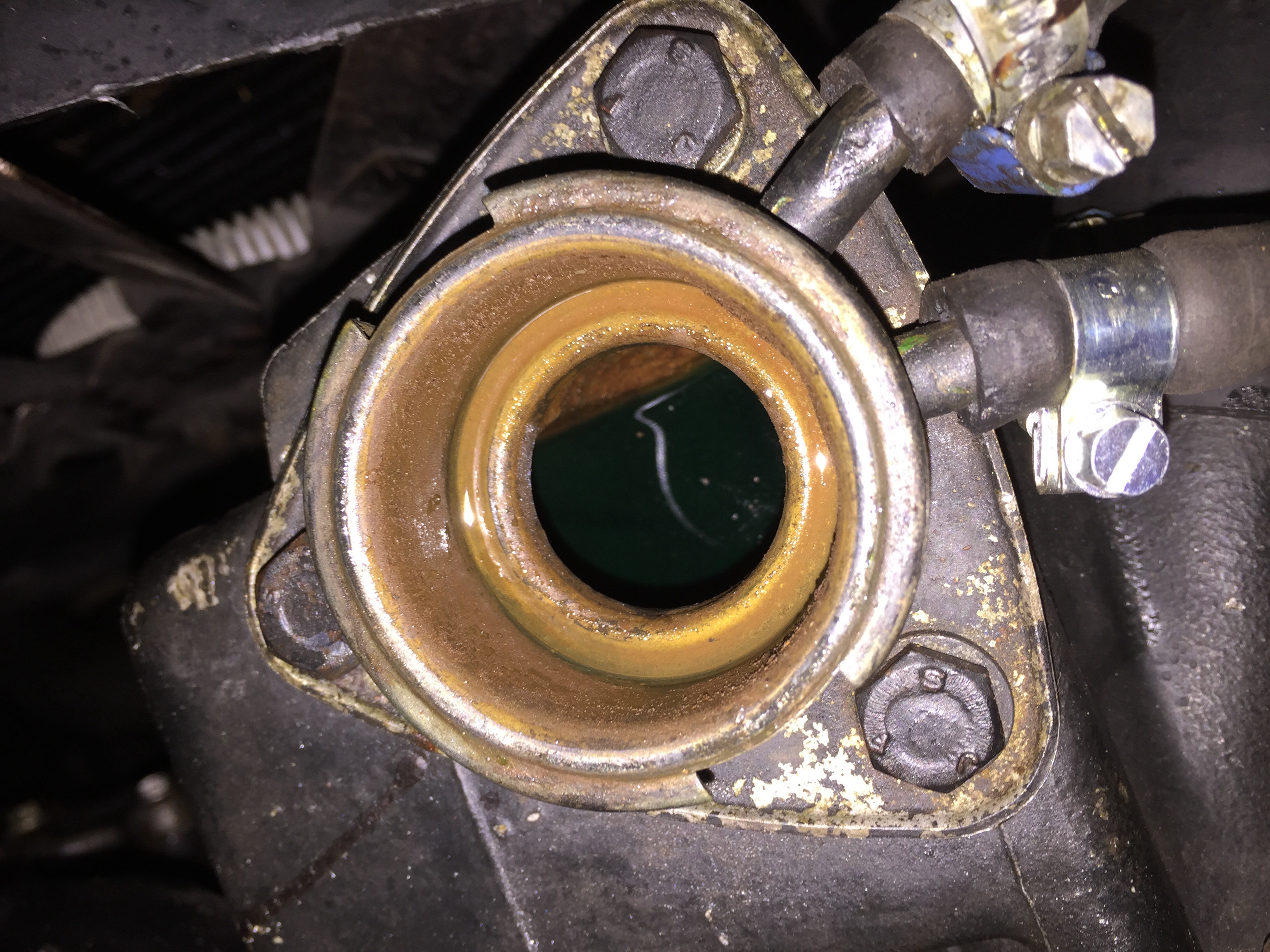

Once the engine had cooled off completely I opened up the filler cap on the engine. The fluid level was about 5 centimeters below the cap. See the attached picture.
Now to my questions:
1. What can the cause of the abnormal gauge reading be?
2. Is the coolant fluid level in the engine block normal? If not, where should it be?
3. Is it safe to drive the car.
The only thing I noticed was that the expansion tank has a seemingly very small leak (small drops but no obvious flow) from the seam underneath. Anyway there was still fluid in the tank, and I topped up untill the tank was about half full.
Then I continued driving home for another 10 minutes, and the gague was fluctuating slowly between zero and normal. Mostly around zero.
Once the engine had cooled off completely I opened up the filler cap on the engine. The fluid level was about 5 centimeters below the cap. See the attached picture.
Now to my questions:
1. What can the cause of the abnormal gauge reading be?
2. Is the coolant fluid level in the engine block normal? If not, where should it be?
3. Is it safe to drive the car.
#3
Welcome to the forum.
That filler spout on top of the engne is meant to be 100% full.
The header tank on the LH inner guard is where the expansion/contraction takes place.
With a known leak, it will always give grief. That needs repairing before any more diagnosis is done, simple.
The temp sensor is under the inlet manifold, basically behind the front carby, and has a single Green wire attac
As said, the wire/connector/sensor may be the issue, but IF that sensor is NOT making contact with coolant it will NOT give a reading, as it is designed to sense fluid, NOT vapour/steam/hot air.
Remove that sensor wire, ign ON, earth that wire, and note the dash gauge going full scale, which is a usual indication of a faulty sensor unit, about $10.
That filler spout on top of the engne is meant to be 100% full.
The header tank on the LH inner guard is where the expansion/contraction takes place.
With a known leak, it will always give grief. That needs repairing before any more diagnosis is done, simple.
The temp sensor is under the inlet manifold, basically behind the front carby, and has a single Green wire attac
As said, the wire/connector/sensor may be the issue, but IF that sensor is NOT making contact with coolant it will NOT give a reading, as it is designed to sense fluid, NOT vapour/steam/hot air.
Remove that sensor wire, ign ON, earth that wire, and note the dash gauge going full scale, which is a usual indication of a faulty sensor unit, about $10.
The following users liked this post:
XJ6S1 (06-20-2016)
#4
Thanks, and thanks for the advice.

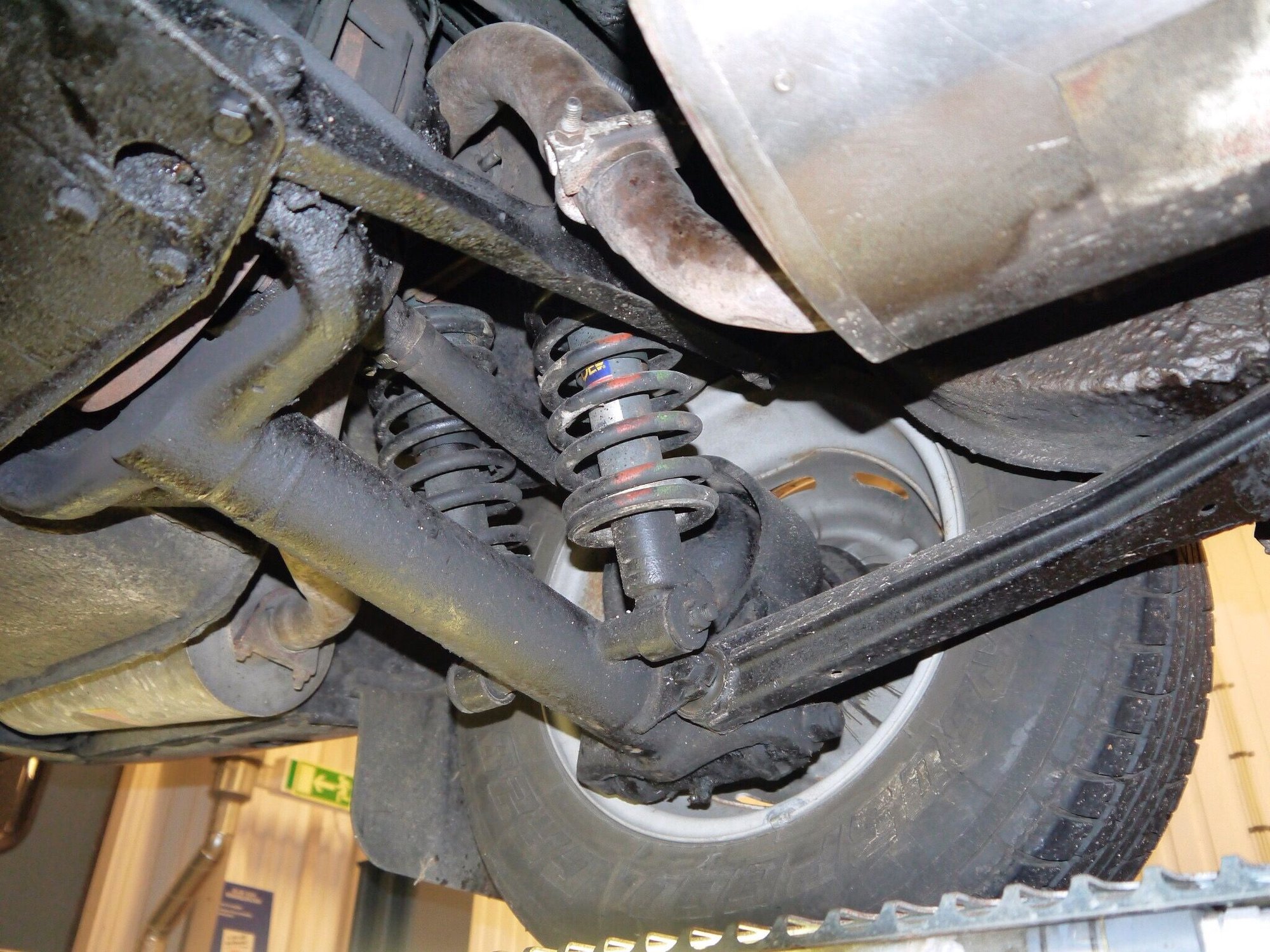

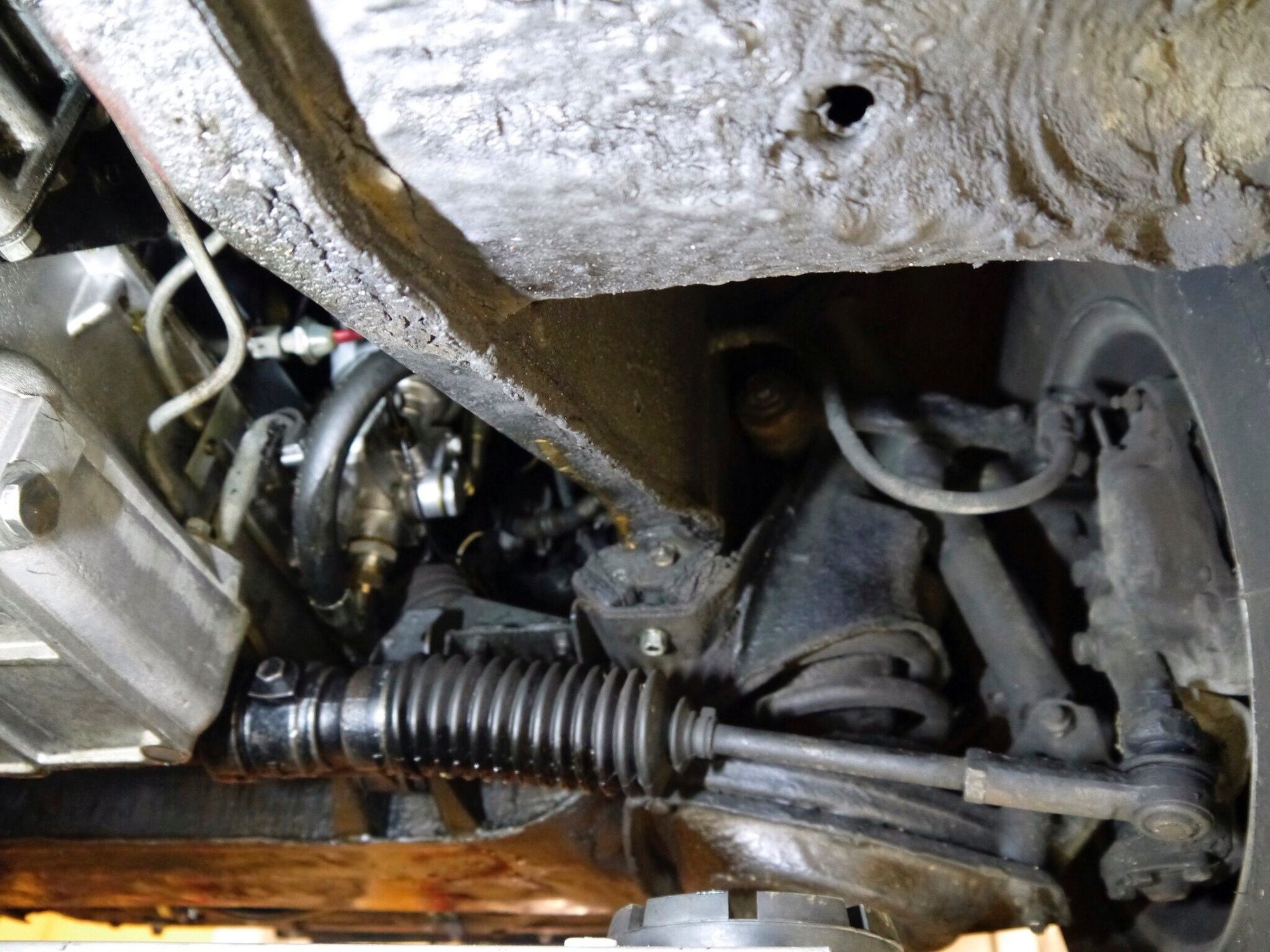

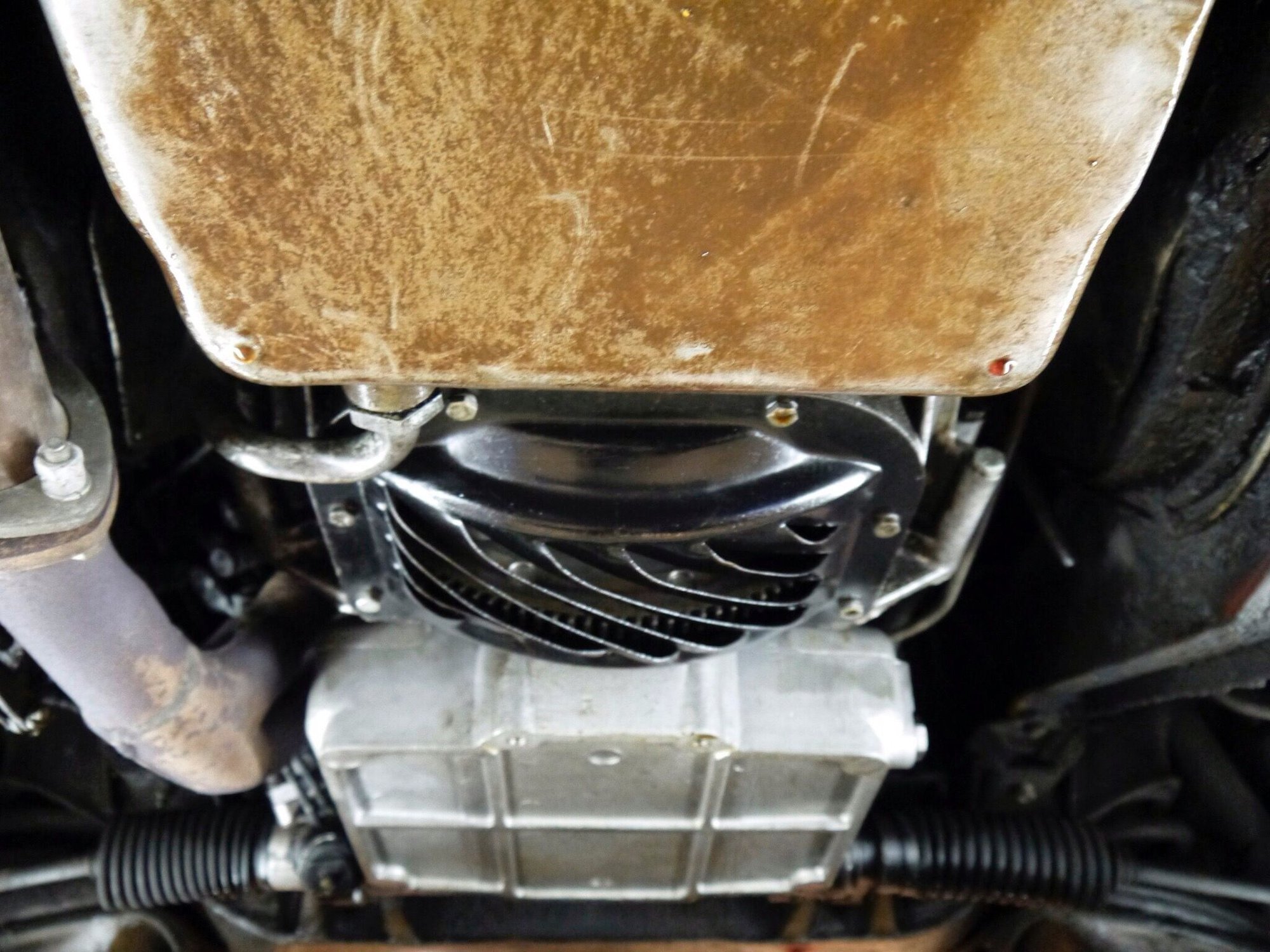

I have been lurking around this forum for some time. Been wanting to buy an XJ S1/2 for 10+ years. Last year the oppertunity to buy an immaculate series 1 came up, and now it is mine. It has been more or less completely restored over the last 19 years, including a completely rebuilt engine. However the car has been driven no more than 7000 km during those years. I guess I will be seeing some recommissioning issues for the time coming.
Anyway, a new expansion tank has been ordered. Once fitted, to what level shall the tank be filled? I will refill the engine block to the top of the filler cap anyway as advised above.
I have been lurking around this forum for some time. Been wanting to buy an XJ S1/2 for 10+ years. Last year the oppertunity to buy an immaculate series 1 came up, and now it is mine. It has been more or less completely restored over the last 19 years, including a completely rebuilt engine. However the car has been driven no more than 7000 km during those years. I guess I will be seeing some recommissioning issues for the time coming.
Anyway, a new expansion tank has been ordered. Once fitted, to what level shall the tank be filled? I will refill the engine block to the top of the filler cap anyway as advised above.
#5
Good.
About half way.
There is no hard and fast level.
Those 2 hoses on the edge of that snap look a tad tired and swollen?, so maybe address them whilst you wait for that tank.
Where do you call home???, since different markets have different items all over the car.
Add your abode through the "User CP".
About half way.
There is no hard and fast level.
Those 2 hoses on the edge of that snap look a tad tired and swollen?, so maybe address them whilst you wait for that tank.
Where do you call home???, since different markets have different items all over the car.
Add your abode through the "User CP".
The following users liked this post:
XJ6S1 (06-20-2016)
#6
It's been a while so thought I would update on the progress. Warning, Wall of Text, though.
July last year I followed all of the above advices. The temperature gauge was confirmed ok. The hoses were replaced with new ones. A new "original" expansion tank was ordered from SNG Barratt. (The old tank had definitely seen better days.) The engine block was filled to the top and the expansion tank about half way with coolant.
Then I drove the car without issues a few km. After sitting for about 45 minutes I fired the car up again. A huge cloud of white smoke came out of the exhaust. The temperature gauge didn't give a proper reading. Shut the car down and didn't drive it anymore.
This was a bit worrying since pretty much exactly the same thing had happened a few months earlier and less than 1000 km ago. The only difference this time was that I noticed a small amount of coolant penetrating at one of the cylinder studs/acorn nuts. The first time this happened the headgasket was replaced by one of the most reputable Jaguar workshops around here.
However at that time there were no obvious signs of the head gasket being blown, and both the head and engine block were measured to be completely straight. Could there perhaps have been some other cause behind the coolant leak both the first and second time? Also remember that the engine was completely rebuilt less than 8000 km (but many years) ago.
I had the car flat bedded back to the workshop. Their theory was that due to the engine rebuild, which may have included skimming of both the head and block, the studs could have been rendered too long in relation to the acorn nuts. Hence the acorn would interfere with threads of the stud during torquing, leaving limited force to compress the head gasket resulting in the inevitable leakage.
After remedying the nut/stud situation and extensive test driving by the workshop it appears as the problem has been solved. More test driving is to be done, but the outlook is very positive now. Unfortunately I don't have any opportunity to collect the car this year, so it will only be put to full test next year, when I hopefully will be driving it much more frequently.

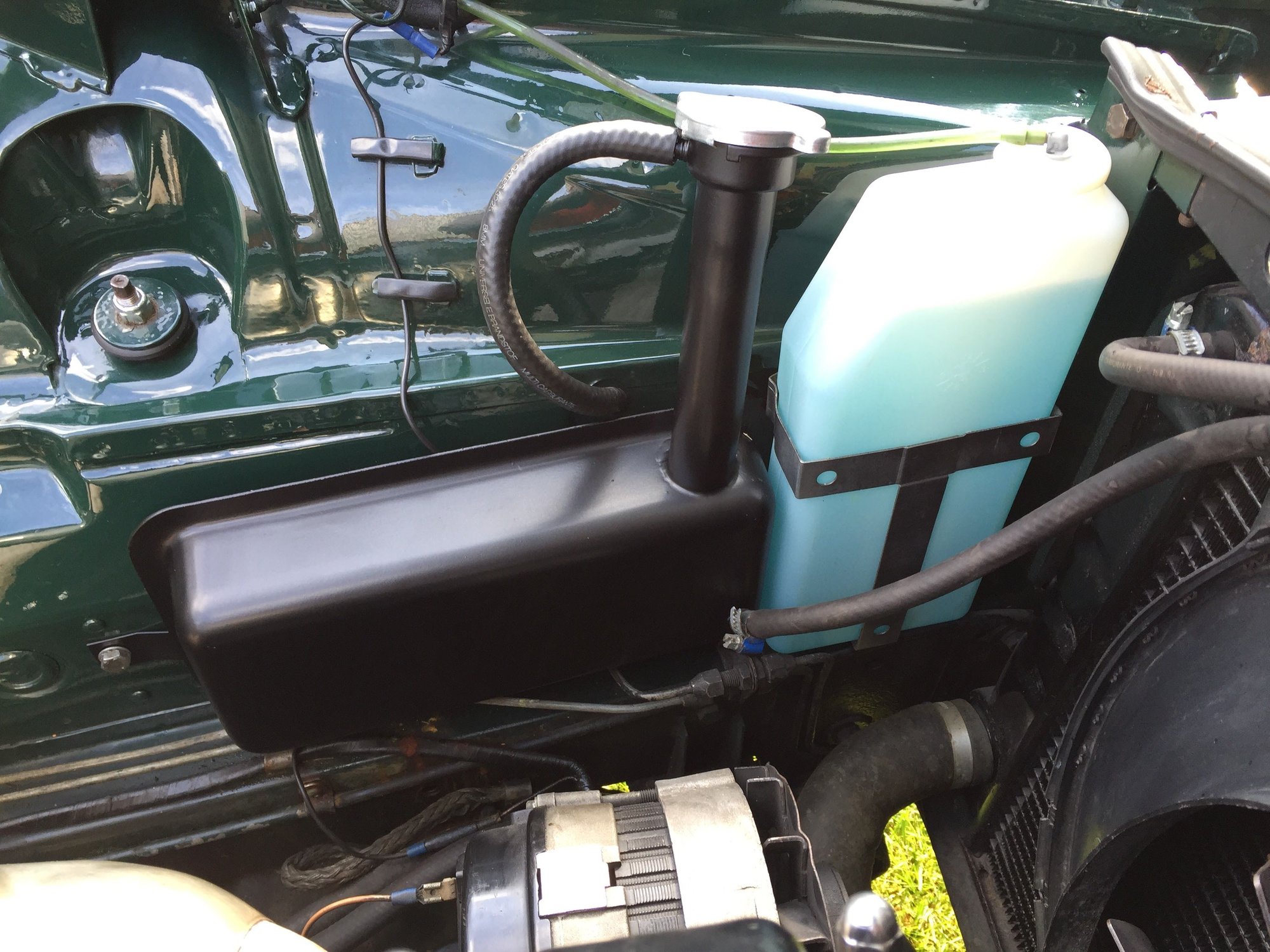

New expansion tank.
New hoses.

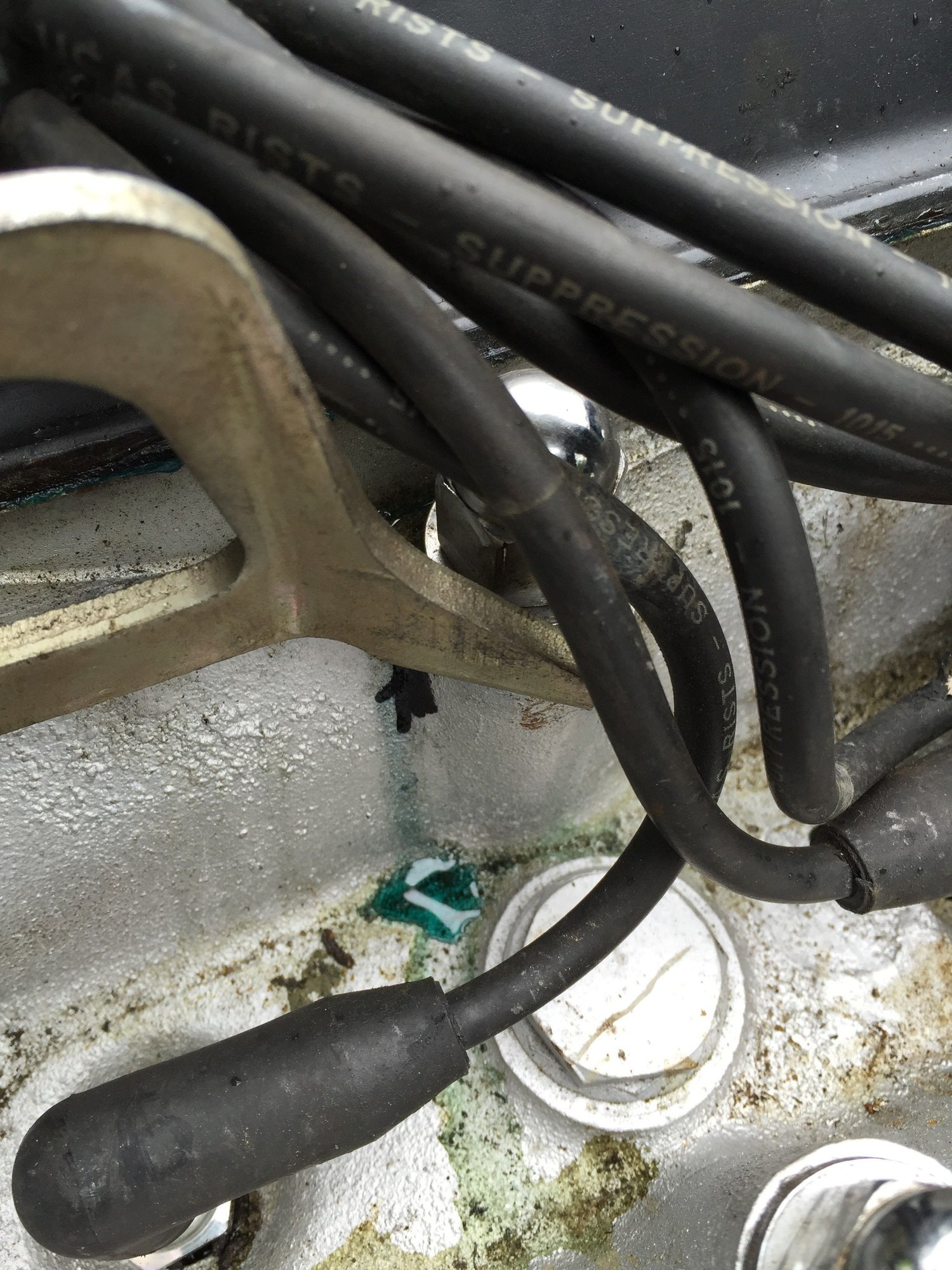

External coolant leak.
The old expansion tank.
July last year I followed all of the above advices. The temperature gauge was confirmed ok. The hoses were replaced with new ones. A new "original" expansion tank was ordered from SNG Barratt. (The old tank had definitely seen better days.) The engine block was filled to the top and the expansion tank about half way with coolant.
Then I drove the car without issues a few km. After sitting for about 45 minutes I fired the car up again. A huge cloud of white smoke came out of the exhaust. The temperature gauge didn't give a proper reading. Shut the car down and didn't drive it anymore.
This was a bit worrying since pretty much exactly the same thing had happened a few months earlier and less than 1000 km ago. The only difference this time was that I noticed a small amount of coolant penetrating at one of the cylinder studs/acorn nuts. The first time this happened the headgasket was replaced by one of the most reputable Jaguar workshops around here.
However at that time there were no obvious signs of the head gasket being blown, and both the head and engine block were measured to be completely straight. Could there perhaps have been some other cause behind the coolant leak both the first and second time? Also remember that the engine was completely rebuilt less than 8000 km (but many years) ago.
I had the car flat bedded back to the workshop. Their theory was that due to the engine rebuild, which may have included skimming of both the head and block, the studs could have been rendered too long in relation to the acorn nuts. Hence the acorn would interfere with threads of the stud during torquing, leaving limited force to compress the head gasket resulting in the inevitable leakage.
After remedying the nut/stud situation and extensive test driving by the workshop it appears as the problem has been solved. More test driving is to be done, but the outlook is very positive now. Unfortunately I don't have any opportunity to collect the car this year, so it will only be put to full test next year, when I hopefully will be driving it much more frequently.
New expansion tank.
New hoses.
External coolant leak.
The old expansion tank.
#7
