XJ6 & XJ12 Series I, II & III 1968-1992

Head removal


  #1
Old 08-18-2016, 09:41 PM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

I have a 1981 XJ6 and found through compresion testing that cylinder 1 & 2 have 0 psi. I am sure the head gasket is ruptured. Is it possible to replace the head gasket without removal of the engine? Thanks,,,Jerry

  #2
Old 08-18-2016, 11:44 PM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 20,149
Received 6,548 Likes on 4,860 Posts
Default

Yes.

Get a shop manual. :-)

Actual removal of the head can be a stinker...as corrosion holds it fast to the studs. A bottle jack can be used to push the head off of the block.

Or, remove the studs.

Cheers
DD

  #3
Old 08-19-2016, 03:34 AM
Join Date: Jan 2014
Location: Delaneys Creek, Australia
Posts: 23,868
Received 4,563 Likes on 3,472 Posts
Default

Head removal-dsc_5419.jpgHead removal-dsc_5421.jpgHead removal-dsc_5425.jpgHead removal-dsc_5431.jpg

  #4
Old 08-19-2016, 06:33 AM
Darrenmb's Avatar
Veteran Member
Join Date: Oct 2010
Location: Orlando Florida
Posts: 1,715
Received 278 Likes on 182 Posts
Default

Also remove intake before head, its really hard to get off on a bench! Plus adds more weight to an already heavy and awkward to remove object! I used engine hoist to pull head off with i take intact, then wrestled with intake for what seemed like an eternity!!!

  #5
Old 08-19-2016, 09:00 AM
Veteran Member
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 5,732
Received 1,945 Likes on 1,569 Posts
Default

albjerryg:




Think a bit first. How is the bottom end? Bores and bearings.
And, the transmission? Planning other stuff with the head removed?
complete head job, including a skim? The cause of the busted gasket, found and a fix planned. You think some or all of the studs are corroded and may well bust on cracking the nuts?? Rust and Barr's leak plugging up the radiator and coolant passages in the engine?
Renew the freeze plugs...


Once past that stage, plan the work. Or.....


Carl

  #6
Old 08-19-2016, 09:22 AM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

It looks like from the pictures from Clarke the head was removed without removal of the cam and timing chain. ????Thanks Jerry

  #7
Old 08-19-2016, 09:41 AM
Join Date: Jan 2014
Location: Delaneys Creek, Australia
Posts: 23,868
Received 4,563 Likes on 3,472 Posts
Default

Originally Posted by albjerryg View Post
It looks like from the pictures from Clarke the head was removed without removal of the cam and timing chain. ????Thanks Jerry
The cam chain sprockets unbolt from the cams and cable tie the sprockets and chains together.

Head removal-dsc_5570.jpgHead removal-dsc_5573.jpgHead removal-dsc_5574.jpg

  #8
Old 08-19-2016, 10:32 AM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

Clarke thanks for the pictures I guess it will become more apparent when I get started. Thanks Jerry

  #9
Old 08-19-2016, 01:19 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 7,343
Received 1,573 Likes on 1,310 Posts
Default

If you look carefully at the top of the block in the photos on #7, you'll see slots between some of the bores. If you're engine has these, then you're better off, because this eliminated the cracking between the bores suffered by earlier engines (like I had !!). For these slotted block engines head gasket replacement is a simple job. For the previous long-stud blocks, there was almost certainly cracking between bores that meant just replacing the head gasket was a waste of time and lipped liners needed inserting, hence a full overhaul of the engine was the best option. A lot of US guys then just junked the engine, and lumped the car with a super-reliable US-made V8.

  #10
Old 08-19-2016, 02:48 PM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

Well some good news , I went out to recheck the compression and found that the gauge was not working properly. The little catch that hold the PSI until you read and then press to release PSi was not working. I had checked cylinders 6,5,4,3,2,1. so 1 & 2 were checked last and that is when the little switch went out. back to the slots between he cylinders are they visible with nothing removed from the engine. Thanks Jerry

  #11
Old 08-19-2016, 04:50 PM
Join Date: Jan 2014
Location: Delaneys Creek, Australia
Posts: 23,868
Received 4,563 Likes on 3,472 Posts
Default

Originally Posted by Fraser Mitchell View Post
you'll see slots between some of the bores. If you're engine has these, then you're better off, because this eliminated the cracking between the bores suffered by earlier engines (like I had !!). For these slotted block engines head gasket replacement is a simple job.
That simple head gasket job turned into a full engine replacement when we broke a stud off. They are still a long stud engine and have the corrosion problem around the stud but not the cracking cylinder problems as much.

Originally Posted by albjerryg View Post
back to the slots between he cylinders are they visible with nothing removed from the engine. Thanks Jerry
No the slots are not visible with the head on. your car being series 3 should have the slots, the later 8L blocks were slotted this way, the earlier 8L blocks in the series 2 had slots further down in bore.

You may find this thread informative, although not too serious.
https://www.jaguarforums.com/forum/x...-157830/page2/

Below, the later 8L block.

Head removal-dsc_5443.jpgHead removal-dsc_5464.jpgHead removal-dsc_5568.jpg

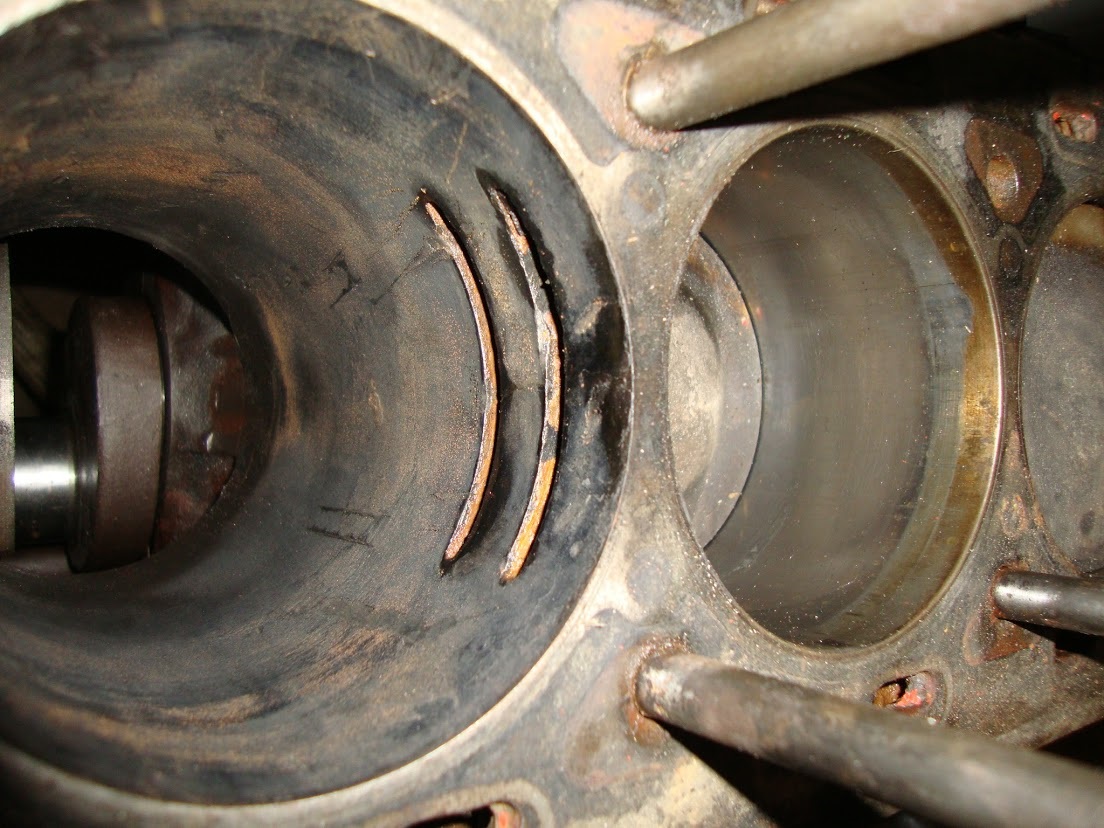

Early 8L block.

Head removal-jaguar-7l-8l-coolant-passages.jpg

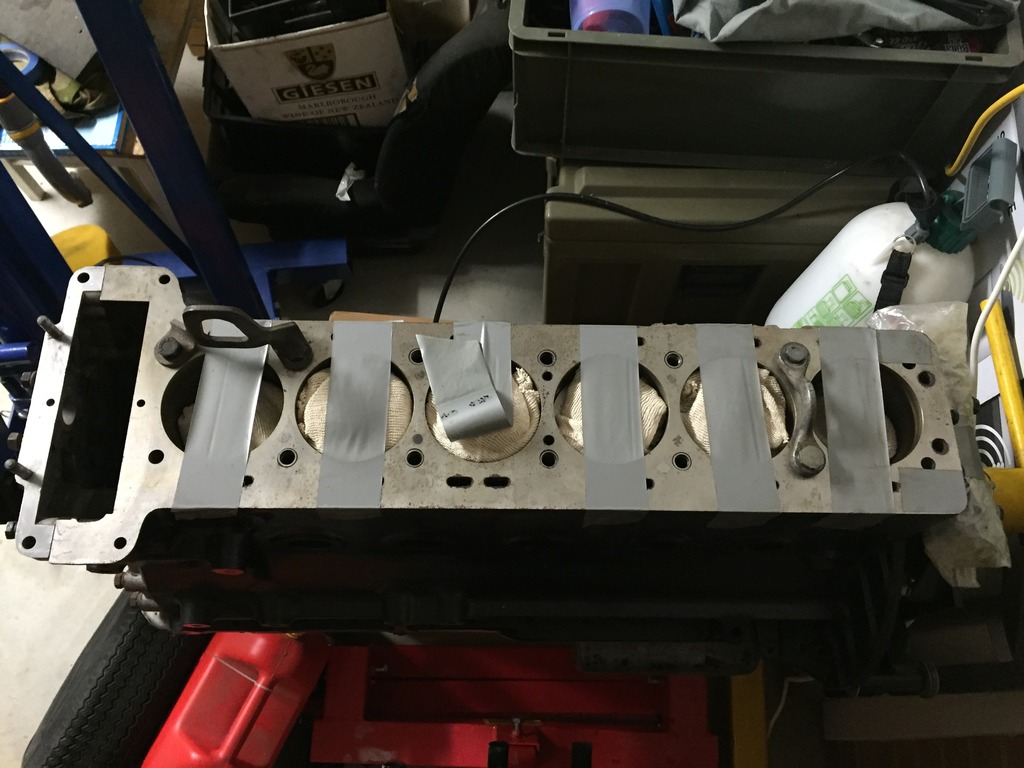

7L block.

Head removal-27a4c414-3a65-48f5-b893-f3c8324064b4_zpsvoo7ypqo.jpgHead removal-6869c226-57b8-4767-9097-486350bf5e4a_zpsqwxo57ln.jpg


Last edited by o1xjr; 08-20-2016 at 05:03 AM.
  #12
Old 08-19-2016, 05:23 PM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

Thanks Clarke good information. Jerry

  #13
Old 08-20-2016, 08:16 AM
Veteran Member
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 5,732
Received 1,945 Likes on 1,569 Posts
Default

Dodged a big bullet, huh, 90 mm or bigger!!!!


Bum tools are a ...... I've tossed more than a few...


Carl

  #14
Old 08-20-2016, 08:22 AM
Member
Thread Starter
Join Date: Apr 2016
Location: Lafayette, Louisiana
Posts: 97
Likes: 0
Received 2 Likes on 2 Posts
Default Head removal

Yep I need to go out and buy another compression tester this week. Again thanks Jerry
