1988 xjs oil cooler removel
#1
#2
The following users liked this post:
Greg in France (06-30-2019)
#3
Removing the oil cooler is not easy. I suggest you remove the radiator, the lower grille, the diagonal brace across the front of the rad stack and the bonnet. The you can get at the two large fixings that join the oil cooler pipes to the cooler. These will almost certainly be so corroded onto the cooler threads that undoing them will ruin the cooler, so be prepared to buy a new one. They are quite expensive. It think, repeat think, you can just get access to the cooler without removing the lower panels beneath the bumper and the bumper itself.

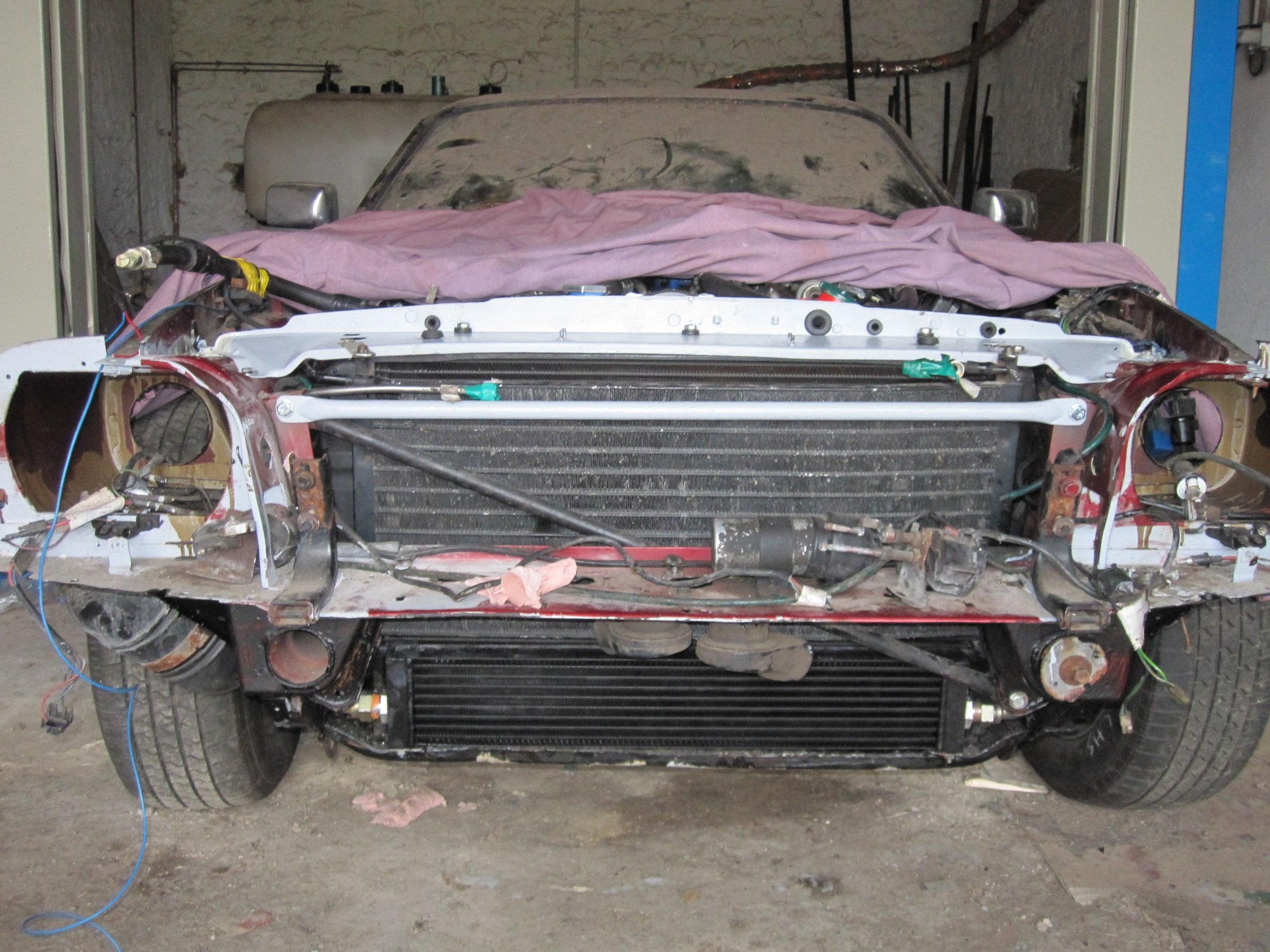

The cooler sits under the aircon condenser, which has to be carefully raised about an inch to get the cooler out once it is disconnected. The attached pics show you the setup pretty clearly. If you have a hydraulic shop available to put new fittings on the OEM hoses, then buying an aftermarket cooler will be much cheaper and it would not matter if it was a bit smaller; but you would have to build some sort of supporting cage to mount it on the original mountings and support the aircon radiator.
The following 2 users liked this post by Greg in France:
Grant Francis (06-30-2019),
orangeblossom (06-30-2019)
#4
Hi Shahar
As 'Greg' said and as I found out for myself, with Two dissimilar Metals being the Alloy Oil Cooler and the Mild Steel Nuts on those Pipes, those connections would almost certainly have Welded themselves together
Where trying to undo them could damage other Components and so you will almost certainly have to cut through the Metal Fittings in order to get the Old Oil Cooler off (which I have had to do Twice!)
This is not a Job for the 'Feint Hearted' and as I have already said before, once you have made a start there is No Going Back!
So ask yourself the Question, do I have the Mechanical Skills as well as the Grit and Determination, that will be required in order to see this Job through
Plus a Shedload of Cash for the Pipes and a New Oil Cooler, though you could save money on the Pipes/Tubes by having your local Hydraulic Shop make the Pipes up for you
Quite possibly one of the Hardest jobs for a DIY Mechanic to do on an XJS
A Total PIA from Start to Finish!
As 'Greg' said and as I found out for myself, with Two dissimilar Metals being the Alloy Oil Cooler and the Mild Steel Nuts on those Pipes, those connections would almost certainly have Welded themselves together
Where trying to undo them could damage other Components and so you will almost certainly have to cut through the Metal Fittings in order to get the Old Oil Cooler off (which I have had to do Twice!)
This is not a Job for the 'Feint Hearted' and as I have already said before, once you have made a start there is No Going Back!
So ask yourself the Question, do I have the Mechanical Skills as well as the Grit and Determination, that will be required in order to see this Job through
Plus a Shedload of Cash for the Pipes and a New Oil Cooler, though you could save money on the Pipes/Tubes by having your local Hydraulic Shop make the Pipes up for you
Quite possibly one of the Hardest jobs for a DIY Mechanic to do on an XJS
A Total PIA from Start to Finish!
#5
#6

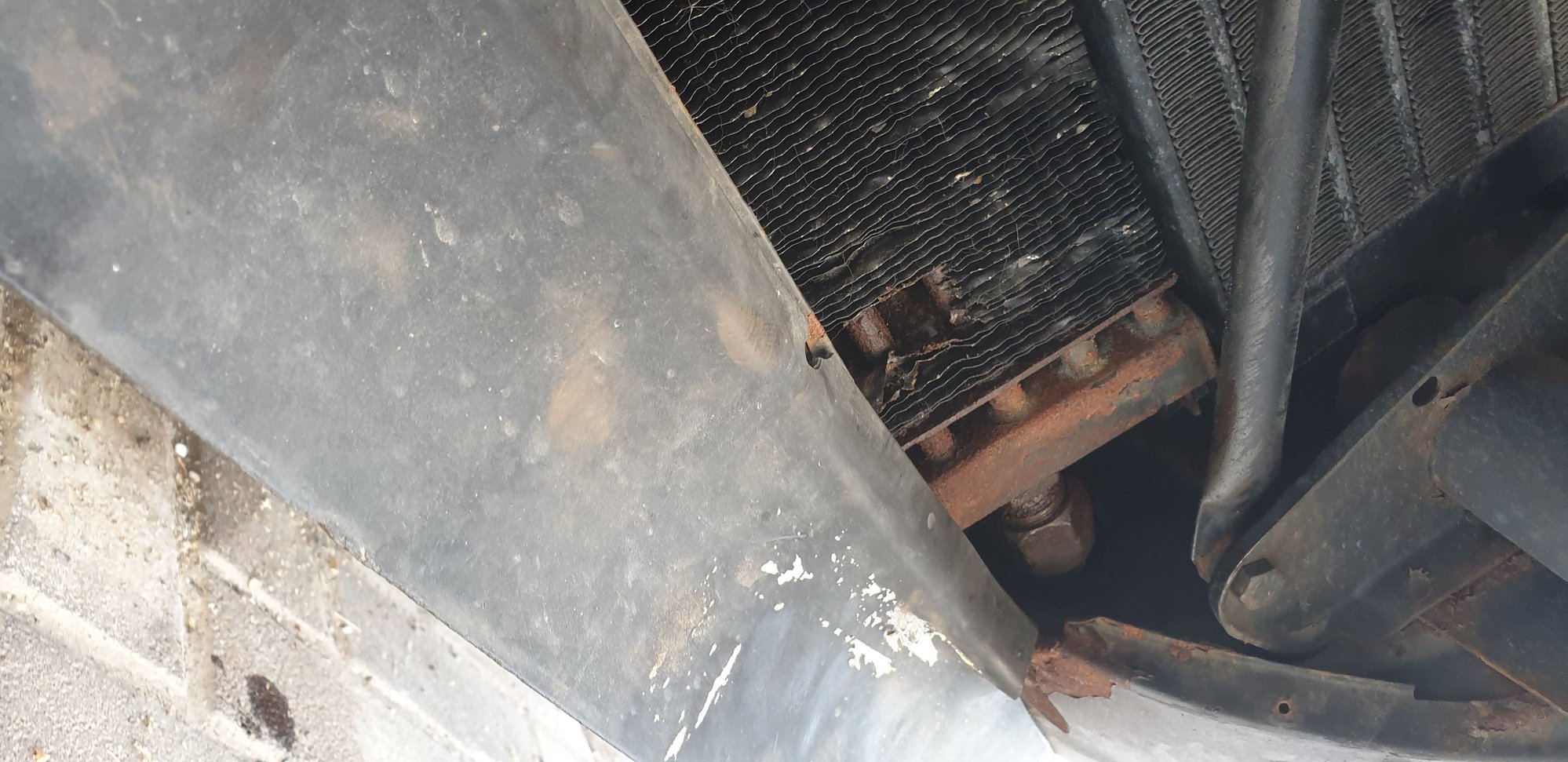

If the cooler is free of the oil pipes, then it is a matter of getting it free. To do this, raise the aircon condenser enough to free the top of the cooler, and then the cooler itself might be able to be pulled up and out. It might be just on pegs into the bracket that it stands on, OR, it might be bolted to it by nut onto a threaded stud going up through the bracket into the cooler. My second photo above shows the cooler secured by a nut onto stud coming down from the cooler through the chassis bracket. Whether this was my idea or was standard, I cannot remember.
#7
Trending Topics
#8
they are available from David Manners; but you must tell them if you have a "full flow" or "bypass" (also called "relief" flow) oil cooling system, as the cooler oil pipe threads are different. If your car is full flow then the oil cooler pipes come from and go back to the oil filter fitting.
If it is bypass, there is only one pipe from the filter and the other returns to the front RHS of the sump sandwich plate at the front bottom of the engine.
Full flow:
Jaguar Partno_CBC2692_OIL COOLER FULL FLOW XJ12 SER 3/XJS V12_David Manners Group with Alts
bypass:
Jaguar Partno_C43923_OIL COOLER ''RELIEF'' XJ12 SER 3/XJS V12_David Manners Group with Alts
If it is bypass, there is only one pipe from the filter and the other returns to the front RHS of the sump sandwich plate at the front bottom of the engine.
Full flow:
Jaguar Partno_CBC2692_OIL COOLER FULL FLOW XJ12 SER 3/XJS V12_David Manners Group with Alts
bypass:
Jaguar Partno_C43923_OIL COOLER ''RELIEF'' XJ12 SER 3/XJS V12_David Manners Group with Alts
#10
I explained how in my previous post....
If your car is full flow then the oil cooler pipes come from and go back to the oil filter fitting.
If it is bypass, there is only one pipe from the filter and the other returns to the front RHS of the sump sandwich plate at the front bottom of the engine
If your car is full flow then the oil cooler pipes come from and go back to the oil filter fitting.
If it is bypass, there is only one pipe from the filter and the other returns to the front RHS of the sump sandwich plate at the front bottom of the engine
#11
