XK8 / XKR ( X100 ) 1996 - 2006

XK8 major instrumentation problems


  #1
Old 05-06-2019, 12:02 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Default XK8 major instrumentation problems

2002 Jaguar XK8 Convertible

When cold start, there is an array of apparent electronic problems: No gauges work, check engine light on, an unpredictable number of idiot lights come on, no cruise control, and shifter will not come out of park. I can get the transmission out of park only by shifting it before the ignition sequence completes.

After about 30-40 miles (more when in cold weather) and the engine is good and warm, all will reset and work ok if the engine is turned off and back on. However, the check engine light remains on. It will eventually go out on its own later if warm enough. Had the car checked locally when warm and only the CE light was on and the code was for "instrument cluster fault". I don't think it is the cluster because everything works after the warm up/reset thing and the cruise control, oil pressure and volt gauge are not a part of the main instrument cluster control.

Is this possibly a faulty PCM?

Any ideas would be welcome as she sits in the garage...fine to drive but ones needs to know one's speed and gas tank level.

Thanks.


Last edited by GGG; 05-07-2019 at 03:00 AM. Reason: Remove BOLD from body text
  #2
Old 05-06-2019, 12:13 PM
Join Date: Apr 2012
Location: Summerville, South Carolina
Posts: 18,329
Received 2,860 Likes on 2,589 Posts
Default

How old is your battery and what is it's charge state? A weak battery will cause many weird and unpredictable lights/warnings/errors. Recommend taking to Advance Auto or Autozone and have them check the battery - typical battery life is 3-5 years although some have gone well beyond that.

As this is your first post - please stop by the New Member section and post an intro. in return, you will receive a warm welcome and some useful tips to navigate the forum.
https://www.jaguarforums.com/forum/n...-intro-must-5/

  #3
Old 05-06-2019, 12:35 PM
DavidYau's Avatar
Senior Member
Join Date: Jan 2019
Location: Bahrain
Posts: 606
Received 171 Likes on 123 Posts
Default Check battery first

+1 on the above. Highly unlikely all these things go bad at the same time.

Many weird things happen at start up if you have a bad battery. Thatís why it runs good when warmed up as youíre running on the alternator not the battery.

Get battery professionally checked at a shop.

A lot of X100 owners have a CTEK battery tender put on the car even if it is not driven just for a few days.

Mine is a daily driver but if Iím off for a weekend, I put a battery tender on.

The following users liked this post:
Brian K (05-06-2019)
  #4
Old 05-06-2019, 12:36 PM
Veteran Member
Join Date: Jan 2009
Location: Raleigh, NC
Posts: 9,842
Received 2,088 Likes on 1,584 Posts
Default

^^ What they said. Start with your battery condition. These cars require fresh, strong batteries. If your car has been sitting for a long period without being on a battery tender, chances are good that your battery is dying and is the primary source of your current issues....

  #5
Old 05-06-2019, 12:55 PM
Veteran Member
Join Date: Nov 2013
Location: Malvern, England
Posts: 1,031
Received 277 Likes on 208 Posts
Default

Yep the guys above have got it right. These Jags are susceptible to fault displays when the batteries get low. Experienced the same myself only this week. To read about my problem click me

  #6
Old 05-06-2019, 02:22 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Default Thanks friends

I will go ahead a get a new battery. Could be it. Had one garage tell me it was the instrument cluster but I'm not sure those guys know much other than they saw my gauges laying dead and had their aha moment. However, some of the other symptoms are not related to the main cluster so I doubt what they say.

I suppose even the check engine light and the fact that it threw an instrument cluster fault code might still be the battery...maybe not. I may have another problem but a new battery couldn't hurt. The voltage gauge being in the middle showing an OK charge is not to be believed?

Have had 3 mechanics "look" at it and offer their opinions. Not one mentioned the battery.

Will advise what a new battery accomplishes.

thanks.

  #7
Old 05-06-2019, 02:54 PM
fmertz's Avatar
Veteran Member
Join Date: Nov 2014
Location: Eastern USA
Posts: 1,698
Received 782 Likes on 609 Posts
Default

Originally Posted by Brian K View Post
2002 Jaguar XK8 Convertible

CE light was on and the code was for "instrument cluster fault".
If the problem persists, make sure you capture any actual code to go with that text. Codes are easy to search by and can reveal a wealth of prior cases.

Separately, keep in mind that the instrument cluster is where Jaguar decided to host the circuitry responsible for bridging the separate data networks (CAN, SCP and ISO-9141). There have been a number of TSBs over the years related to (fixable) failed solder joints on the IC board (check jagrepair.com), and resulting in bus errors. As an example, the speedometer is getting road speed from a message on the CAN bus. There is no speedo cable to the trans anymore. It looks like somehow that road speed message (as measured by the ABS module) is no longer reaching the IC.

Best of luck, keep us posted.

  #8
Old 05-06-2019, 03:03 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Default XK8 major instrumentation problems

Thanks FM,

I will have it checked again after installing a new battery tomorrow, and if it is still a problem, record the details of the code check.

I also saw the tech bulletin regarding the bad solder. While having my brakes replaced, I had them remove the cluster and check for that. They said mine looked fine and that the specific TSB did not apply to my car anyway (I think the specific solder TSB was for a range of VIN #s).

The following users liked this post:
motorcarman (05-06-2019)
  #9
Old 05-06-2019, 03:23 PM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,870
Received 4,126 Likes on 2,703 Posts
Default

I was going to say that the VIN is out of range for this fault but....................

The faults are similar to the TSB list of faults.

I performed dozens of repairs and replacements when the TSB was issued. (413-S484am2 INSTPK CAN failure.pdf)

bob

  #10
Old 05-07-2019, 07:30 AM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,492
Received 2,721 Likes on 2,014 Posts
Default

Originally Posted by Brian K View Post
2002 Jaguar XK8 Convertible

I don't think it is the cluster because everything works after the warm up/reset thing and the cruise control, oil pressure and volt gauge are not a part of the main instrument cluster control.
I agree with all of the advice here. I just want to add the the oil pressure and voltage gauges ARE totally controlled through connections from the main instrument cluster.

  #11
Old 05-07-2019, 01:49 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Unhappy still have all the issues

Hi all,

Well, just had a $200 platinum battery installed to rule out a battery problem. Unfortunately nothing changed. I suspected as much since the date sticker on the old battery was February 2018.

It has gotten hot here in the last few days. Since I haven't been driving it much due to all of the non-working issues, I had not yet tried the A/C. Add that to the list. Doesn't work either.

Am I looking at a bad ECM?

  #12
Old 05-07-2019, 08:10 PM
DavidYau's Avatar
Senior Member
Join Date: Jan 2019
Location: Bahrain
Posts: 606
Received 171 Likes on 123 Posts
Default Instrument Cluster?

You previously mentioned that there was a code for the instrument cluster.

Check out this ongoing thread for ideas

https://www.jaguarforums.com/forum/x...r-dead-217466/

  #13
Old 05-08-2019, 02:56 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Default still unpredictable electronics

Hello All,

I do appreciate all of your comments very much as I struggle how to get Jessie back on the road.

I have reported to you that it is a cold start problem and yes, that is when this stuff occurs. However, I did not mention that it sometimes works ok in "environmental heat". I just wasn't sure enough to mention.

It is now an interesting fact that was confirmed yesterday. Here in Tennessee, the temperature is around 85 degrees F this week. Yesterday, after getting the new battery at lunch, nothing was working still. It sat in the parking lot of my employer all afternoon. I got in the car to go home at 5:30PM, cranked her up, and all electronics worked.

Does that make sense to any of you experts?

Normally:
  • No gauges
  • No cruise control
  • ABS, red light, yellow light, and "brake" indicators on.
  • Blank message box, i.e., no odometer.
  • Will not come out of park.
  • No air conditioning.
<sigh>

  #14
Old 05-09-2019, 04:10 AM
Veteran Member
Join Date: Nov 2013
Location: Malvern, England
Posts: 1,031
Received 277 Likes on 208 Posts
Default

If I were you id find out how the instrument cluster is earthed. Get a bit of wire and crudely bypass it. That is attach one end to the body work you know is a good earth and apply the other end to the earth of the instrument panel. I bet that cures it. My reasoning is that all those instruments only have one thing in common. That is the earth. Once you know what the problem is you can then sort out a better earth, if thats what it is. I would be very surprised if thats not what it is.


Dont forget to tell us how you get on wont you?


  #15
Old 05-09-2019, 05:12 PM
Junior Member
Thread Starter
Join Date: May 2019
Location: Mt Juliet, TN
Posts: 7
Received 1 Like on 1 Post
Default The ongoing saga of Jessie the Jag

You guys asked to be kept informed on the status of Jessie.

I finally was able to get an appointment today with a guy who is referred to in the Tennessee area as Jaguar Joe. No kidding. He is supposedly the man for older Jaguars. I hope it is because of his expertise and not because his is the only game in town. Could be either. Not a lot of XK8's gracing Nashville streets.

Joe says he has seen this before but not to the crazy unpredictable degree he saw as he restarted the engine about 10 different times. Each time, things got better or worse. Once, we even saw the A/C blow cold.

He does not think it is a ground problem (an earth problem as you gents say). He has a diagnostic plan and swears he will get to the bottom of it. Fingers crossed.

A couple of you experts asked for the actual codes it is throwing when checked. The two are...P1638 and P1111. Instrument and/or ECU related.


  #16
Old 05-10-2019, 07:48 AM
fmertz's Avatar
Veteran Member
Join Date: Nov 2014
Location: Eastern USA
Posts: 1,698
Received 782 Likes on 609 Posts
Default

Originally Posted by Brian K View Post

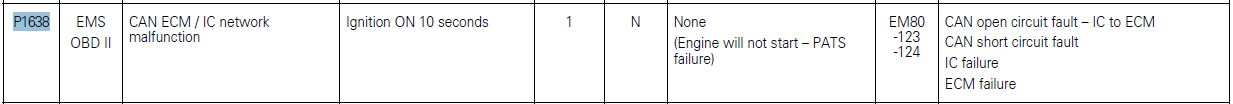

P1638
