Anyone coulp tell me where is located the BCM module on th 2017 F-Pace S Model?
Thanks!



Welcome to the forums F-Pace33,

On my 2017 25t, it's behind the LH Cowl Trim and I'd expect this to be the same on other variants:




It has 5 connectors and is secured by 2 nuts:



Other than admiring it, there's not much can be done without JLR Pathfinder diagnostics.

Graham



thanks,. Will try to check the contact connectors defore going to the dealer.



What is the problem with the vehicle?

Graham

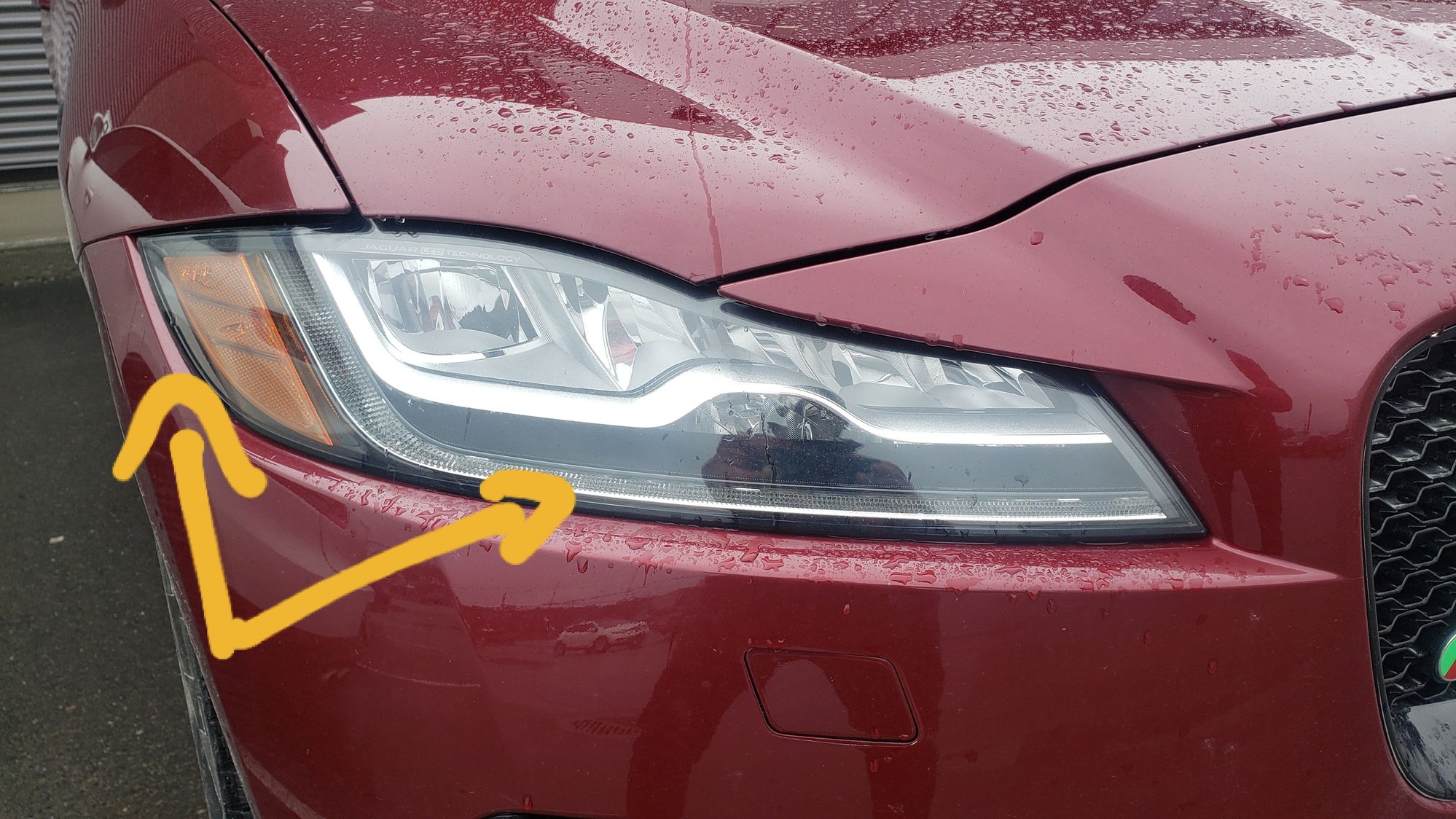

The headlamp,( adaptative led light) passenger side , the day light, ( long stript led ) first was intermittent , now seems permanently off , I have two DTC codes B103D-87 and B1D01-92, I have connected to the driver side and working good, Ther is a different voltage from two pins in each connector socket compare to the driver side. I will have to continue the trouble shooting or bring it to the dealer $$ Thanks for your help!



You have done the same troubleshooting sequence I'd have tried which is headlamp substitution L to R to check and eliminate component fault.

The Workshop Manual DTC listing is not very helpful for the two codes. Here's the extract:



Unfortunately, when it comes to diagnostic equipment, the old Jaguar SDD doesn't cover F-PACE and JLR Pathfinder is required.

Graham



Hello, you are wright, I've tried to check for any loose connectors, but, it's too complicated to regonize any wire and read voltage,,, next step Garage



Make sure they eliminate harness faults before jumping to headlamp replacement. Your L to R test substitution strongly suggests internal failure is not the problem.

Graham
