Jaguar Mk2 340 Restoration to date

  #1
Old 12-13-2016, 02:03 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default Jaguar Mk2 340 Restoration to date

I thought that I might post some details of my on going restoration of my1967 340.

I got the car in September 2015, it was found in a barn on a deceased estate with chickens on the roof ! I had always wanted a Mk2 from the age of 17, and nearly bought 2 back then for 1000 but was talked out of it as there was too much work to do on them.

I had kept looking on and off over the years, and last year by chance was talking to a client who was an 'antiques finder' and said to him "find me a cheap Mk2" An hour later he said he had found one on a deceased estate.
This turned out to be a 2.4 which wasn't my preferred option, but a couple of wees later he called me to say that they had found another one which was a 3.4, and which one would I like.

I couldn't see the car as the family wanted privacy, so all the cars would go to a dealer, but I could take it unseen, and it was at the right price, so I bought the car unseen !

It took nearly 3 months for everything to get sorted before the car actually arrived one evening, it had last been on the road in 2000.

I then started the process off assessment and stripping the car bit by bit, my workshop isn't big, so I simply worked my way around the car.

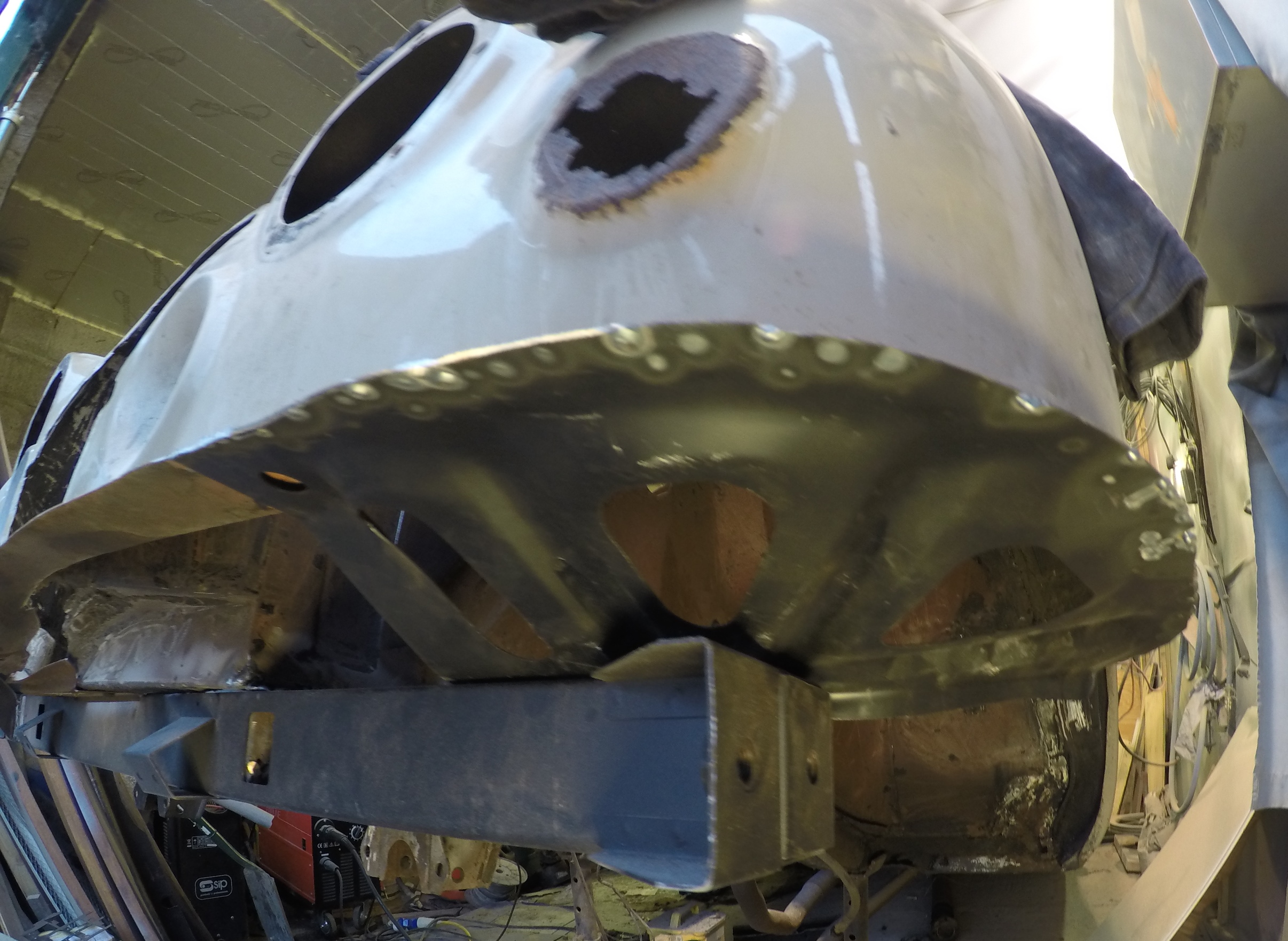

I have in the last 12 months replaced 1.2 Sq Mtrs of sheet steel and several repair panels, and now the body is almost finished and I am stripping back to bare metal, treating every inch with rust protector and coating with epoxy primer as I go.

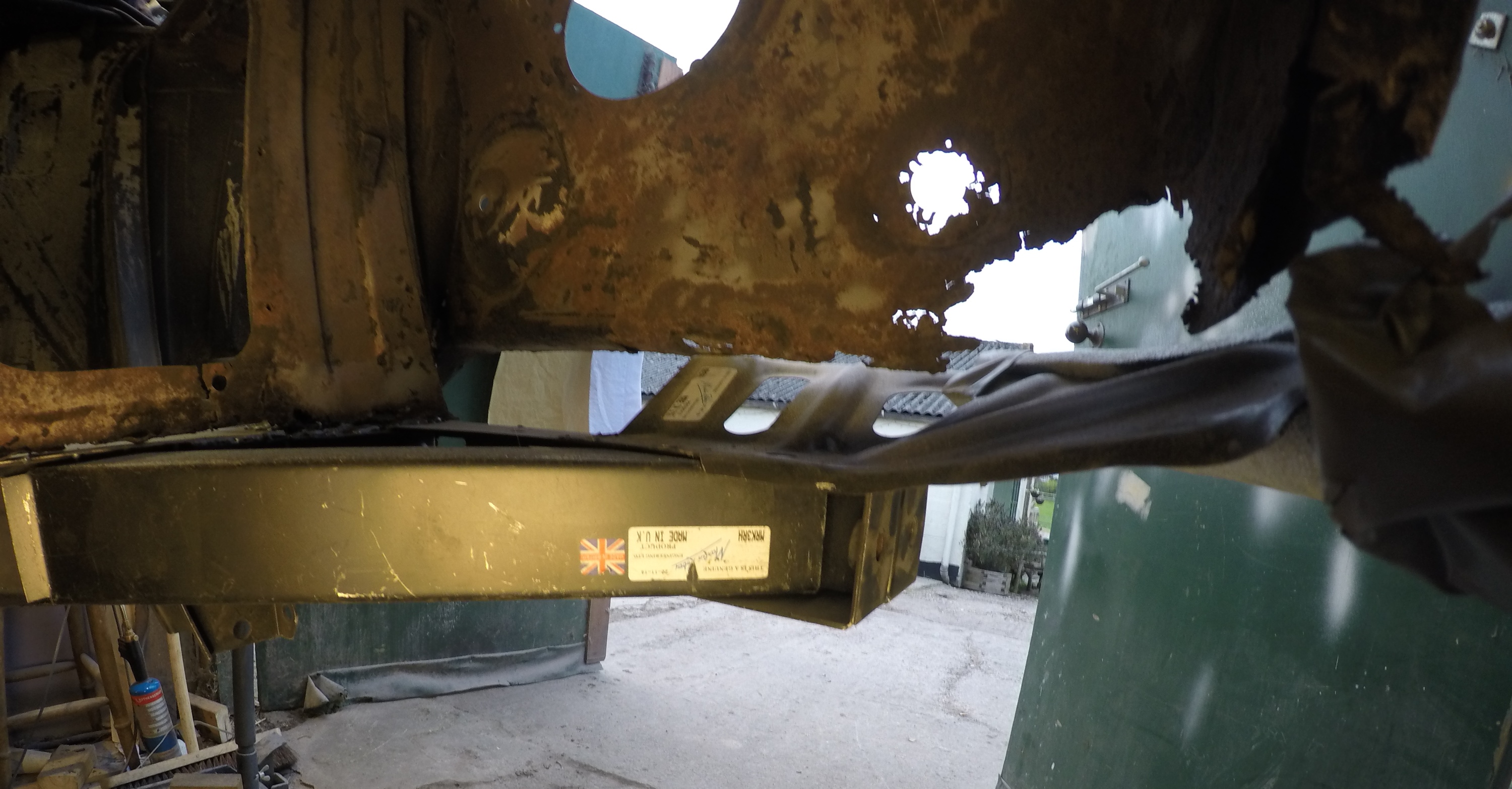

Oddly the drivers side was worse than the passenger side, with rust in the wheel arches, the front cross member, crows feet, chassis rail and numerous other places as I discovered as I removed underseal to exposed more of the metal below.

Attached Thumbnails Jaguar Mk2 340 Restoration to date-gopr0333.jpg   Jaguar Mk2 340 Restoration to date-gopr0339.jpg   Jaguar Mk2 340 Restoration to date-gopr0358.jpg   Jaguar Mk2 340 Restoration to date-gopr0361.jpg   Jaguar Mk2 340 Restoration to date-gopr0371.jpg

Jaguar Mk2 340 Restoration to date-gopr0394.jpg   Jaguar Mk2 340 Restoration to date-gopr0411.jpg   Jaguar Mk2 340 Restoration to date-gopr0416.jpg   Jaguar Mk2 340 Restoration to date-gopr0421.jpg   Jaguar Mk2 340 Restoration to date-gopr0439.jpg

The Following 2 Users Say Thank You to TilleyJon For This Useful Post:
Don B (05-17-2018), SNG Barratt USA (12-14-2016)
  #2
Old 12-13-2016, 08:43 AM
Senior Member
Join Date: Oct 2015
Location: San Antonio
Posts: 700
Thanked 79 Times in 70 Posts
Default

Wow- making some nice progress. Looks like we are both in about the same place! I heard SNG Barratt is putting up a new building and naming it in our honor.

The Following 2 Users Say Thank You to csbush For This Useful Post:
SNG Barratt USA (12-14-2016), TilleyJon (12-13-2016)
  #3
Old 12-13-2016, 01:16 PM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

I hear Martin Robey may be extending too, I will post more stuff shortly, I have a bunch more pictures.

The Following User Says Thank You to TilleyJon For This Useful Post:
csbush (12-13-2016)
  #4
Old 12-13-2016, 01:23 PM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

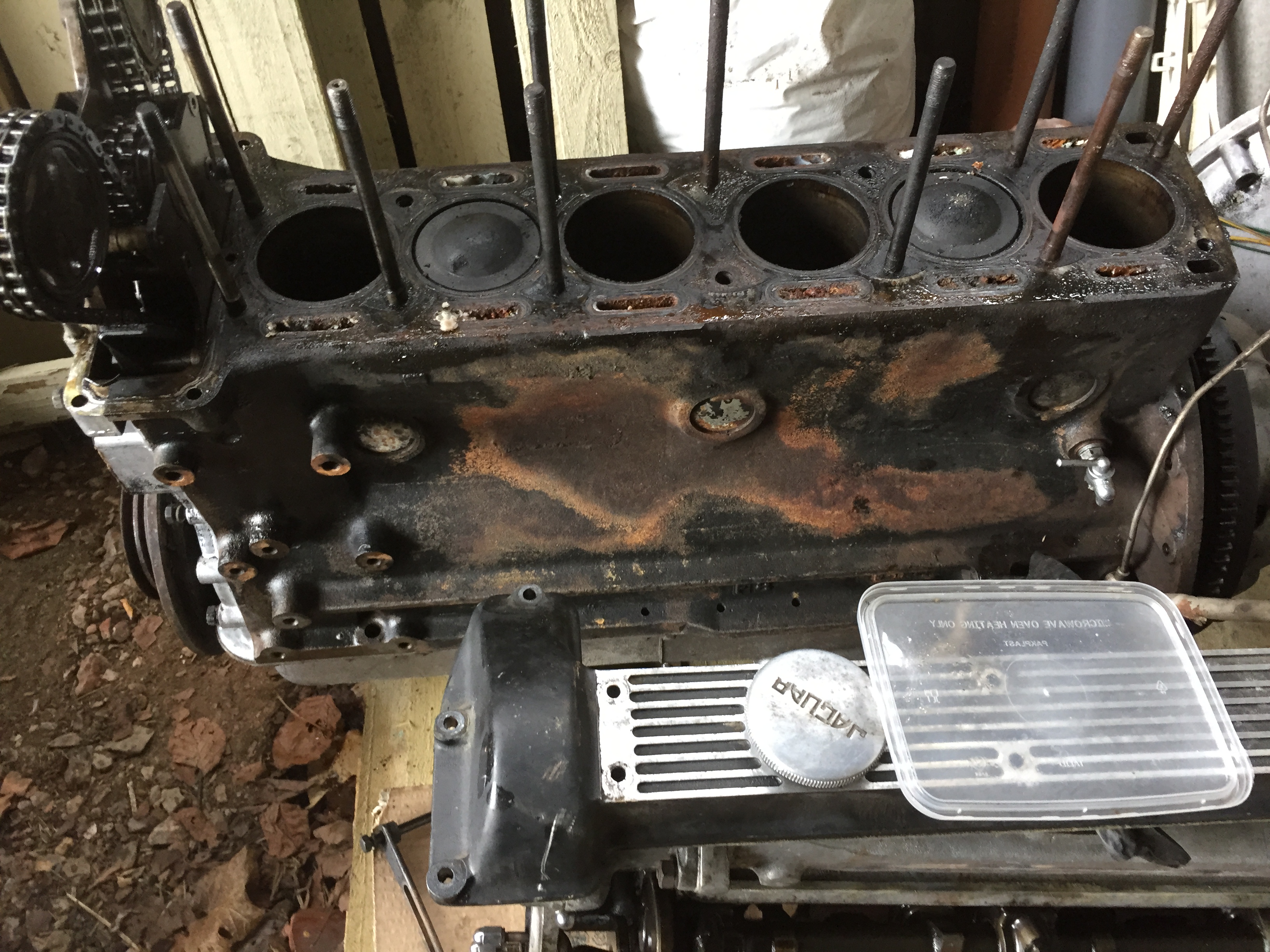

The engine was pretty well seized, so I started stripping it down, by the end of this I had :-

Rebored block
New Pistons
Regrind Crank and balanced
Oil seal conversion
New valve guides
New valves and springs
New valve seats
Flywheel lightened and balanced
Camshaft polished
All new bearings
Uprated oil pump

the list went on .....



Head before

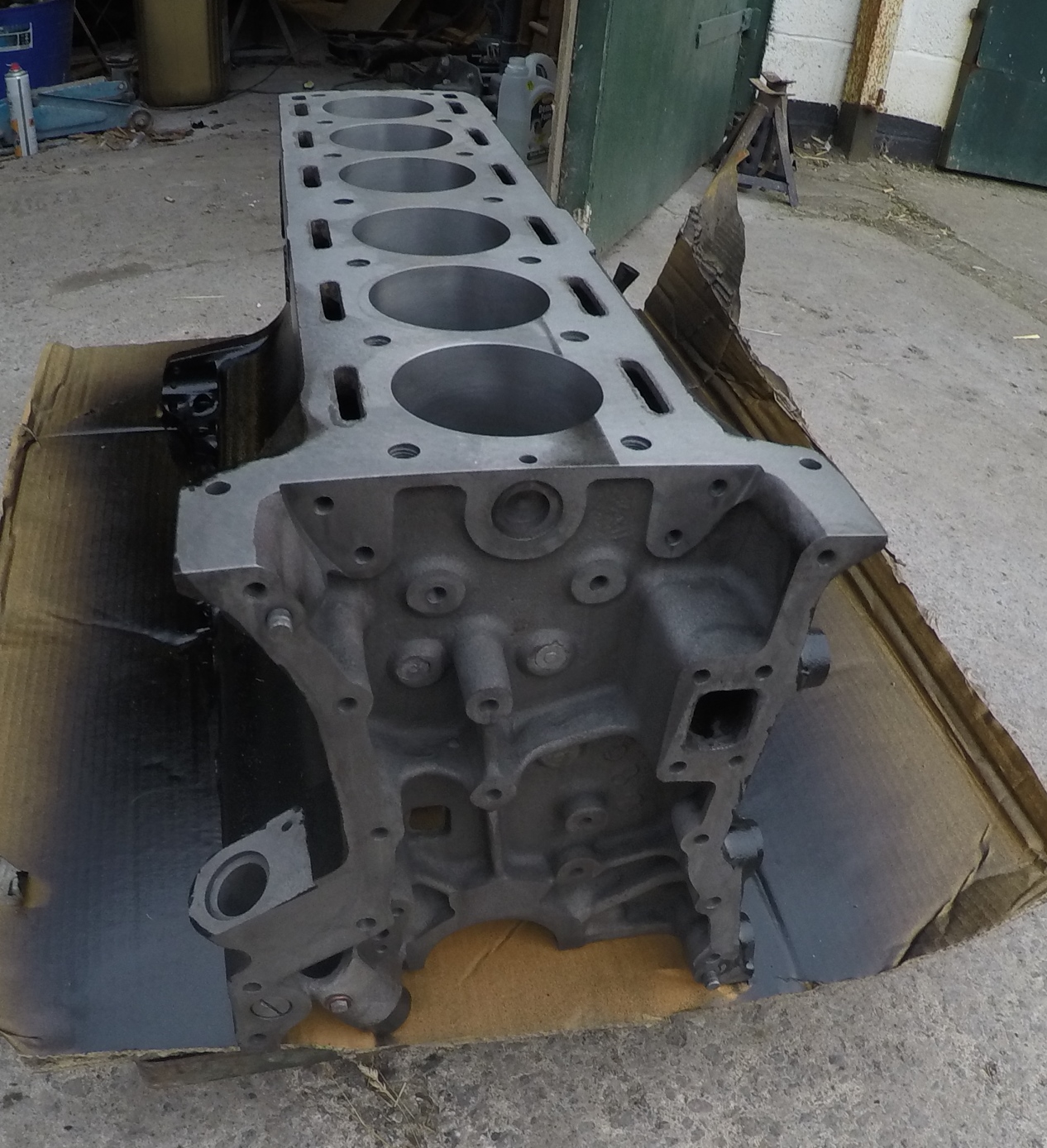

Block after machining




Oil seal conversion

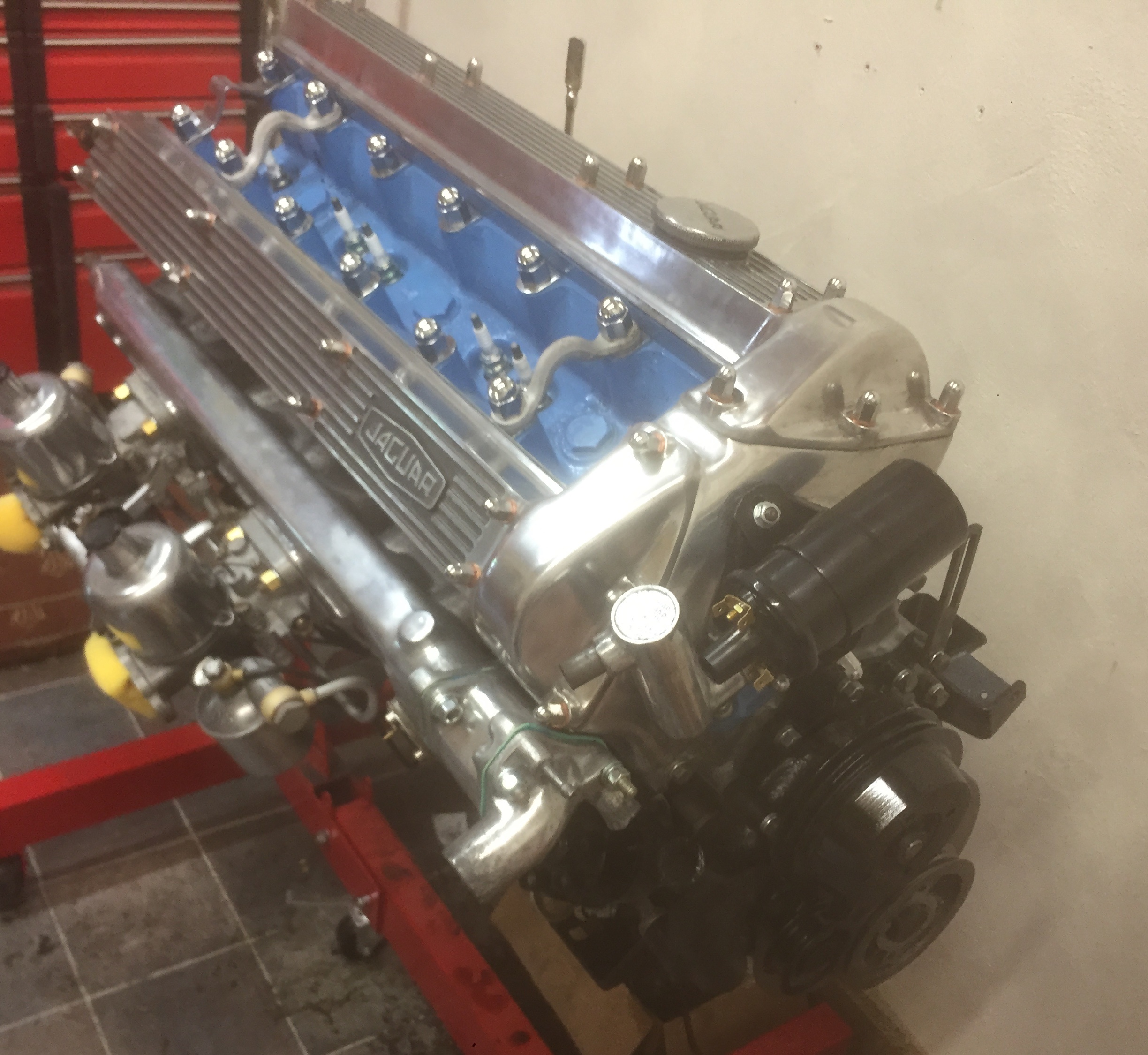

Nearly there




Getting closer

I have recently fitted a spin on oil filter conversion, alternator and belt now on, radiator is being re-cored with a modern core I will post pictures of that when I have it back.
_________________

Attached Thumbnails Jaguar Mk2 340 Restoration to date-gopr0406.jpg   Jaguar Mk2 340 Restoration to date-gopr0516.jpg   Jaguar Mk2 340 Restoration to date-img_0887.jpg   Jaguar Mk2 340 Restoration to date-img_0890.jpg   Jaguar Mk2 340 Restoration to date-img_1125.jpg


Last edited by TilleyJon; 12-13-2016 at 01:42 PM.
The Following User Says Thank You to TilleyJon For This Useful Post:
Don B (05-17-2018)
  #5
Old 12-13-2016, 02:17 PM
Senior Member
Join Date: Oct 2015
Location: San Antonio
Posts: 700
Thanked 79 Times in 70 Posts
Default

That is a beautiful engine Nice work!

The Following User Says Thank You to csbush For This Useful Post:
TilleyJon (12-15-2016)
  #6
Old 12-13-2016, 04:58 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 7,194
Thanked 1,521 Times in 1,270 Posts
Default

Check that lower timing cover very carefully where the aluminium of the coolant passage into the block butts up to the block, (there is a gasket separating the two, of course). Corrosion can occur here and rot away the aluminium such that there is a danger of coolant passing the gasket and getting into the timing chest. I had this when I rebuilt an XJ6 engine in the early 90s. If you find another one, you'll have to match it to the top face of the block to make sure there is no lip. A very light machining pass on the block face will suffice.

Edit
Sorry, I see you have already assembled the engine !!

The Following User Says Thank You to Fraser Mitchell For This Useful Post:
TilleyJon (12-14-2016)
  #7
Old 12-14-2016, 02:16 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Good point for others Fraser, the lower cover on mine was in very good condition, the area that did have issues with corrosion was the waterways between the block and head.
If you look at the pictures you will see where these are nearly blocked, when the head and block were cleaned, it was apparent that these would require tig welding and were then cleaned and skimmed with the head.
The waterways at this point were corroded past the gasket line which would have caused major issues if not addressed.

The machine work, pistons, valves, seats and oil seal conversion kit came to a total of 3500 alone, had a great local guy who builds race engines do the work, he knows the Jag engine well as he does these for race spec to, he did a first class job, I then rebuilt the engine.

I will get the radiator back from re-coring shortly, I will back a frame for the engine and trans and then test run the engine.

  #8
Old 12-14-2016, 09:17 AM
lickahotskillet's Avatar
Senior Member
Join Date: Oct 2012
Location: Ohio
Posts: 588
Thanked 63 Times in 49 Posts
Default

TillyJon,
Love the work, passion, & shear guts to tackle this one. Top of the shell looks sweet from the start.
Any chance you'll fire the engine before install?

The Following User Says Thank You to lickahotskillet For This Useful Post:
TilleyJon (12-15-2016)
  #9
Old 12-14-2016, 12:46 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 7,194
Thanked 1,521 Times in 1,270 Posts
Default

Tilleyjon

If there is one car I once had, and would have again, it is the Mark 2 Jaguar. The style is sublime and they go pretty good too ! Trouble is I have no garage to put one in;maybe one day when we (wife and I) downsize to another house. It'll have to have a large garage !

  #10
Old 12-15-2016, 02:37 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Originally Posted by lickahotskillet View Post
TillyJon,
Love the work, passion, & shear guts to tackle this one. Top of the shell looks sweet from the start.
Any chance you'll fire the engine before install?

Thank you, it has been a labour of love I have to say ! The worst part was some bodged repairs done in the past, I must say they were much better with the filler than the welding !!!!

I will fire the engine up once I have made a jig and have the radiator back from being re-cored.
I want to run it up before I install to make sure everything is in set up properly.

I got a pair of smooth cam covers shipped from Jose which I am cleaning up and will polish to replace the ribbed covers. I just prefer the look, even though I stripped and polished the ribbed covers they look pretty good, but not as good as smooth covers.

I will post more pictures soon for anyone interested.

  #11
Old 12-18-2016, 05:16 PM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

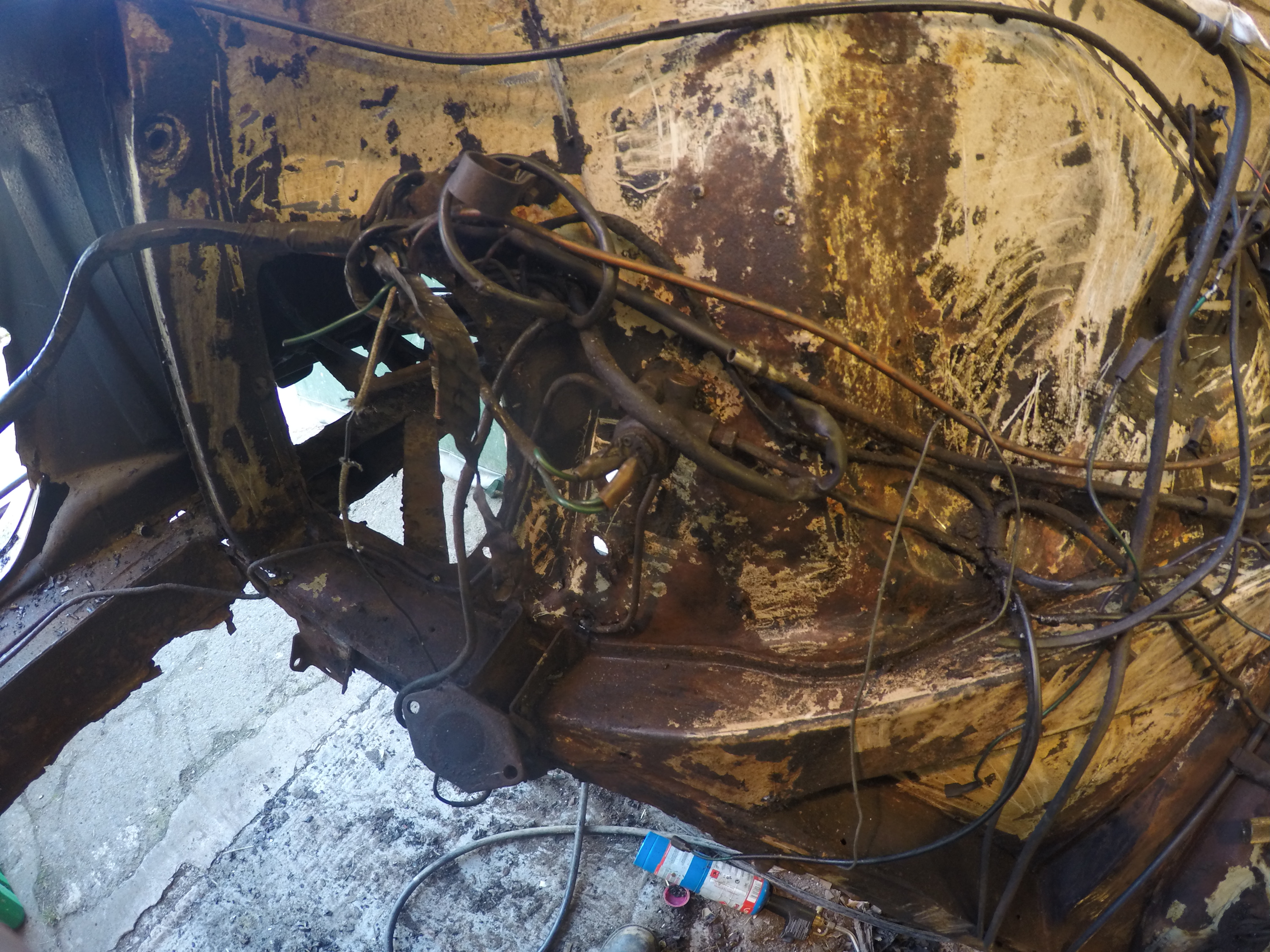

Engine bay was covered in some sort of underseal gunk but not as thick !

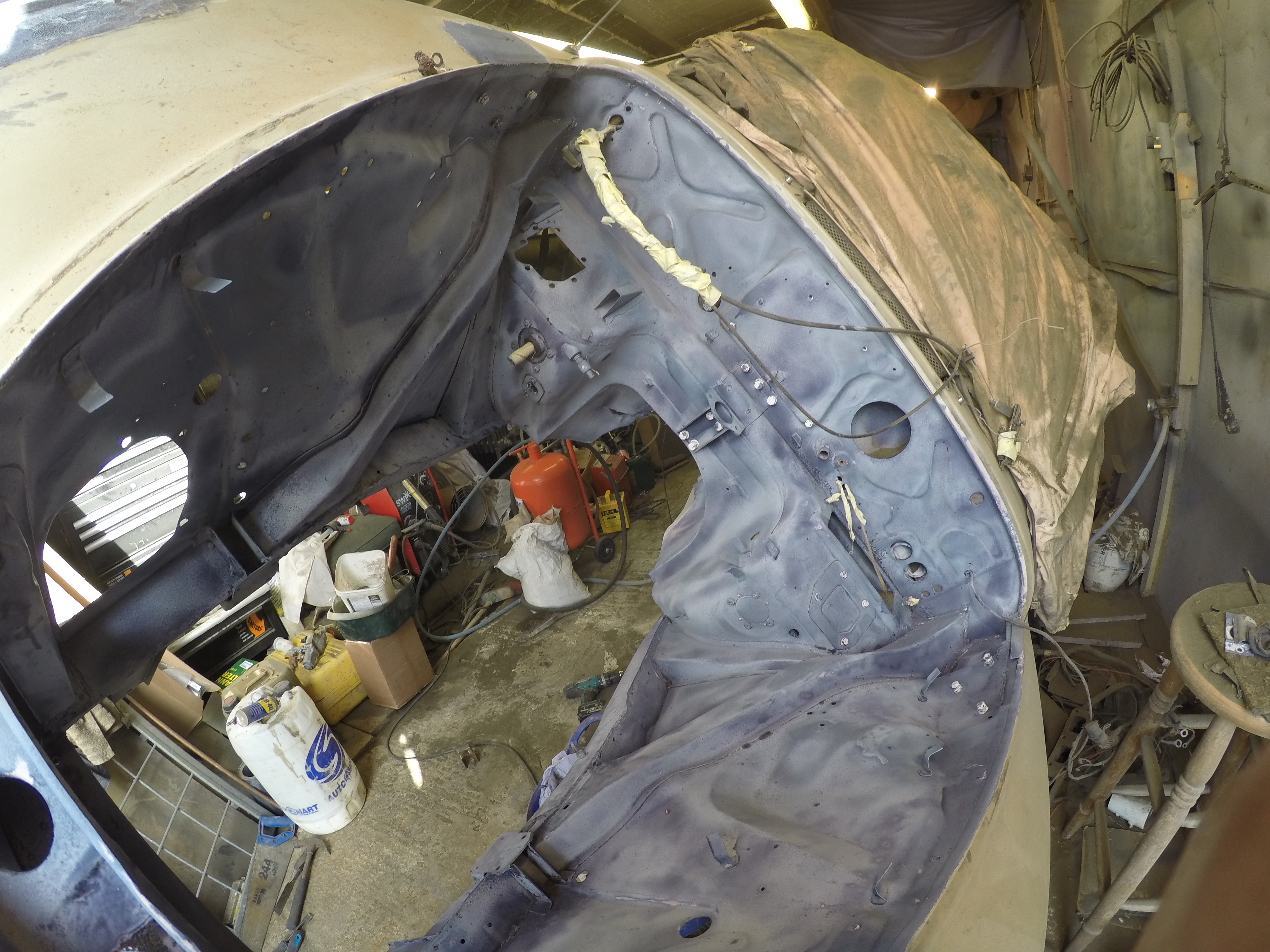

After scrubbing scraping, blasting, treating with rust converter and eventually into epoxy primer.

Attached Thumbnails Jaguar Mk2 340 Restoration to date-gopr0385.jpg   Jaguar Mk2 340 Restoration to date-gopr0387.jpg   Jaguar Mk2 340 Restoration to date-gopr0518.jpg   Jaguar Mk2 340 Restoration to date-gopr0520.jpg   Jaguar Mk2 340 Restoration to date-gopr0525.jpg

Jaguar Mk2 340 Restoration to date-gopr0528.jpg   Jaguar Mk2 340 Restoration to date-gopr0531.jpg

Last edited by TilleyJon; 12-18-2016 at 05:34 PM.
The Following User Says Thank You to TilleyJon For This Useful Post:
Don B (05-17-2018)
  #12
Old 12-22-2016, 12:16 PM
Senior Member
Join Date: Jan 2013
Location: Chester UK
Posts: 727
Thanked 72 Times in 58 Posts
Default

Nice job!

  #13
Old 12-22-2016, 05:23 PM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Thank you,

picked up the radiator from being re-cored will post pics tomorrow.

  #14
Old 12-22-2016, 05:41 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 7,194
Thanked 1,521 Times in 1,270 Posts
Default

The stuff you found in the engine bay that seemed like underseal would be body schutz, and is commonly used to cut down or eliminate drumming noise from panels. The main difference is it is formulated so that paint can be applied on top of it, unlike normal underseal. Having said that, the two are very similar.

https://www.hemmings.com/magazine/hm...z/1484991.html

  #15
Old 12-23-2016, 01:53 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Fraser,
I don't think it was Shultz, it was way too soft, it was over the paint, was tar like but soft not hard. It was like it was a build up of oil and dirt but more sticky, pretty uniform cover and everywhere.

It needed more scrubbing than scraping off and was about 2mm thick, it may have been a black rust proofing wax possibly ?

  #16
Old 12-23-2016, 02:46 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Here's the pics of the old and now re-cored radiator, the old core had 27 rows, the new one has 42 if I've counted correctly !

Simon at Advanced Cooling did a great job

Attached Thumbnails Jaguar Mk2 340 Restoration to date-gopr0383.jpg   Jaguar Mk2 340 Restoration to date-img_1309.jpg   Jaguar Mk2 340 Restoration to date-img_1310.jpg
The Following User Says Thank You to TilleyJon For This Useful Post:
Don B (05-17-2018)
  #17
Old 12-23-2016, 09:14 AM
Senior Member
Join Date: Oct 2015
Location: San Antonio
Posts: 700
Thanked 79 Times in 70 Posts
Default

Nice- Nothing like a newly rebuilt part to put a smile on your face.

  #18
Old 12-23-2016, 05:06 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 7,194
Thanked 1,521 Times in 1,270 Posts
Default

Your rebuild brings back many memories for me. My rebuild of a Mark 2 took seven years and I got married in Year 1 ! And I'm still married 36 years later and driving another Jaguar, ( a few other cars in the meanwhile of course).

My rebuild was done around a bare shell found in deepest Wales plus another car transferred into it.

  #19
Old 12-24-2016, 02:10 AM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

Originally Posted by Fraser Mitchell View Post
Your rebuild brings back many memories for me. My rebuild of a Mark 2 took seven years and I got married in Year 1 ! And I'm still married 36 years later and driving another Jaguar, ( a few other cars in the meanwhile of course).

My rebuild was done around a bare shell found in deepest Wales plus another car transferred into it.

Fraser, so what your saying was that you were having an affair before you even got married ! You're lovely wife needs a knighthood.

I'm hoping to have the girl running by next year, and completed if funds allow ! That maybe a dream, but I have to have a goal. My old girl has had 35 years more rust, I wish I had bought the two Mk2's i was offered 35 years ago when I first wanted one of these cars.

  #20
Old 12-27-2016, 04:05 PM
Veteran Member
Thread Starter
Join Date: Jun 2016
Location: Bath UK
Posts: 1,524
Thanked 389 Times in 328 Posts
Default

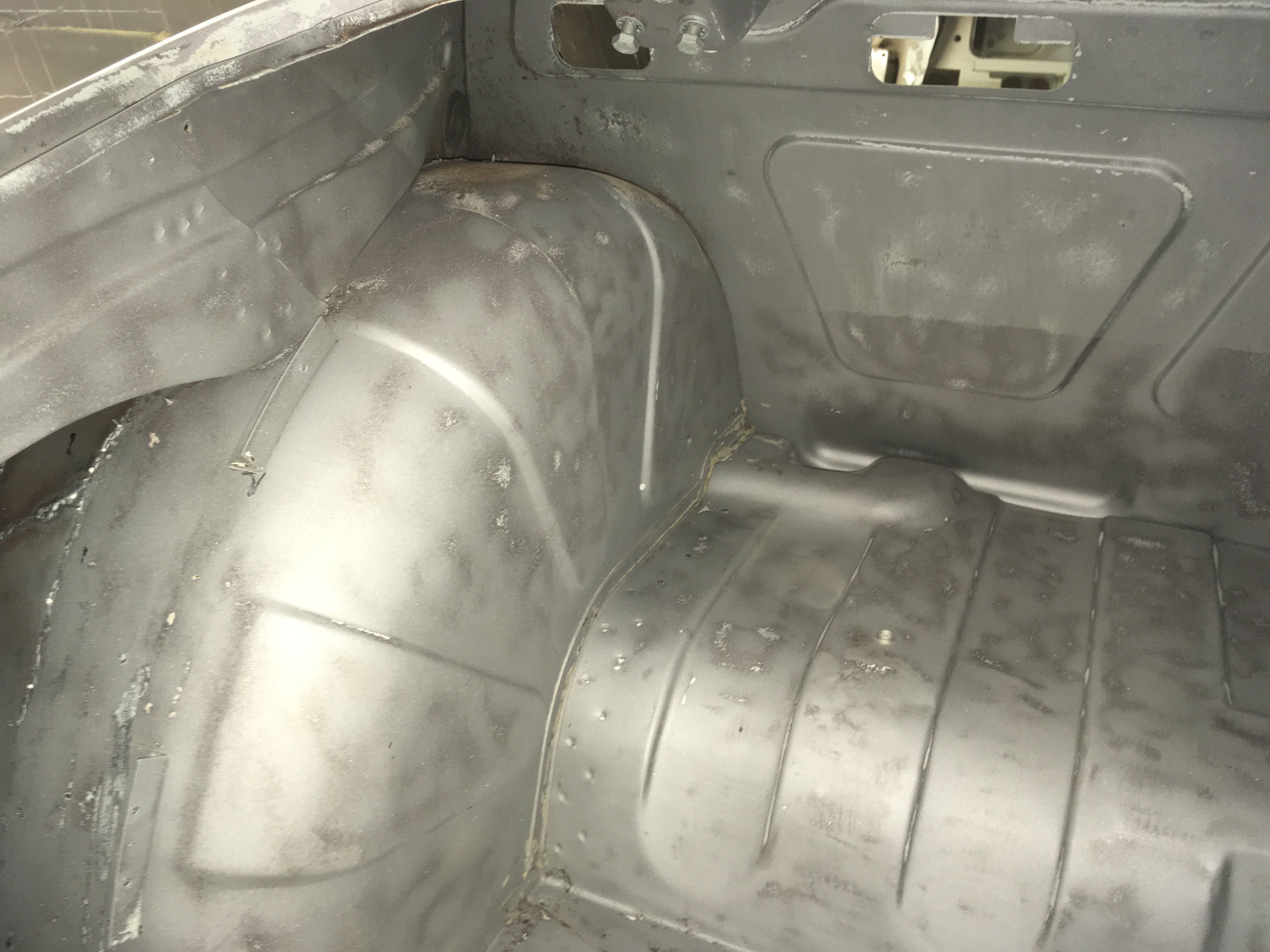

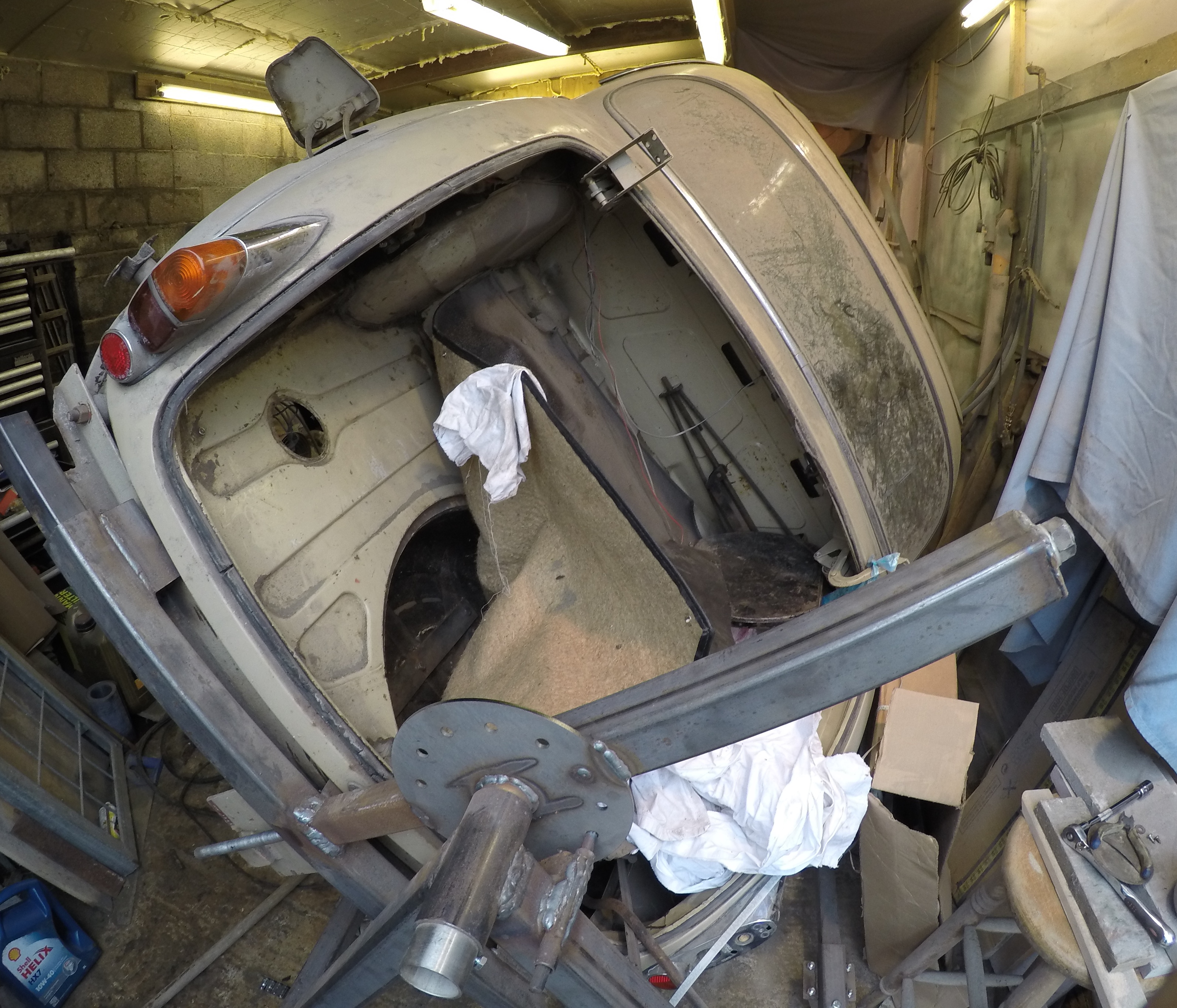

Managed to get some time removing paint and underseal from inside the boot area I think someone thought that the underseal would stop the spare wheel vibrating !!

Will treat the bare metal with a phosphating solution clean with a salt remover before applying zinc rich epoxy primer.

Attached Thumbnails Jaguar Mk2 340 Restoration to date-gopr0565.jpg   Jaguar Mk2 340 Restoration to date-img_1314.jpg   Jaguar Mk2 340 Restoration to date-img_1317.jpg   Jaguar Mk2 340 Restoration to date-img_1320.jpg   Jaguar Mk2 340 Restoration to date-img_1321.jpg

Jaguar Mk2 340 Restoration to date-img_1325.jpg

Last edited by TilleyJon; 12-28-2016 at 02:37 AM.
The Following User Says Thank You to TilleyJon For This Useful Post:
Don B (05-17-2018)
