Inspired by the work of a few other Carplay and infotainment upgrades posted here, I decided to tackle it myself.

Equipment used:

• Ebay or amazon portable Carplay, I chose the Essgoo TS0001 10.26 inch screen, I bought it on ebay for $140; you may probably find it cheaper. It's more expensive on their official website.
• Jag-CDR Aux modification from discountcarstereo.com ($99) (retains CD-player)
• Back-up cam that came included with the Portable Car-play unit
• On it's way: the PAC SNI-1/3.5 Ground loop Isolator (Crutchfield $11.99)
• I harvested the bracket and frame that the OE Sat-nav system uses.

This solution retains the factory head-unit, Amplifier (if present), and CD-player. It uses a portable Carplay screen connected to the factory headunit via AUX. It also allows an FM-transmitter mode if you want to avoid using an AUX connection. The portable Carplay screen I chose, aside from having an input for a reverse cam (included) also allows plugging in a Dash-cam and an SD card for DVR. Discountcarstereo provides two options for AUX units, one that retains CD-player functionality, and one that doesn't. The model of Aux input you will buy from them also depends on if you have the premium system (Alpine/Harman Kardon). So if you like what you see are looking to copy my build, make sure you buy the correct aux from discountcarstereo. That being said, I tested the FM-transmitter method for the audio output and I was surprised at how good it sounded.

So, here's what I did. I had an extra OE Satnav system lying around that had the screen in terrible condition. I decided to cannibalize it in order to use it as my bracket instead of having to 3D-print one. This worked well.

I disassembled the screen and harvested the backing plate and bracket. The Essgoo screen came with two brackets. A suction cup one for the windscreen, and one meant to be bolted to a surface. I chose the latter and bolted it to the backing plate of the OE nav screen.

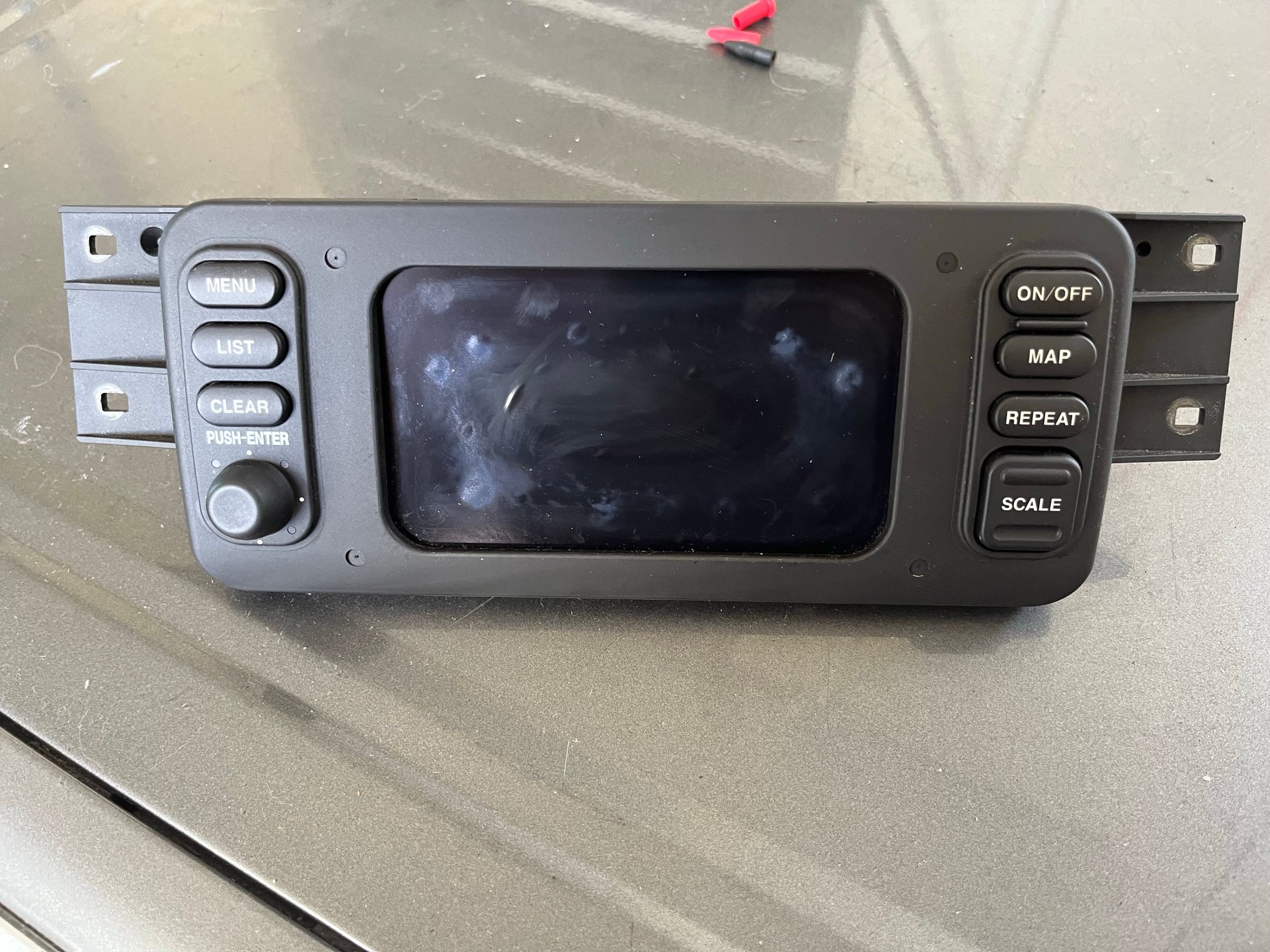

So, here's the extra display I had lying around. (Actually this is the one that was in the car, but used this one to take pictures after the fact.)

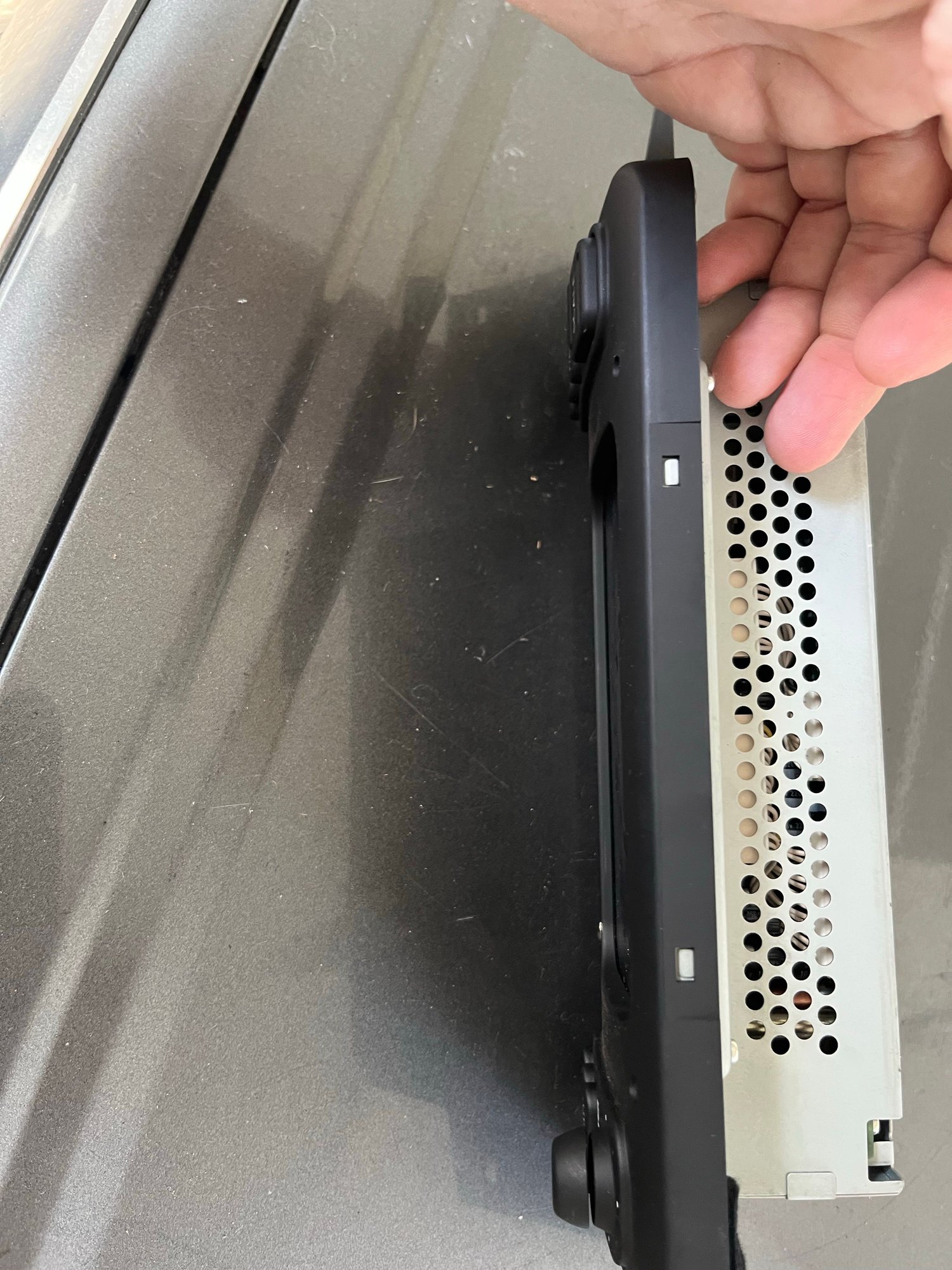

Lift up to clear the metal tabs that catch on the black plastic on the top

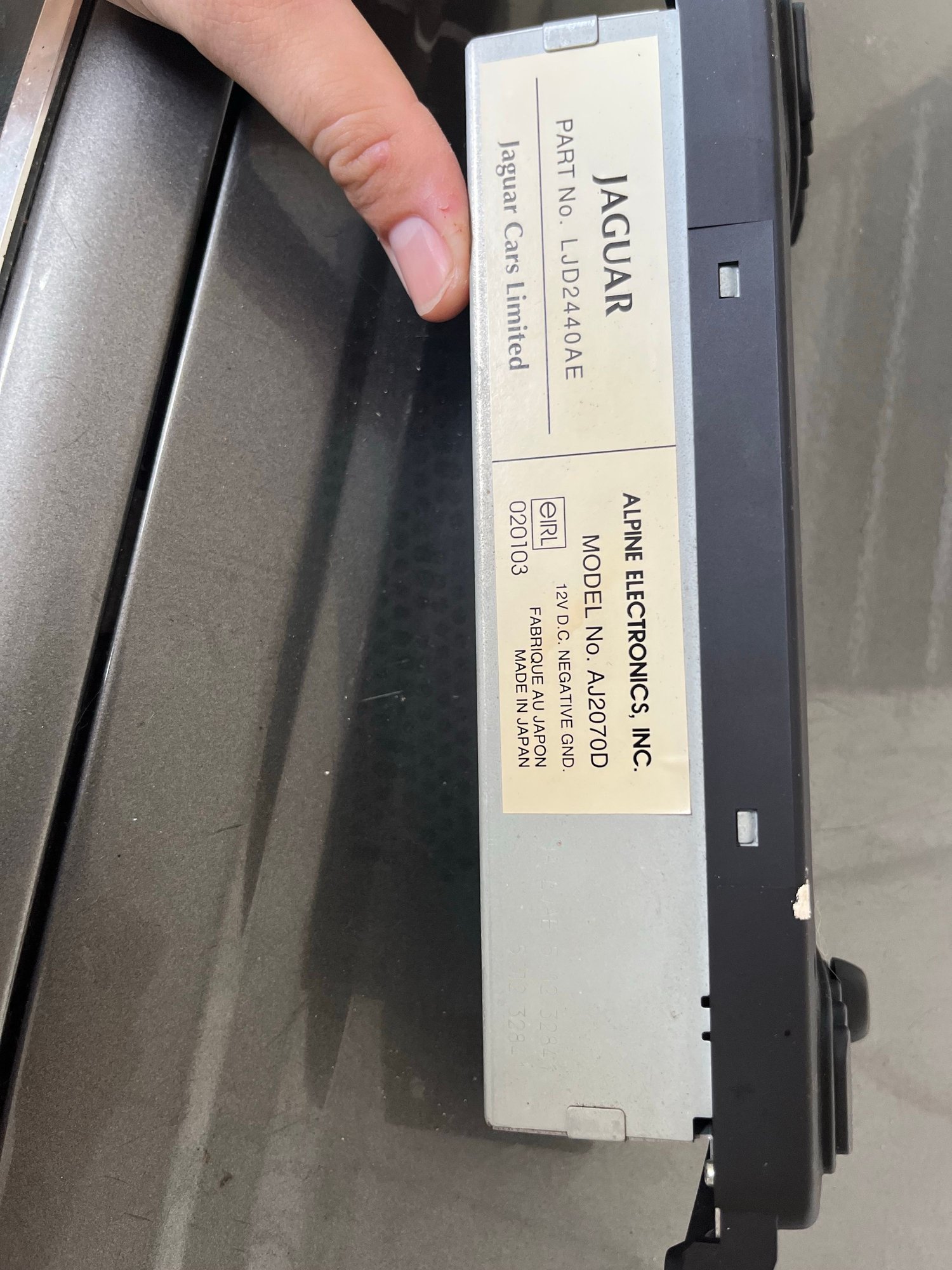

and the bottom

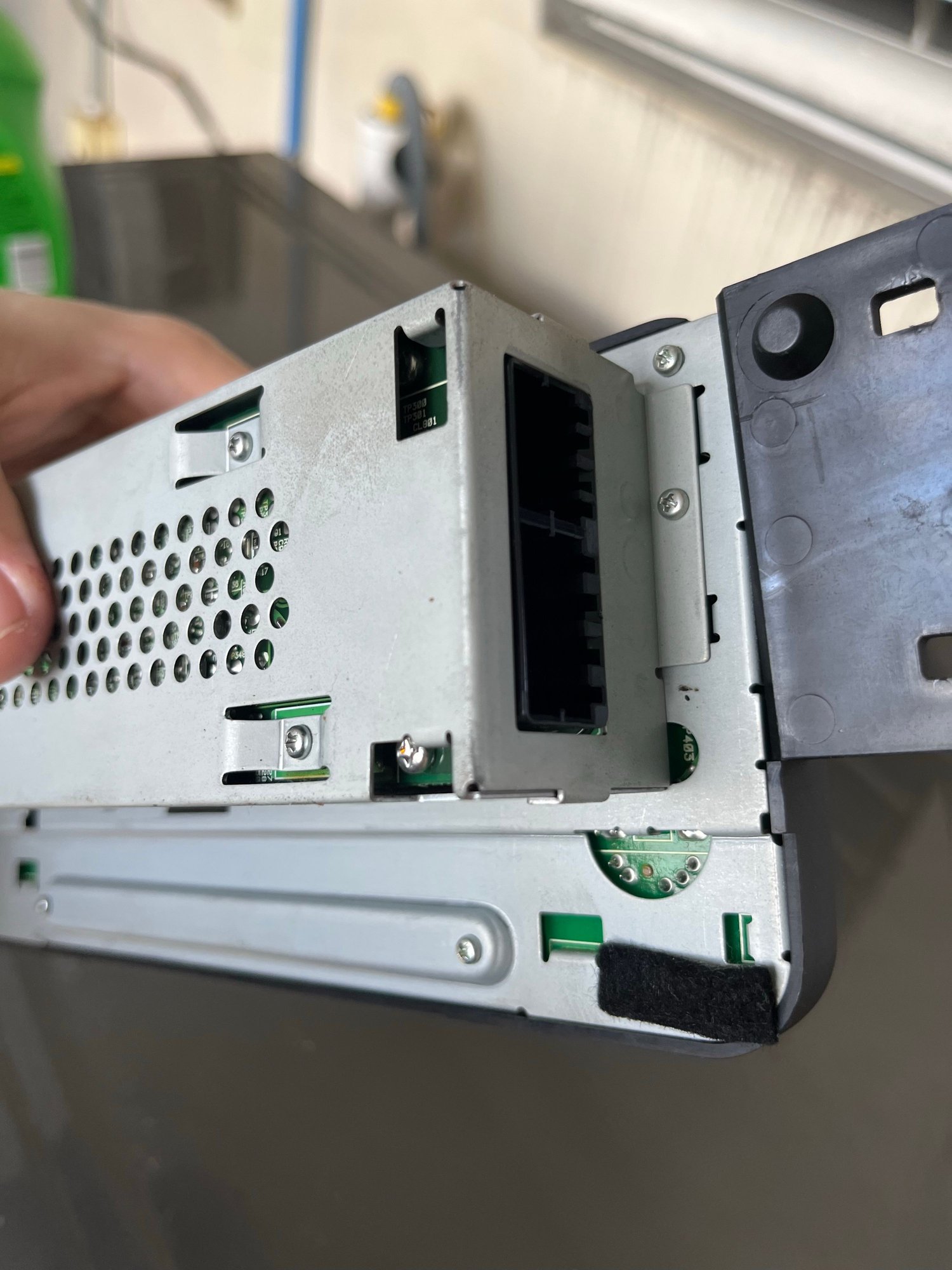

Once you've done that, remove all the bolts you see here



and here

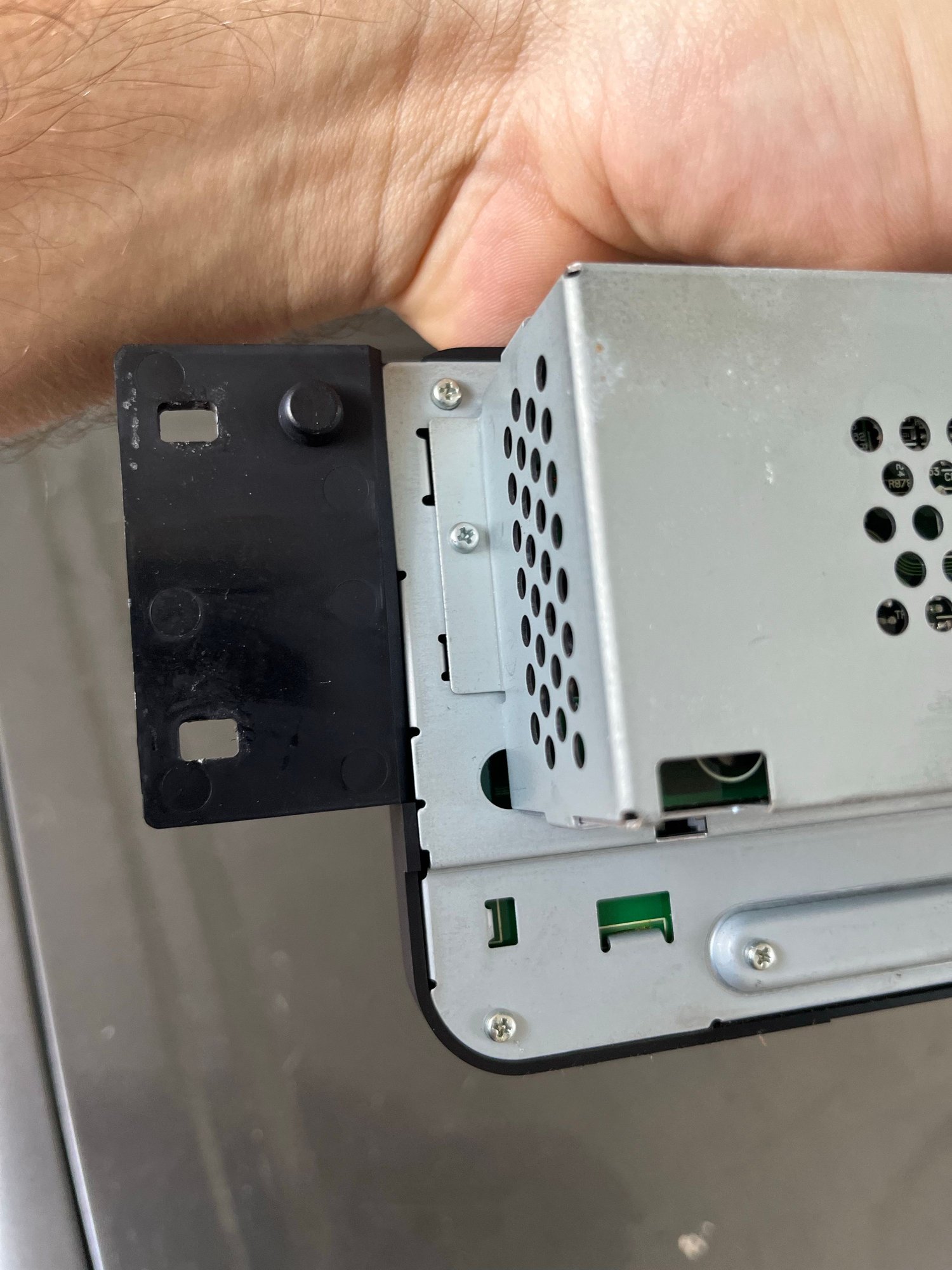

and here

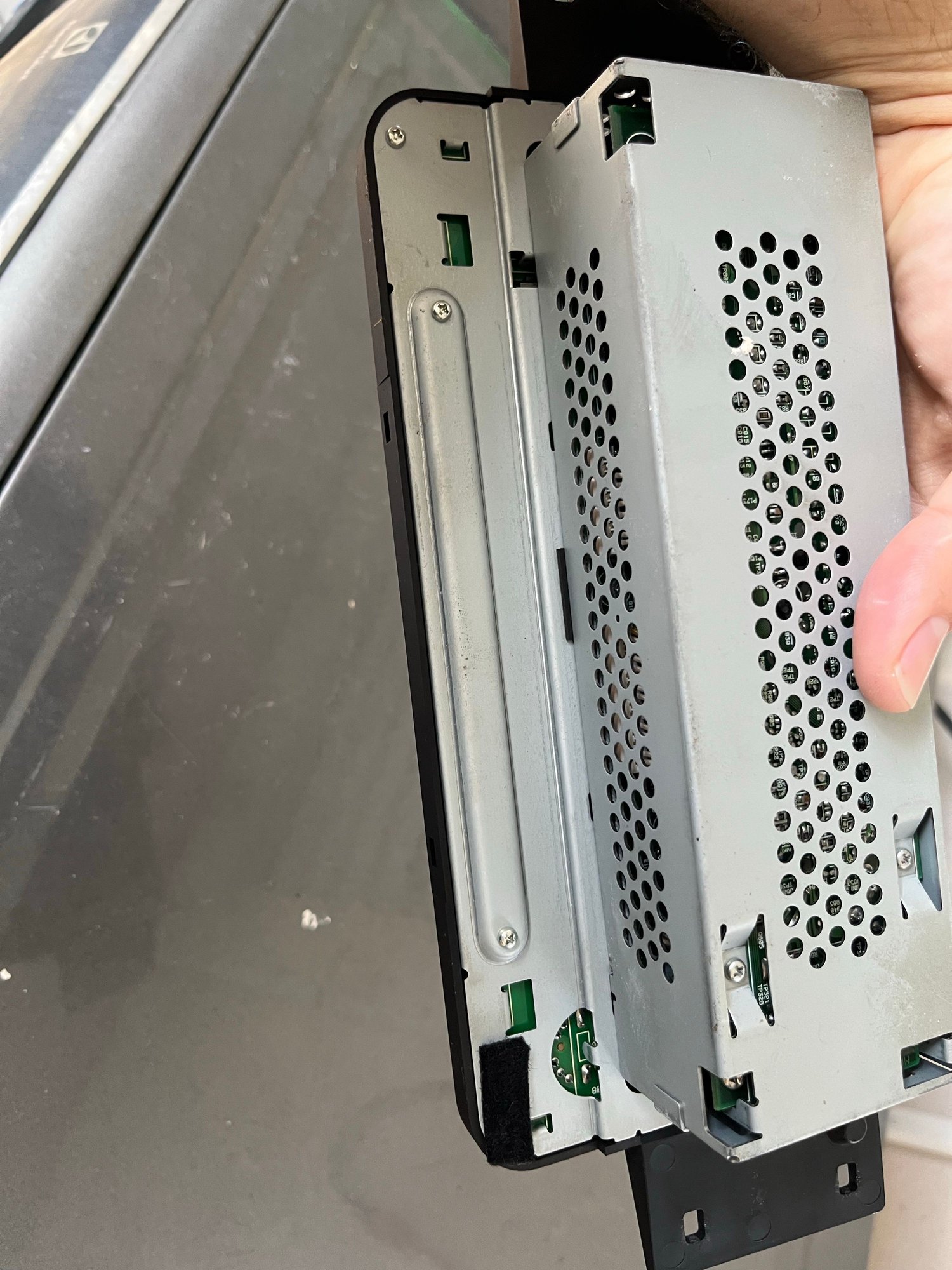

And here. Also, where the wiring harness used to plug into is where I routed the new cables through.



Once I had done that, it was a simple matter to unplug the old screen from the boards

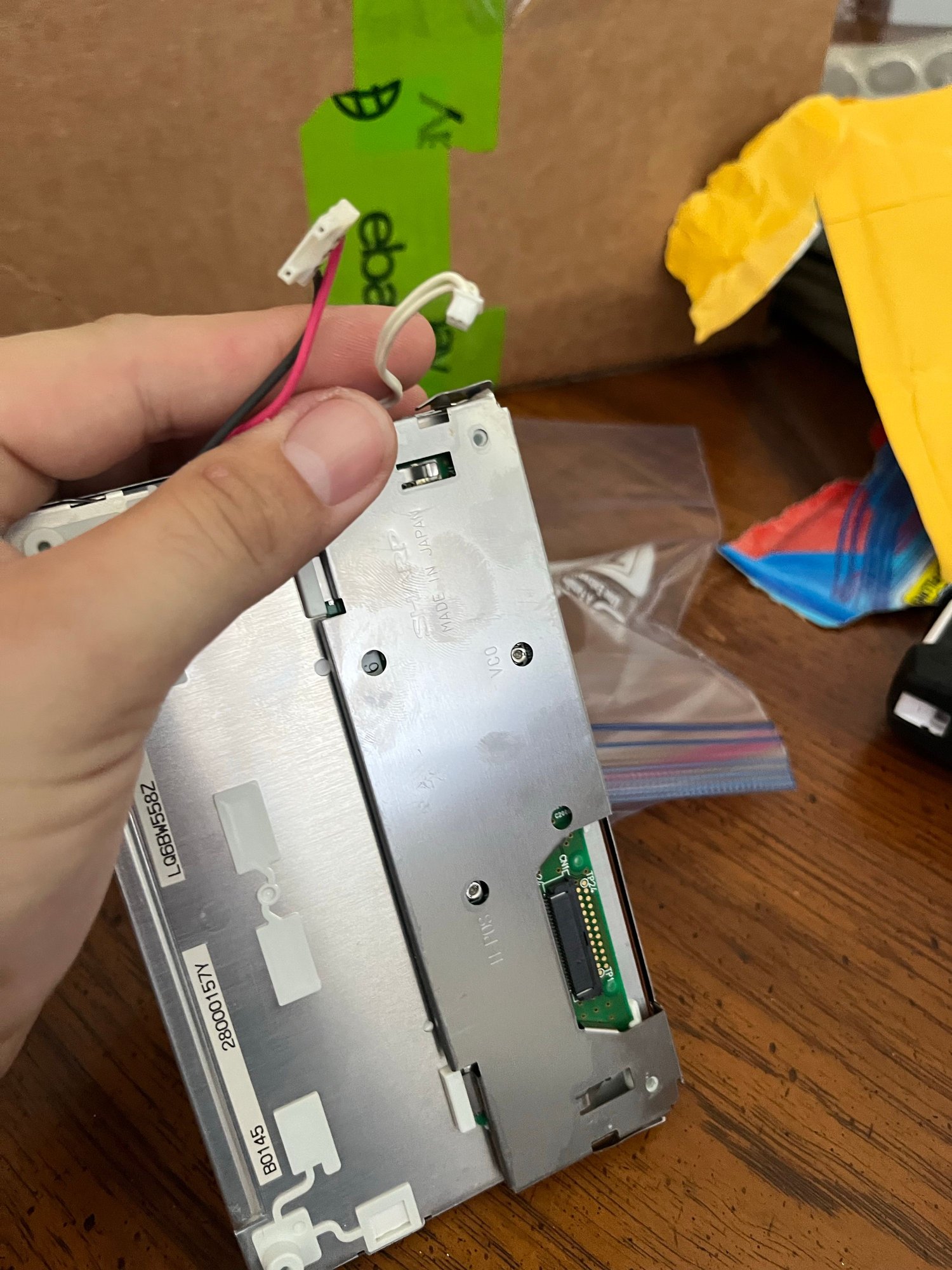

Just two wires as you see

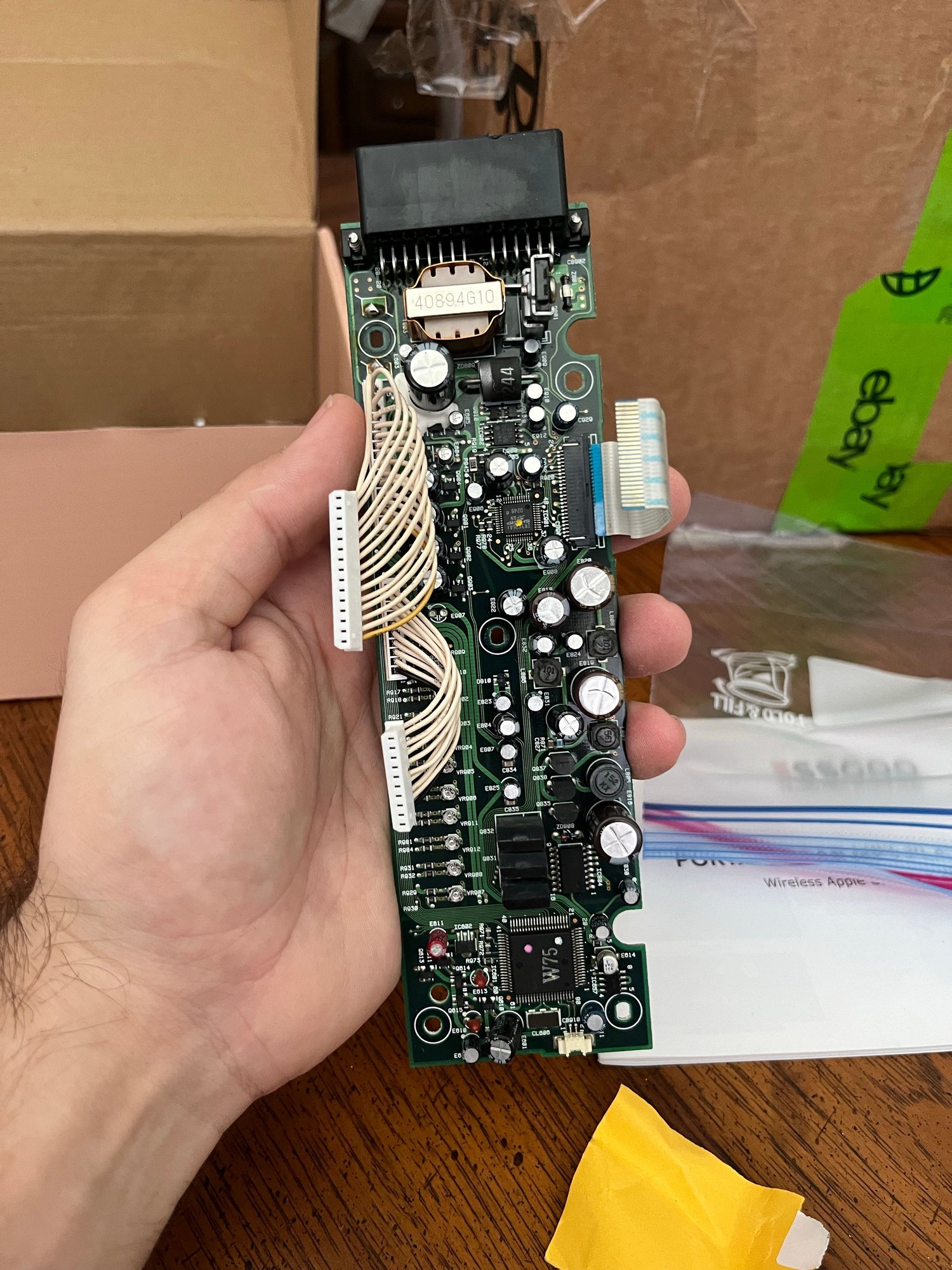

And I removed all of the computer boards like this one



this one



these and the buttons



and the screws which I all put aside and am ready to discard unless anyone wants any of this

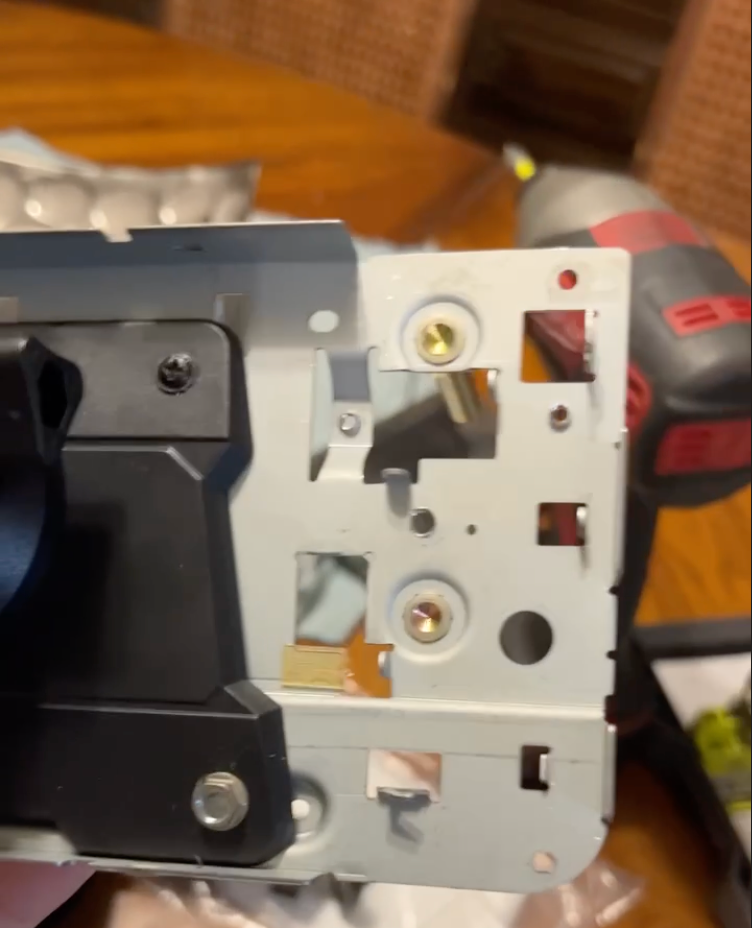

I then used self-drilling screws to bolt the Essgoo to the metal backing plate



I was 1 screw short so I used another one after drilling a hole.

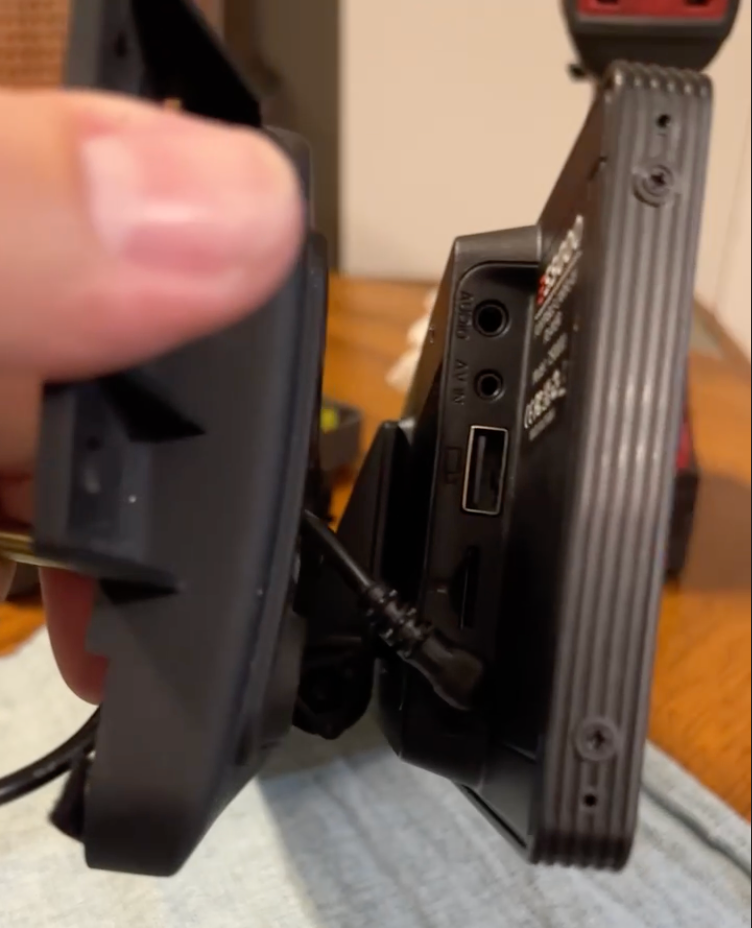

Initially I wasn't going to include the rear box , but I decided to keep it.

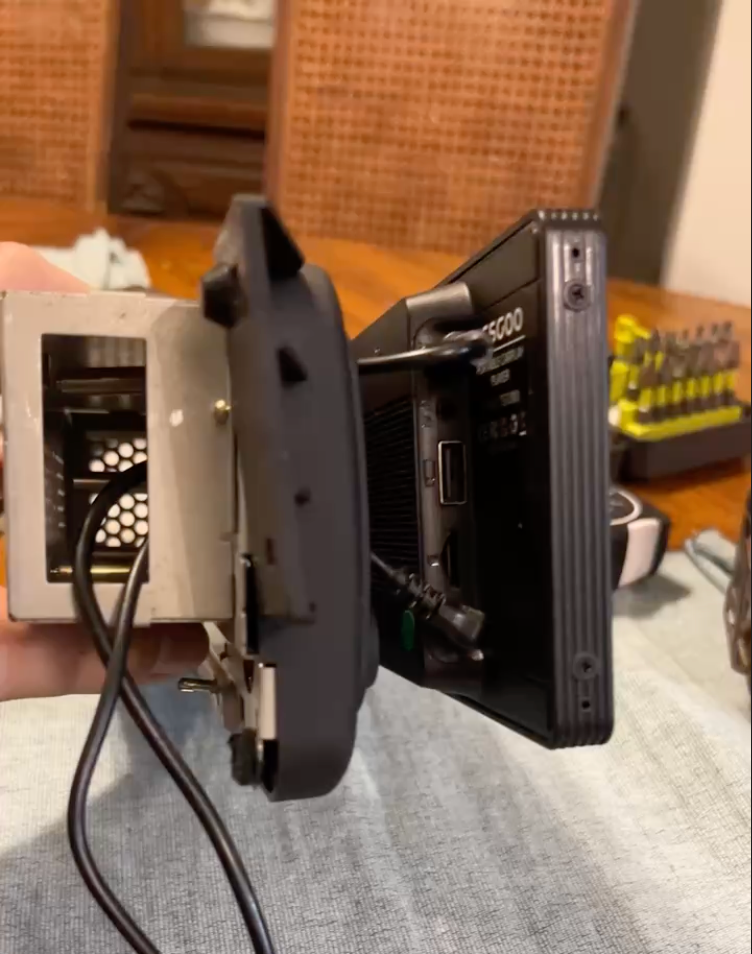

And routed my wires through it.

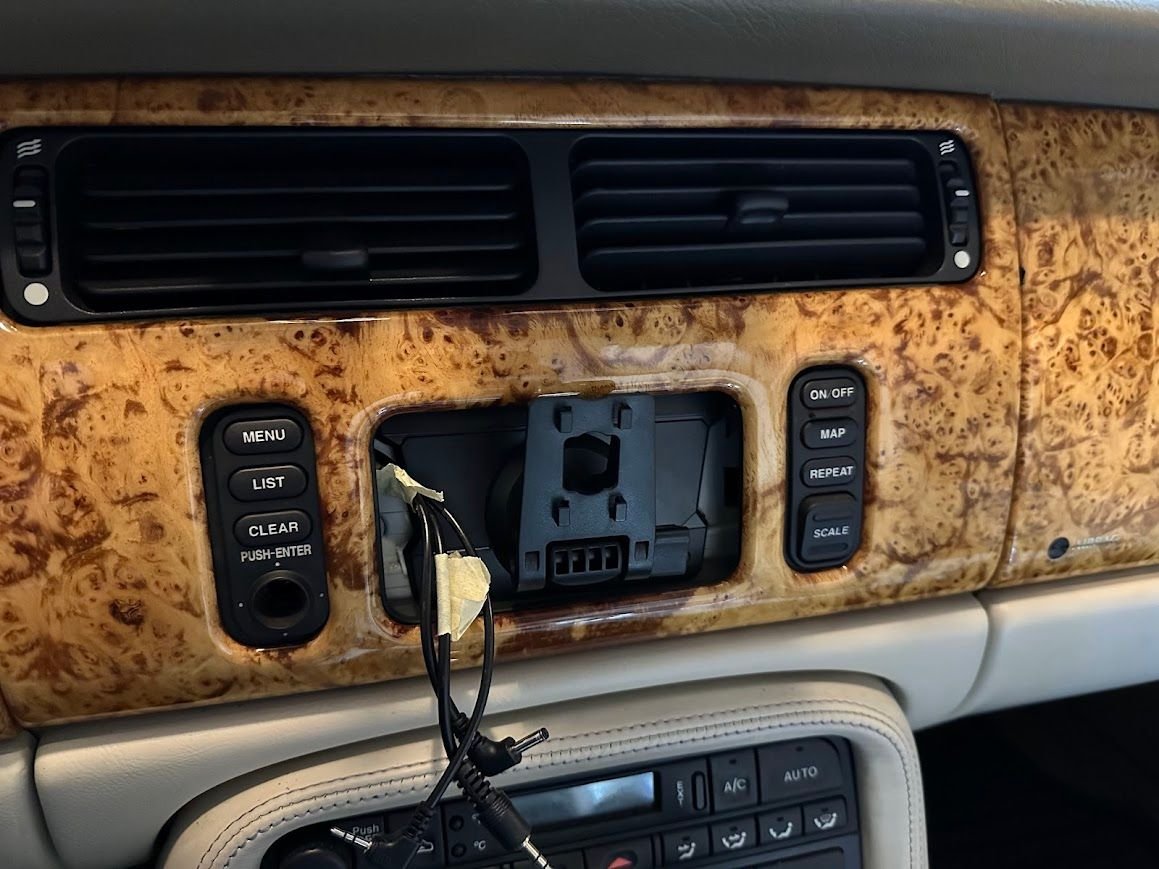

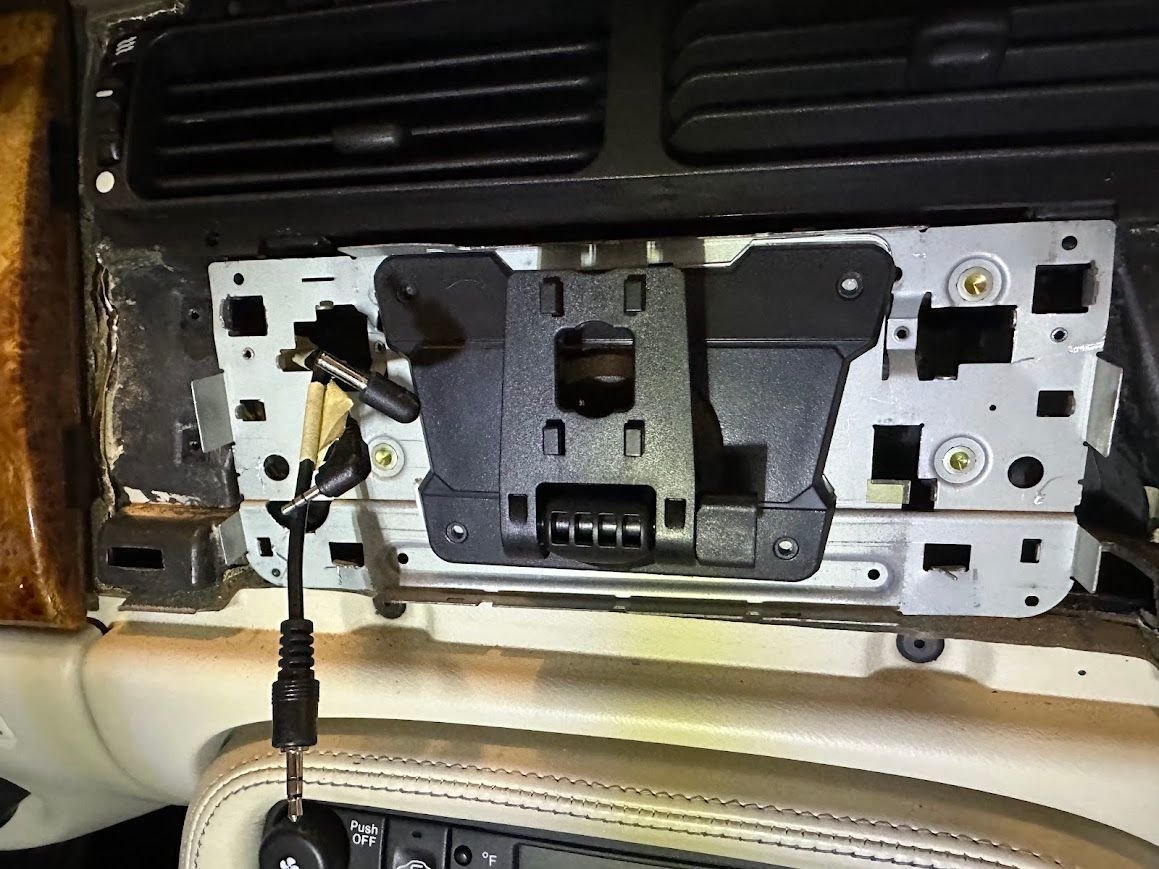

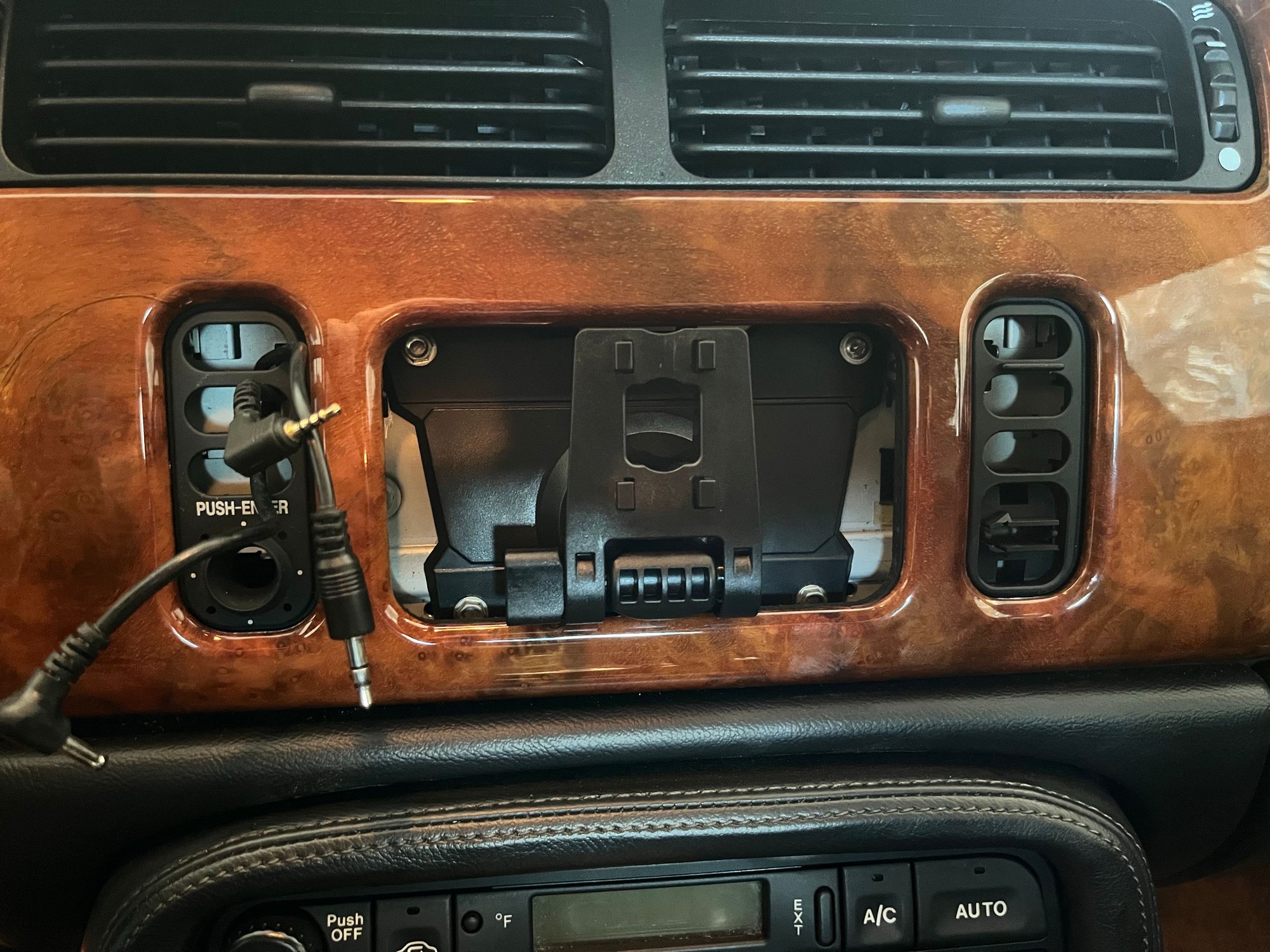

and that's how the wires exit through the fascia. Top hole has the Aux cable wire (dangling), middle has the reverse - camera AV cable, and bottom has the power wire.



Here's a side shot of how the system looks from the driver's side

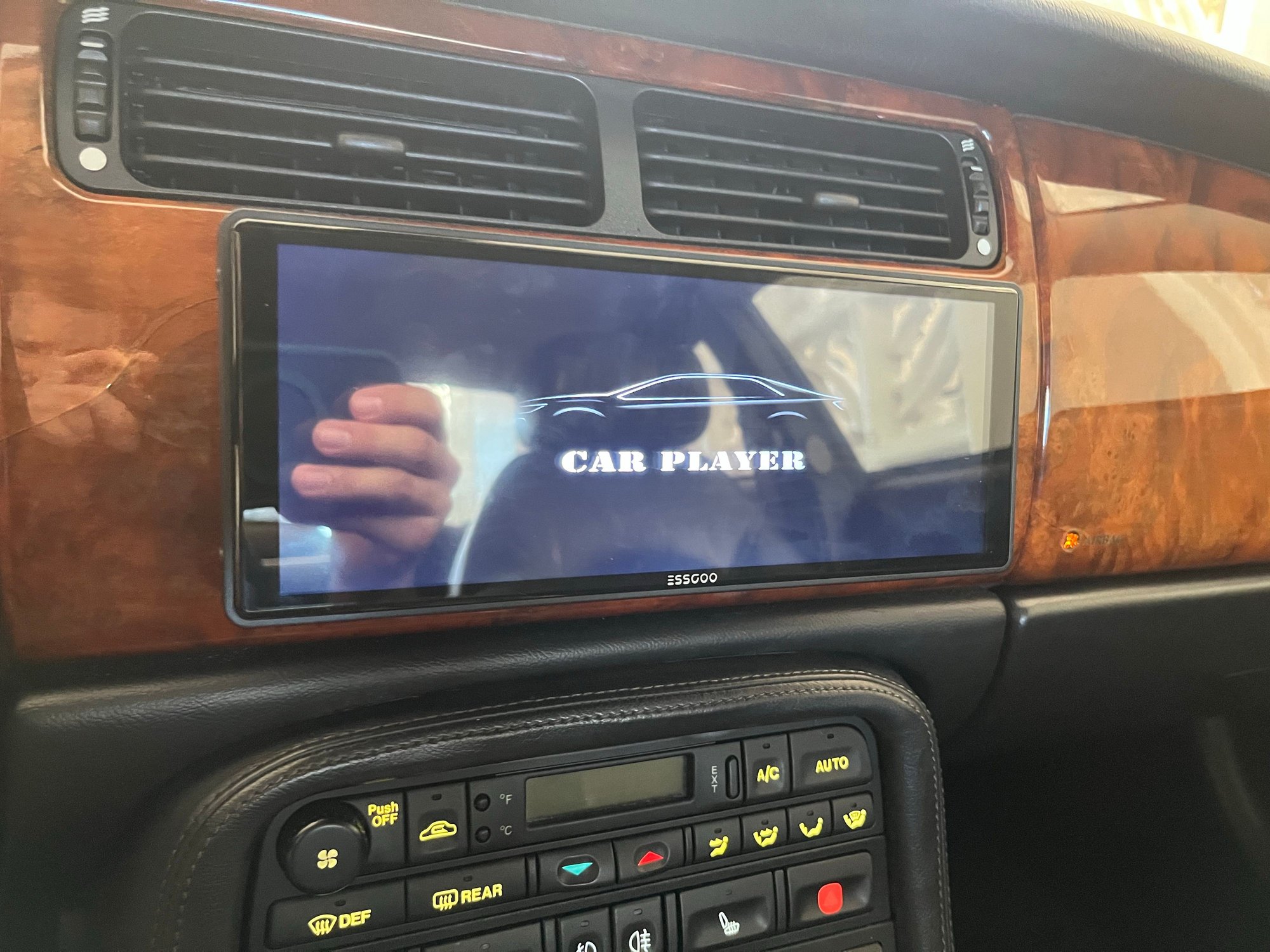

Boot-up logo. I understand it's possible to have it show the Jaguar logo instead. I emailed their support today to see if they can give me instructions on that.

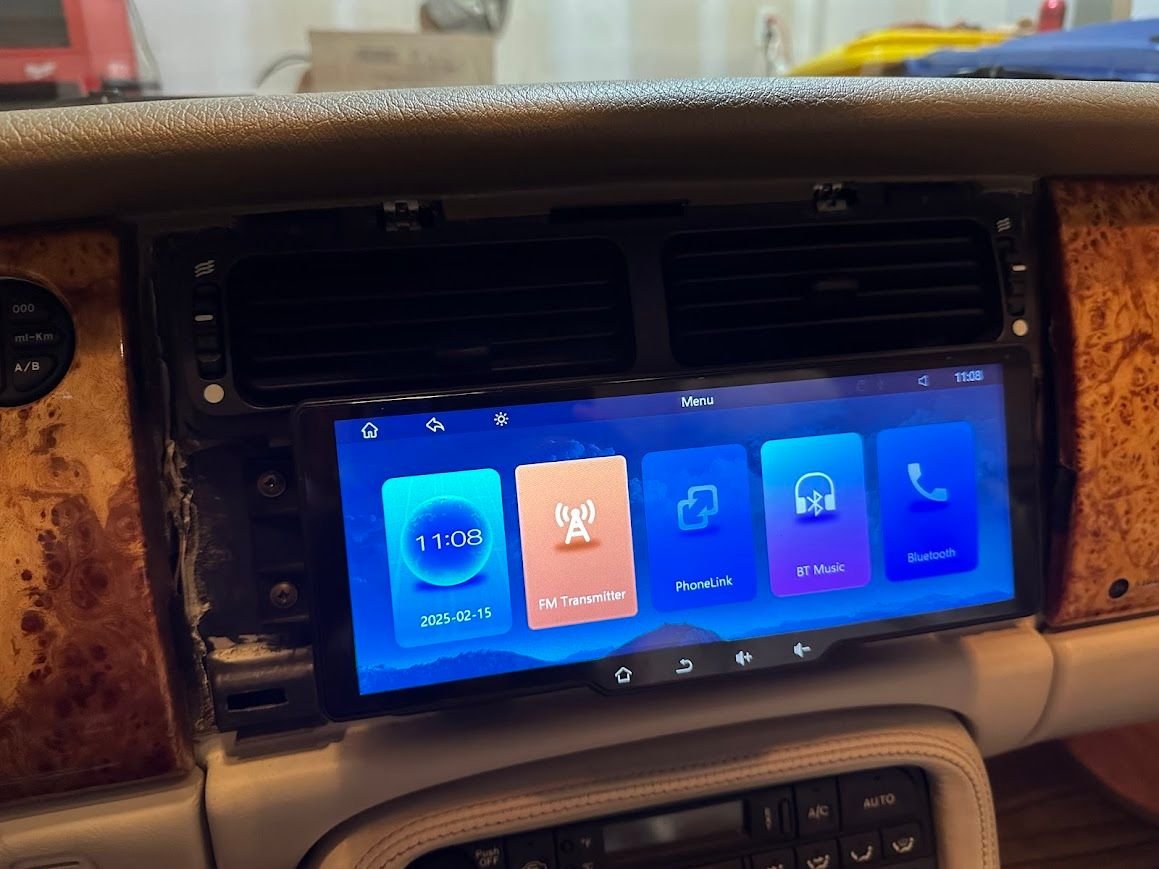

Home screen: Clock, Carplay, Android auto, FM transmitter connect, BT, Phonelink, it also allows airplay, for if for whatever reason you want youtube, netflix or something else you shouldn't have while driving.



AV is for viewing a dash-cam. I don't have one so I haven't tried it. I also haven't plugged anything through USB or the SD card (TF), but SD card is used for storing dash-cam footage. The dashcam connects via USB. I think you can use USB for other stuff. I haven't tried.

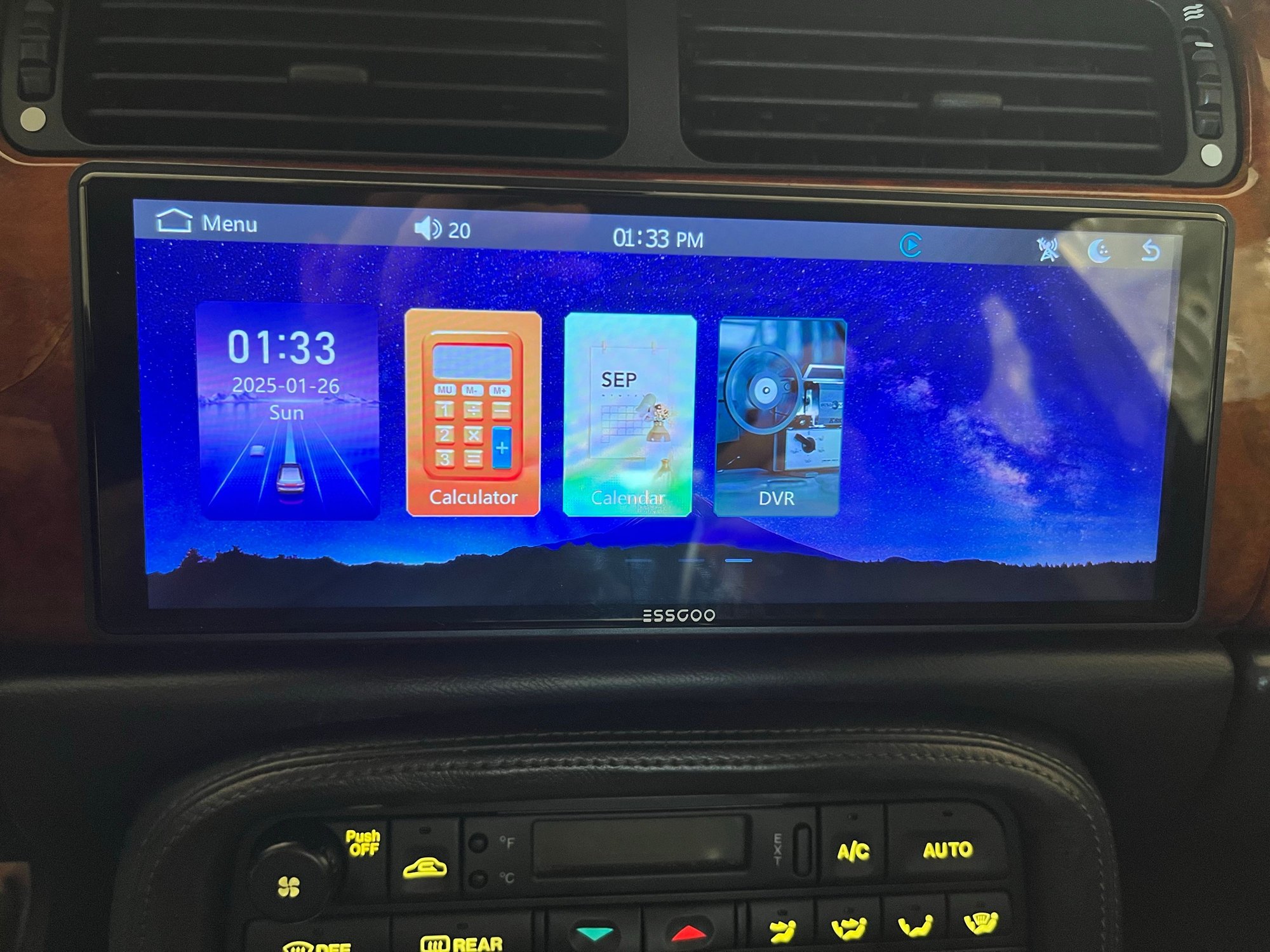

DVR is for recording dash-cam footage.

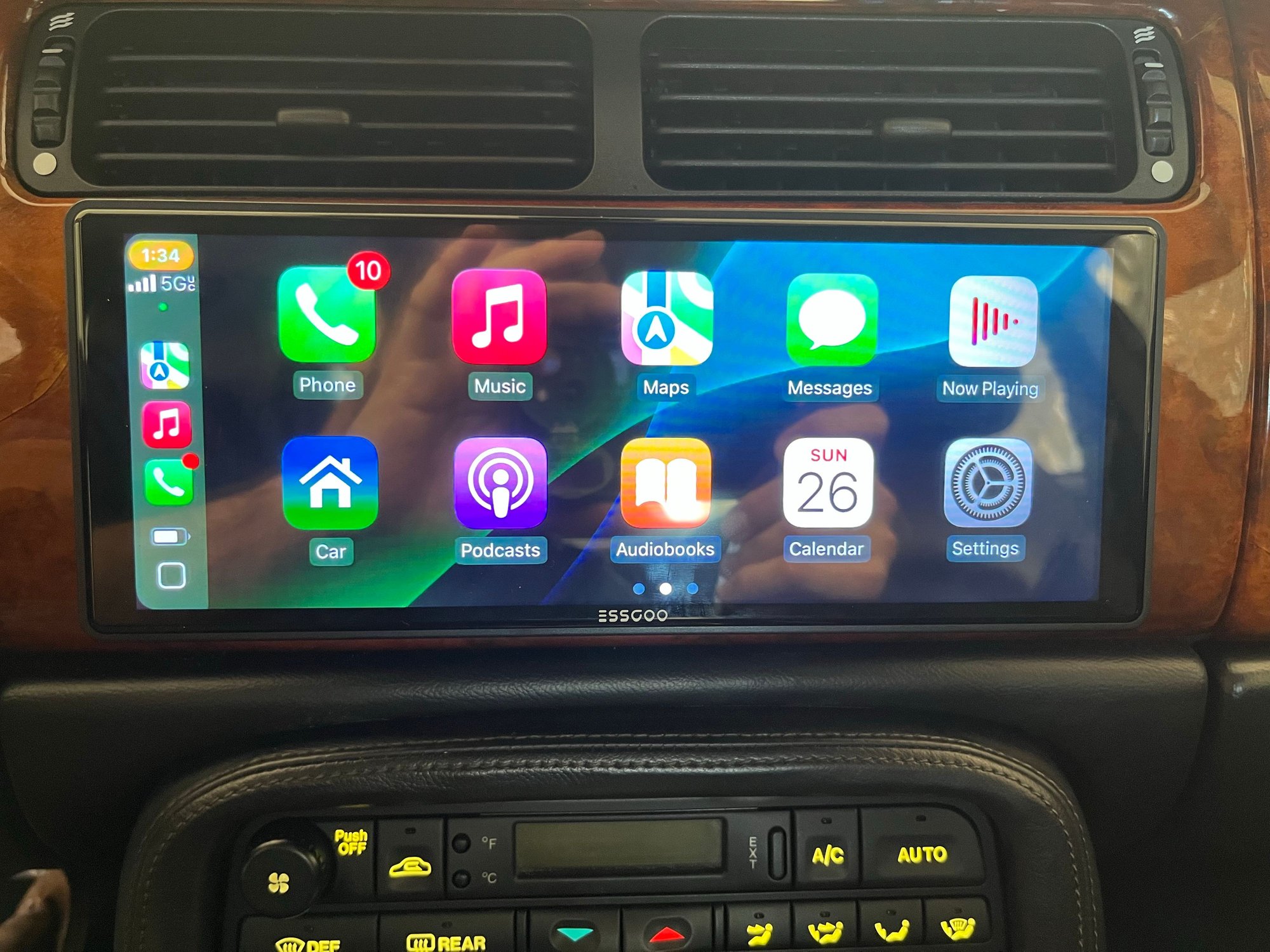

Carplay mode (once it connects to your iPhone, it automatically goes into Carplay). You can return to the system's home via the "Car" button.



Reverse camera (it activates automatically when the gear lever is in reverse). I tapped into the reverse bulb wire at the passenger side (US) tail-light harness (yellow wire). Side note, I'm not happy with the color mismatch between these LEDs (they were all sold to me as white, but...)

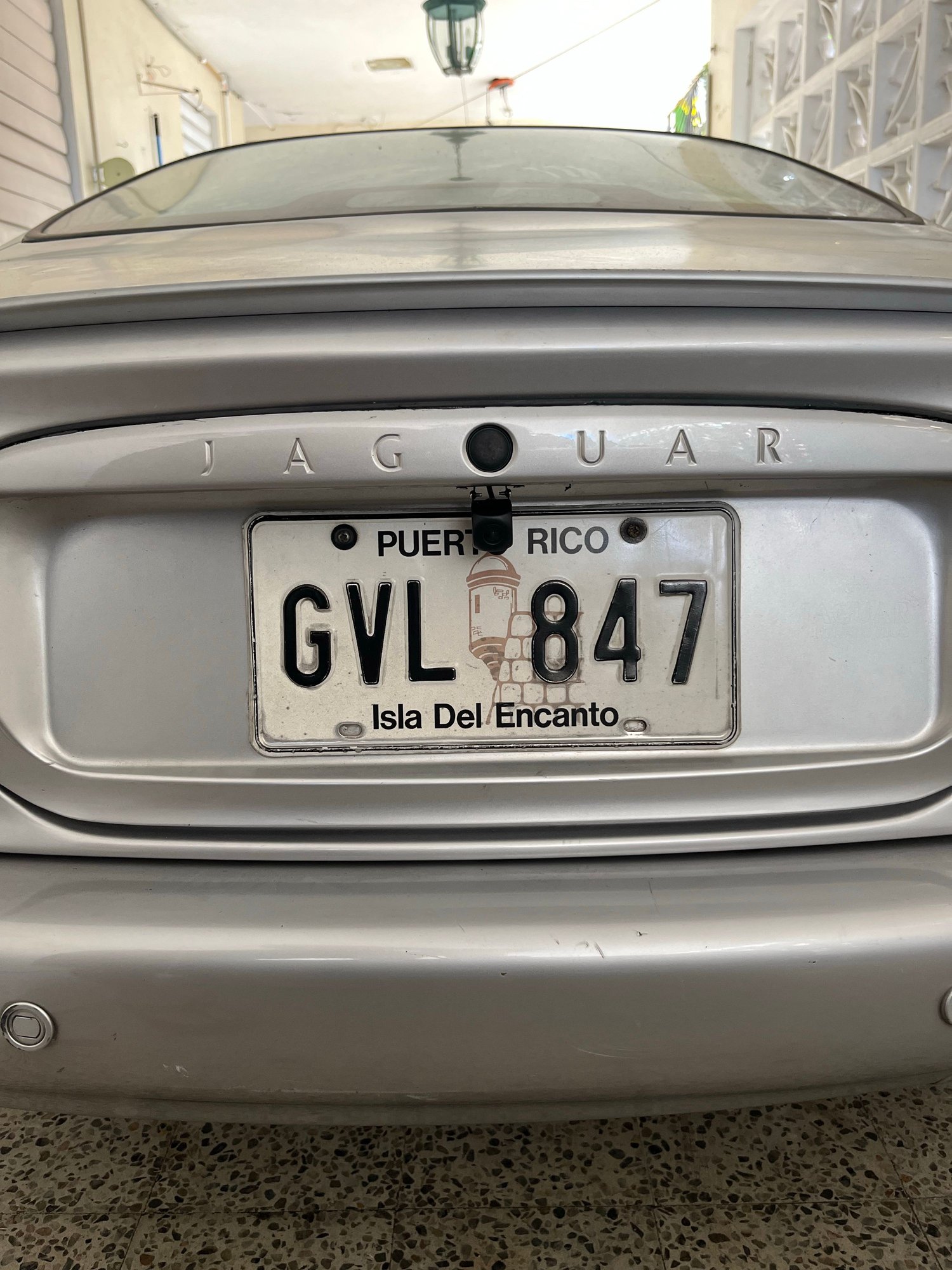

The back-up camera is sitting below the tired growler and above the license plate. I routed the wire through a small hole already present between the plinth and the sheet-metal.


[img alt="The Essgoo power wire heads straight into a 12-V cigarette lighter outlet and includes two USB ports for phone charging. Im considering tapping it directly into the cars wiring if I find this annoying.
"]https://cimg6.ibsrv.net/gimg/www.jaguarforums.com-vbulletin/1500x2000/img_9102_a7bddd4970ebe6346237a4500a07cc50ddfb8128. jpg[/img]
The Essgoo power wire heads straight into a 12-V cigarette lighter outlet and includes two USB ports for phone charging. I'm considering tapping it directly into the car's wiring if I find this annoying.

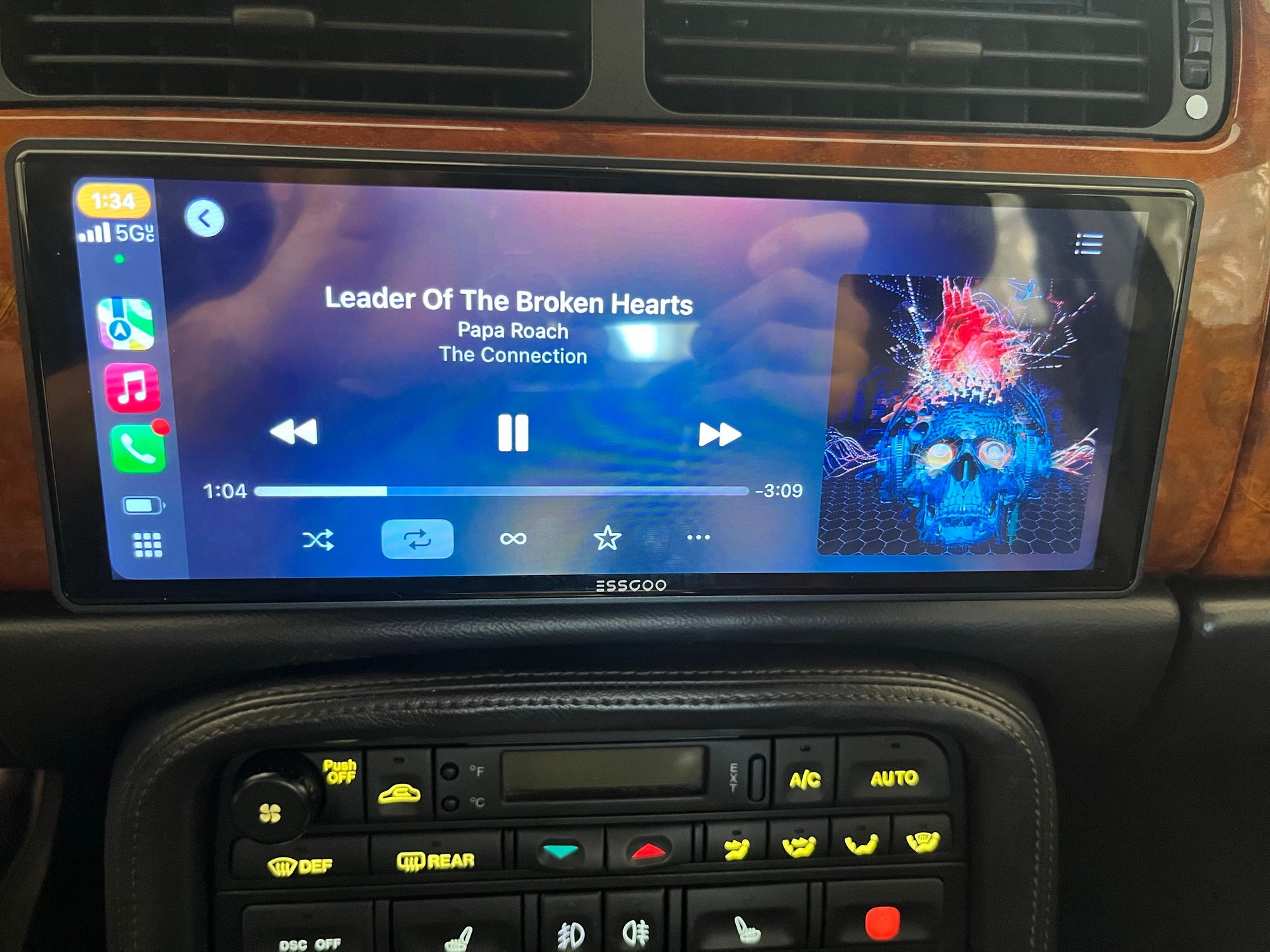

Apple music, you can control it via the touchscreen.

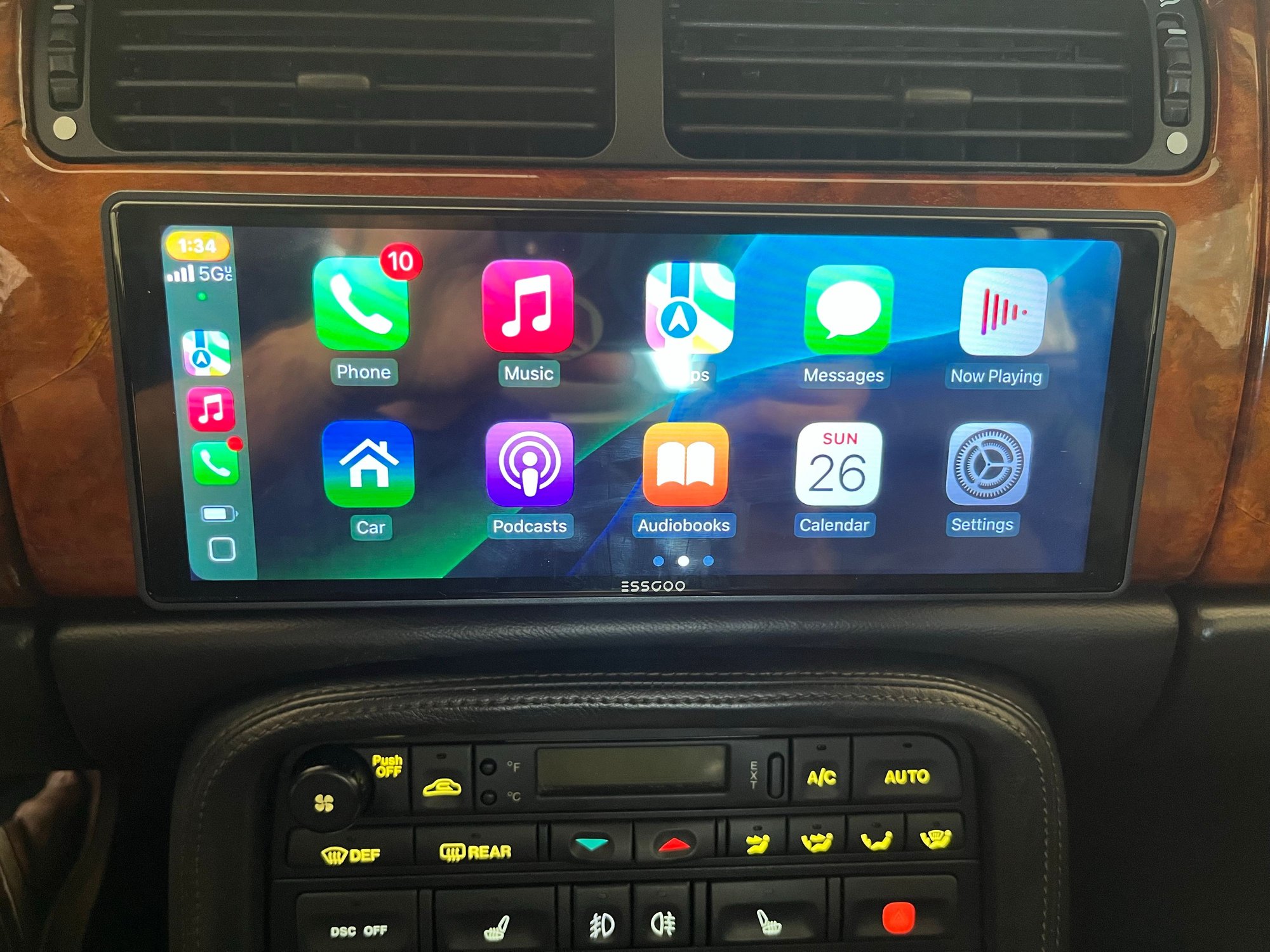

Carplay home-page.

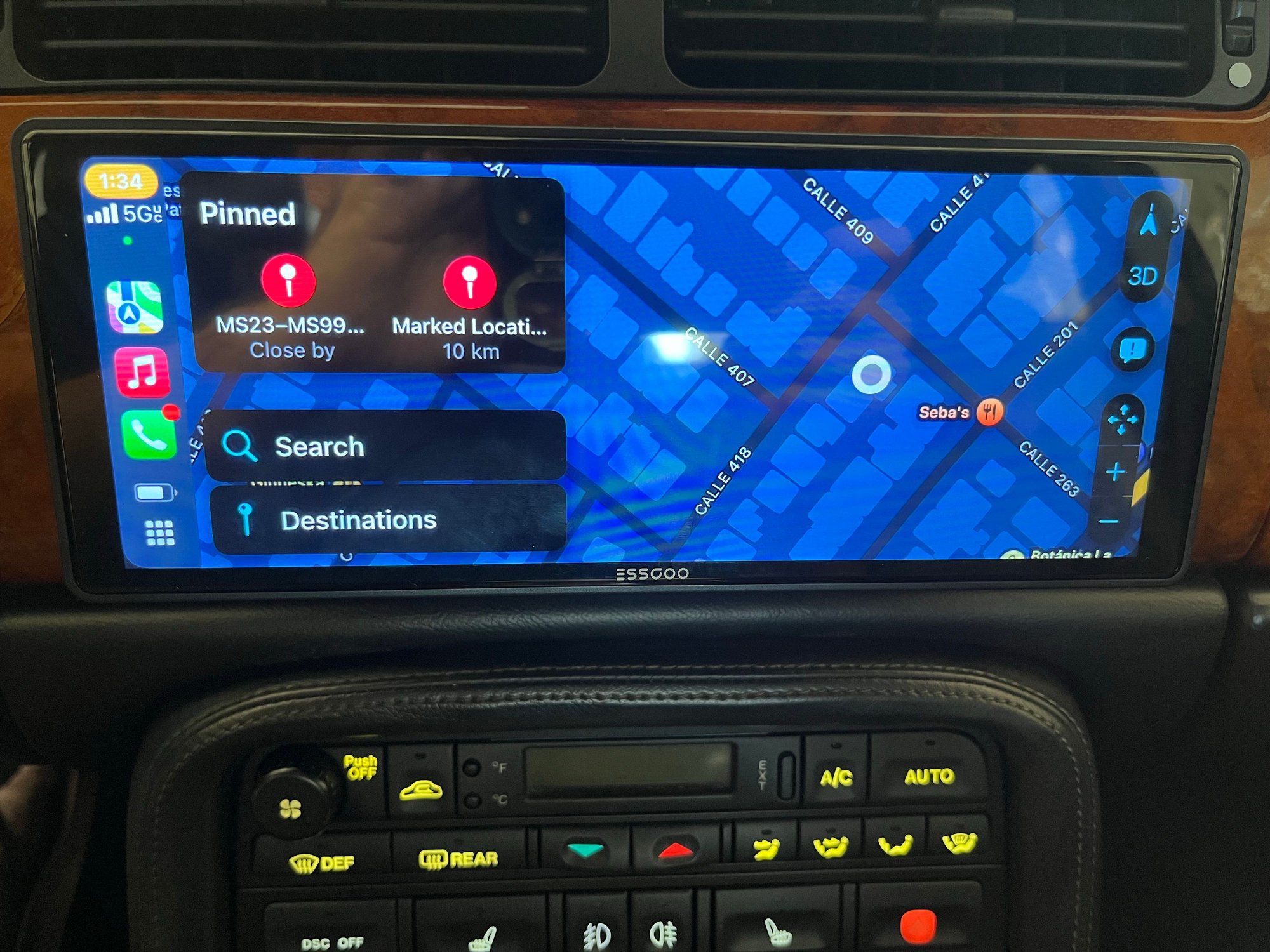

Carplay Apple Maps

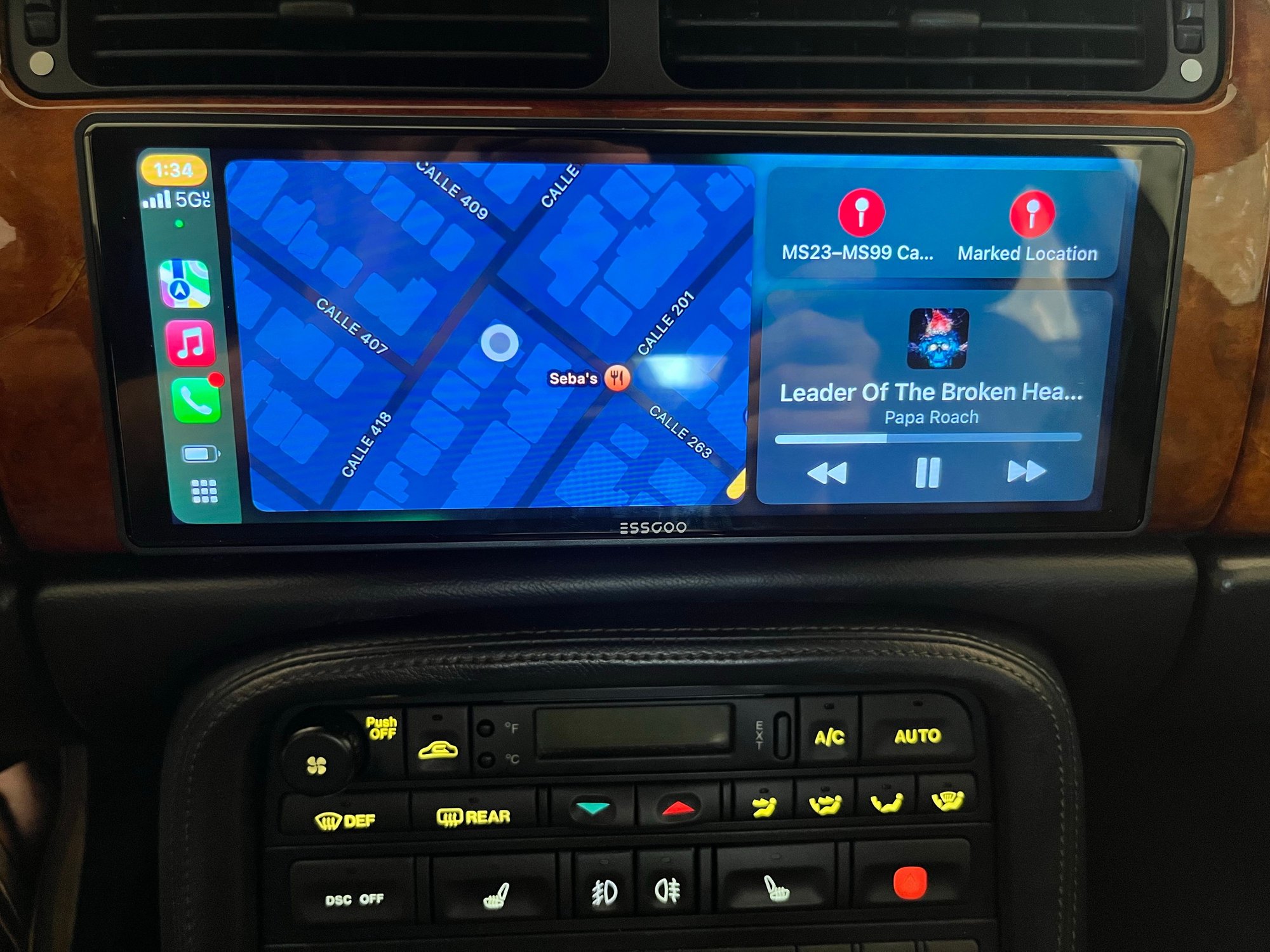

This view gives you Maps and Music at a glance.

I am surprised by the quality of this portable carplay system and am very happy with it. A few things to note. It isn't the most responsive system. There is a small delay when swiping between screens. The back-up camera takes a second or two to begin displaying footage when the gear lever is set to reverse. However, camera resolution and screen resolution are very nice. The screen brightness is good and at night is not overbearing due to a light sensor that adjusts brightness accordingly.

The AUX and back-up camera wires are routed behind the center veneer, downwards towards the climate control pack and radio-headunit, beneath the center console along the transmission tunnel, underneath the rear-seat bottom and runs up through the rear-seat back-rest beneath the rear parcel shelf (coupe) and down through the grommet that's underneath the center tail-light (coupe) and then towards the right side where camera wires are routed in two directions: the RCA and power wire go through a grommet that leads to the trunk-lid, and inside the trunk lid towards the plinth where it exits out through a hole and into the camera itself, and the red (positive) and black (ground) wires that come out the camera go back through this route, behind the amplifier where the red wire taps into the tail-lights yellow wire for the reverse light, and the black wire is secured to the chassis for a ground. The aux wire from the Essgoo on the other hand plugs in at the center console, but the female in that connection (discountcarstereo JAC-CDR) is coming from the rear. The added aux is routed through the parcel-shelve's grommet and then runs along until it connects the amplifier and CD-changer where it plugs in to Ai-net ports following Discount-car stereo's instructions. The Jag-CDR allows switching to CD-player by just disconnecting the Aux input. So, if you want, you can have the Jag-CDR and the Essgoo's connection inside the center console arm-rest storage ( you will need a slightly longer Aux cable than Essgoo supplies.

Finally, the incoming ground-loop insulator that I have on order will plug between the Aux from the Essgoo and the Jag-CDR to remove the static noise that is being caused by the car's 12V cigarette lighter.
