My 2001 XKR is a joy, but I really wanted to add some permanent gauges, especially now that I was performing supercharger boost upgrades. Also, with a car of this age, keeping an eye on critical systems would help alert me of early signs of trouble. I was not keen on finding an entire new wood paneling set and removing the navigation screen to install gauges. Cheapening the interior with a bunch of aftermarket hardware was also not my cup of tea.
I like having integrated vehicle navigation better than relying on an aftermarket unit or a smartphone, but with non-upgradeable 10 year old maps, as many of you know, this already dated system has grown to be more of an annoyance than a help. The integrated approach has the advantage of a larger screen, and information at your fingertips whenever you are driving without inconveniences, distractions, dangling wires or repeated setup procedures.
I also am a long time XM satellite radio listener and have really grown fond of commercial and hassle free music of whatever genre I want on satellite radio. Having XM real time traffic in an urban area is another bonus. I had installed an inexpensive XM radio when I first purchased the car, but it turned out to be a poorly designed model that had chronic crashing issues.
This situation led me to the set of upgrades I am describing here. It was not particularly cheap, but it is solves all of these issues and more in a nicely integrated fashion. It really brings the car to another level. OK, I admit, these feature are just plain cool too J.
If you search around as I did, you might be able to obtain some of the items used and save a few bucks.
I have broken the installation discussion into four documents, to make it easier to mix and match features or add related upgrades such as a back-up cam or IPOD audio and video if you wish.
1)Adding two switchable video inputs to the existing navigation screen to an XK8/R (Note: This is required for the other upgrades)
2)Adding the Garmin GVN-53 upgradeable navigation, with option for XM radio with real time traffic and weather to an XK8/R
3)Adding HKS CAMP 2 Electronic OBDII Gauges to an XK8/R
4)Adding HKS CAMP 2 optional Oil Pressure (XK8/R) and Boost and Intercooler Water temperature sensors to an XKR
ENJOY !!

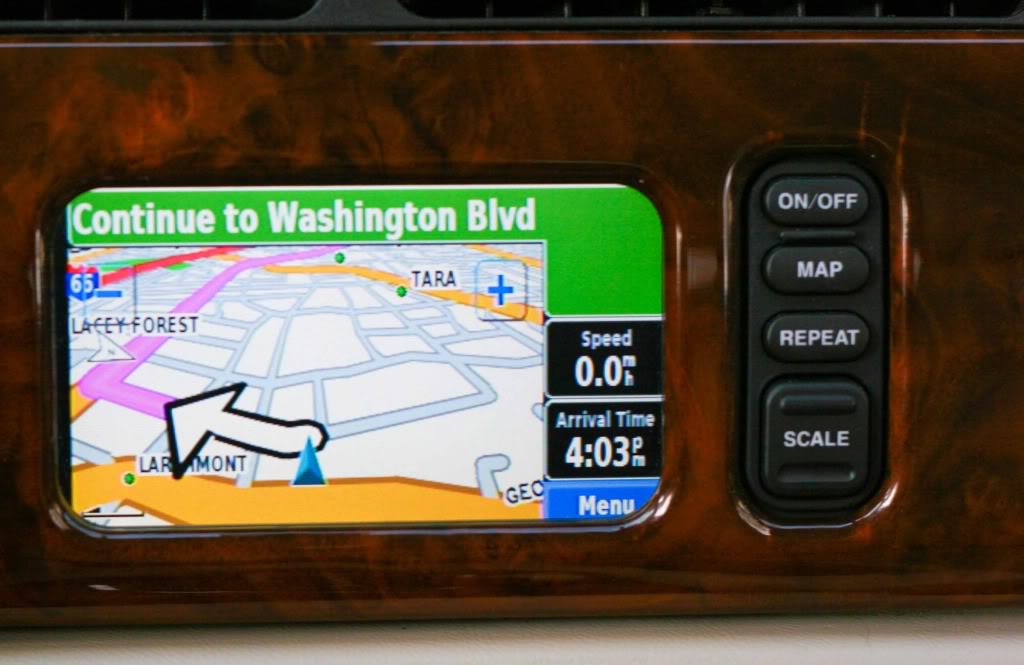

Here are some example screenshots:

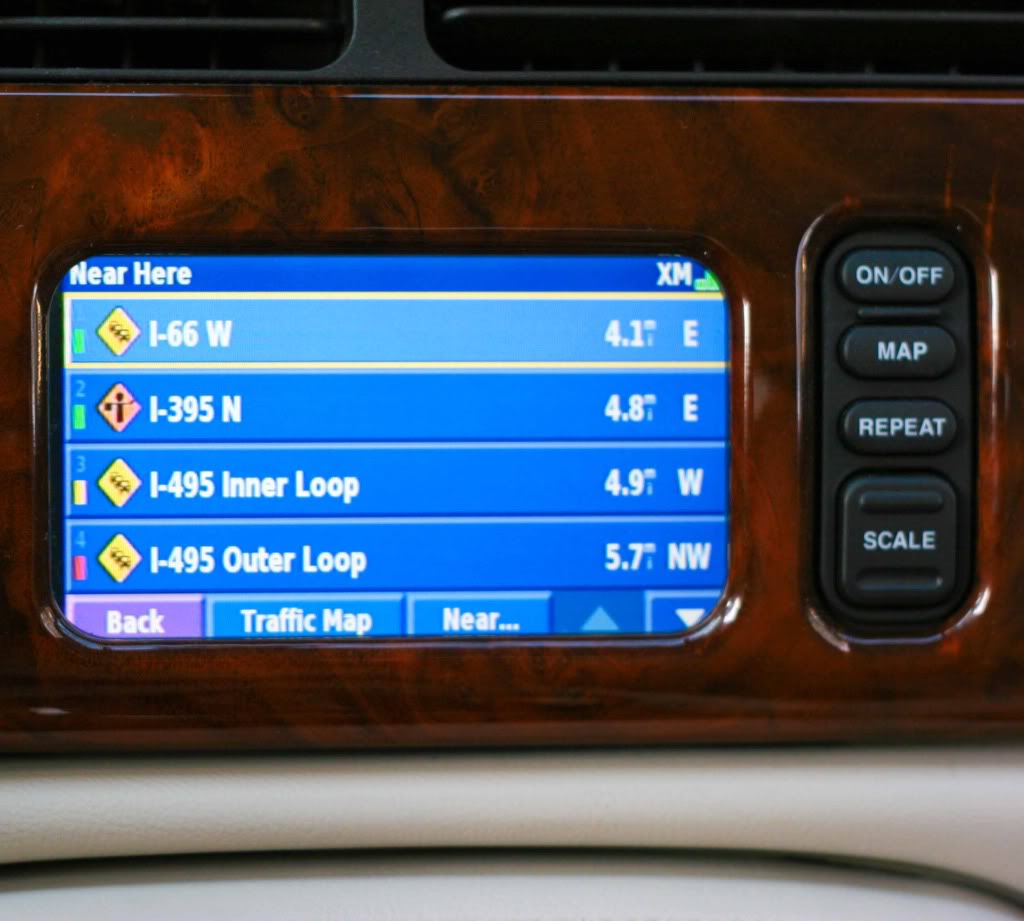

Traffic summary

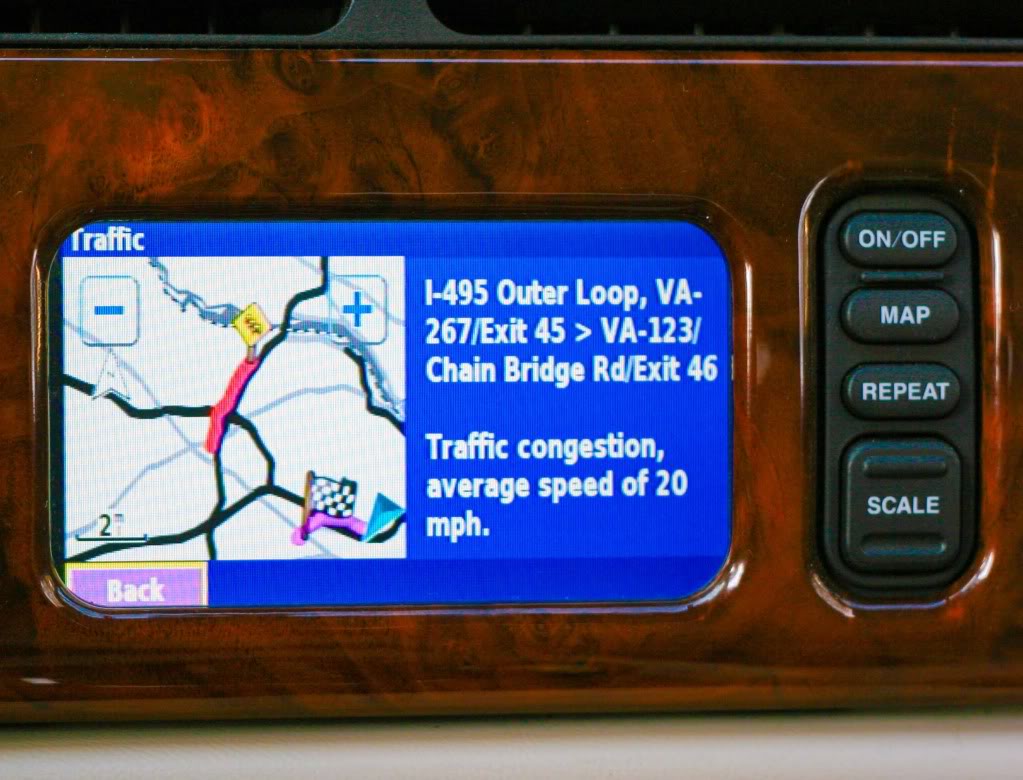

Traffic details
Weather
XM Satellite Radio

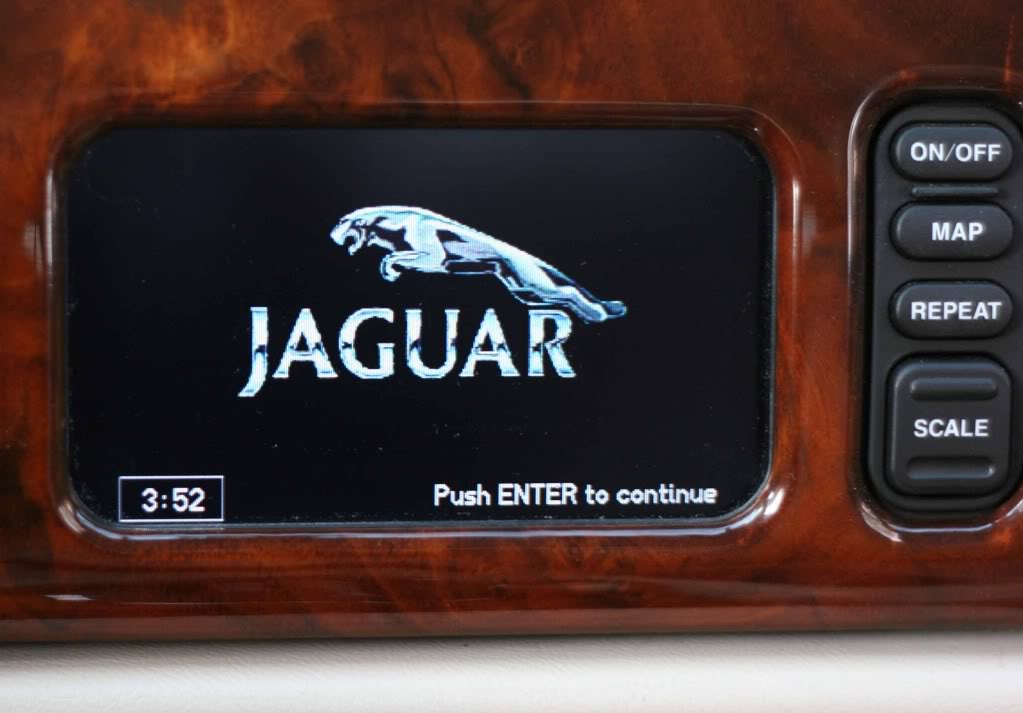

Still have the clock! (and leaper on the earlier models)
HKS CAMP 2 guages
CAUTIONARY NOTES:
1) The write-ups below are not full step by step procedures. Instead they provide suggestions and details on the parts of the installation process that are not necessarily obvious from the manufacturers instructions or that are specific to the Jaguar XK8/XKR. This has only been tested on a 2001 XKR with premium audio.
2) These installations require significant modification to your vehicle wiring. Do not undertake this yourself unless you are confident in what you are doing.
3) Never apply any signals (audio, video or control) to this aftermarket equipment without power and ground both reliably connected. Doing so may damage the equipment.
4) XM Satellite Radio is only available in parts of North America and is a subscription based service.
....
I like having integrated vehicle navigation better than relying on an aftermarket unit or a smartphone, but with non-upgradeable 10 year old maps, as many of you know, this already dated system has grown to be more of an annoyance than a help. The integrated approach has the advantage of a larger screen, and information at your fingertips whenever you are driving without inconveniences, distractions, dangling wires or repeated setup procedures.
I also am a long time XM satellite radio listener and have really grown fond of commercial and hassle free music of whatever genre I want on satellite radio. Having XM real time traffic in an urban area is another bonus. I had installed an inexpensive XM radio when I first purchased the car, but it turned out to be a poorly designed model that had chronic crashing issues.
This situation led me to the set of upgrades I am describing here. It was not particularly cheap, but it is solves all of these issues and more in a nicely integrated fashion. It really brings the car to another level. OK, I admit, these feature are just plain cool too J.
If you search around as I did, you might be able to obtain some of the items used and save a few bucks.
I have broken the installation discussion into four documents, to make it easier to mix and match features or add related upgrades such as a back-up cam or IPOD audio and video if you wish.
1)Adding two switchable video inputs to the existing navigation screen to an XK8/R (Note: This is required for the other upgrades)
2)Adding the Garmin GVN-53 upgradeable navigation, with option for XM radio with real time traffic and weather to an XK8/R
3)Adding HKS CAMP 2 Electronic OBDII Gauges to an XK8/R
4)Adding HKS CAMP 2 optional Oil Pressure (XK8/R) and Boost and Intercooler Water temperature sensors to an XKR
ENJOY !!
Here are some example screenshots:
Traffic summary
Traffic details
Weather
XM Satellite Radio
Still have the clock! (and leaper on the earlier models)
HKS CAMP 2 guages
CAUTIONARY NOTES:
1) The write-ups below are not full step by step procedures. Instead they provide suggestions and details on the parts of the installation process that are not necessarily obvious from the manufacturers instructions or that are specific to the Jaguar XK8/XKR. This has only been tested on a 2001 XKR with premium audio.
2) These installations require significant modification to your vehicle wiring. Do not undertake this yourself unless you are confident in what you are doing.
3) Never apply any signals (audio, video or control) to this aftermarket equipment without power and ground both reliably connected. Doing so may damage the equipment.
4) XM Satellite Radio is only available in parts of North America and is a subscription based service.
....
