Vacuum Leak Fix with Pics RESOLVED
#1
Vacuum Leak Fix with Pics RESOLVED
2001 S-Type 3.0L V6
Tools needed:
8 mm deep well and regular socket
10 mm socket
knuckle/elbow piece to access back plenum bolts
Small screw driver to remove injector harnesses and hose.
Patience
After a lot of searching through these forums and my engine bay, I have finally found my vacuum leak.
It was a pretty big one that took me forever to find. I ended up replacing the upper and lower intake manifold gaskets, which brought me right by the leak, but I never saw it. It's a small, black hose in the middle back of the engine under the fuel rail.
There's here and there talk of it on these forums, but it all sounded like they were talking about the hard plastic lines that run under the manifold, not the soft one that I found.
This is it's general location. Easy enough taking the plenum off and setting it aside. Don't break the hard plastic lines, and careful when tightening it back down so as you don't strip out the brass fittings underneath. If you do, I used a fair amount of red thread locker and tapped it back in, let it dry, and finish assembling.

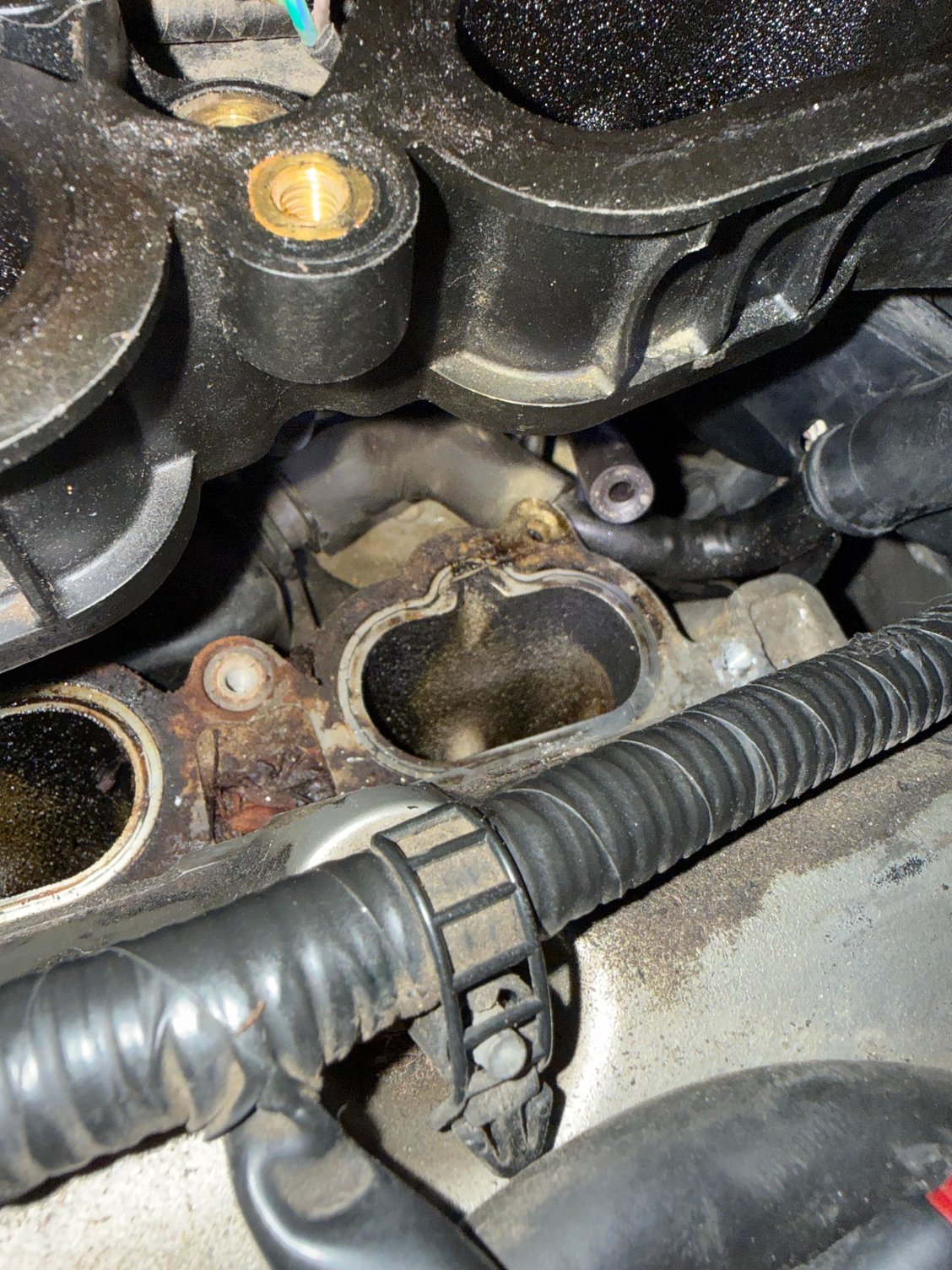

This is a closer shot of where the line is:
When taking off the fuel rail, careful not to break the fuel pressure sensor at the back of the fuel rail. And when putting the injectors back into the lower intake and the fuel rail back onto them, apply a small amount of oil to the rubber o-rings so they don't tear when you put them back.
The hose is under the circled injector.
Make sure to keep the color coded injectors on their correct sides when reinstalling.

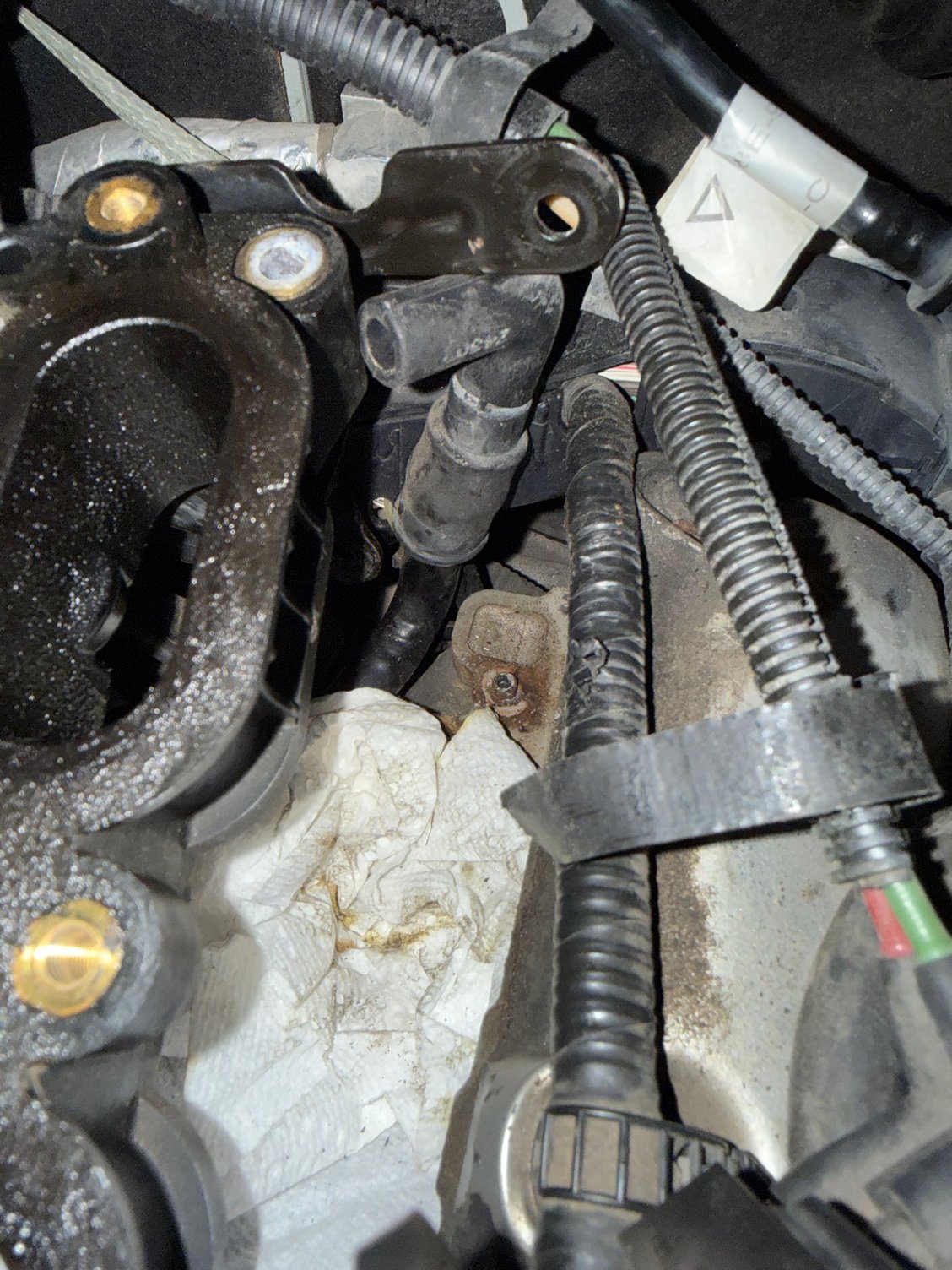

Here I have the right side lower intake removed so I could better access the hose. It's a tight squeeze regardless; taking off the lower intake gave me some more room to work with.
I had to use a small flathead screw driver to slowly and carefully work the hose off these plastic fittings. It's too tight of a fit to get my hand in there. And I didn't want to man handle it for fear of breaking more plastic parts.

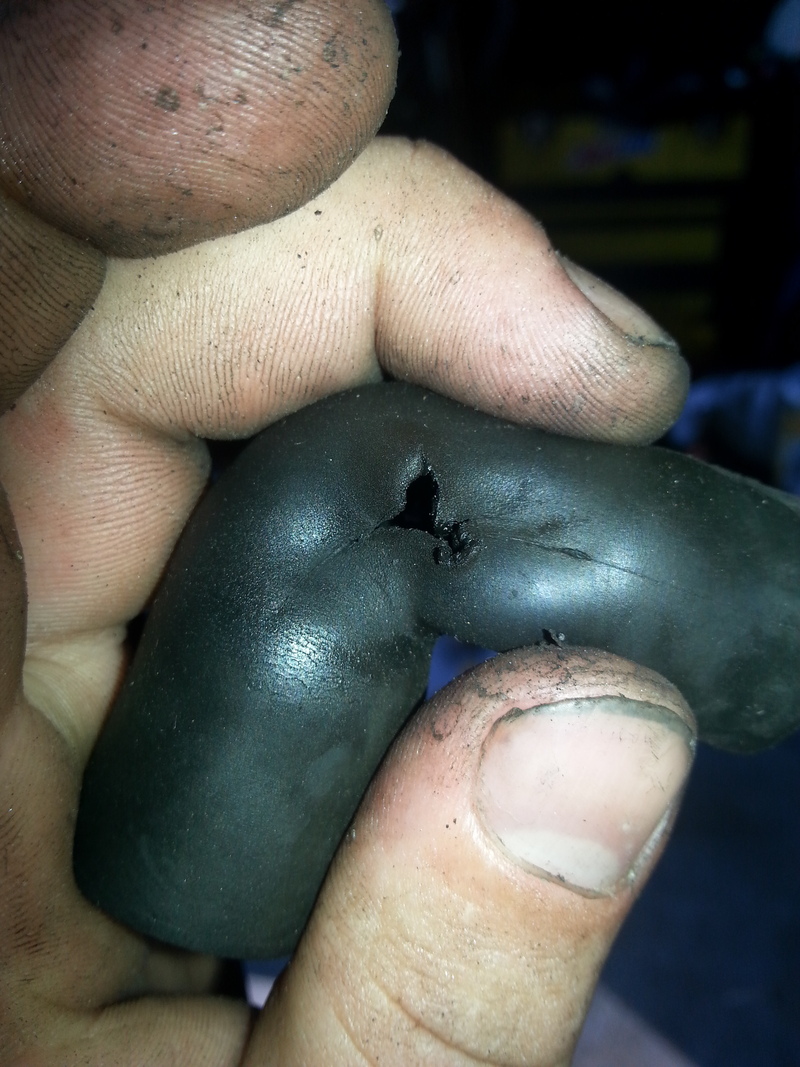

This is the culprit of my vacuum leak. Black soft hose at the back bottom of the intake under the fuel rail. I could hear the vacuum hiss, but impossible to find. My final look for this, I had pulled the fuel rail (again), reached down and felt the hose and felt the hole in it.
I didn't go to the Dealership to get a new hose, I just took the piece to Napa, told them I want to recreate this hose. They helped me match the size of the hose, I took the new hose home and cut it to size. Remember, it's easier to make it bigger, and cut a second time, instead of making it too small and adding hose.
Happy Hunting!
Tools needed:
8 mm deep well and regular socket
10 mm socket
knuckle/elbow piece to access back plenum bolts
Small screw driver to remove injector harnesses and hose.
Patience
After a lot of searching through these forums and my engine bay, I have finally found my vacuum leak.
It was a pretty big one that took me forever to find. I ended up replacing the upper and lower intake manifold gaskets, which brought me right by the leak, but I never saw it. It's a small, black hose in the middle back of the engine under the fuel rail.
There's here and there talk of it on these forums, but it all sounded like they were talking about the hard plastic lines that run under the manifold, not the soft one that I found.
This is it's general location. Easy enough taking the plenum off and setting it aside. Don't break the hard plastic lines, and careful when tightening it back down so as you don't strip out the brass fittings underneath. If you do, I used a fair amount of red thread locker and tapped it back in, let it dry, and finish assembling.
This is a closer shot of where the line is:
When taking off the fuel rail, careful not to break the fuel pressure sensor at the back of the fuel rail. And when putting the injectors back into the lower intake and the fuel rail back onto them, apply a small amount of oil to the rubber o-rings so they don't tear when you put them back.
The hose is under the circled injector.
Make sure to keep the color coded injectors on their correct sides when reinstalling.
Here I have the right side lower intake removed so I could better access the hose. It's a tight squeeze regardless; taking off the lower intake gave me some more room to work with.
I had to use a small flathead screw driver to slowly and carefully work the hose off these plastic fittings. It's too tight of a fit to get my hand in there. And I didn't want to man handle it for fear of breaking more plastic parts.
This is the culprit of my vacuum leak. Black soft hose at the back bottom of the intake under the fuel rail. I could hear the vacuum hiss, but impossible to find. My final look for this, I had pulled the fuel rail (again), reached down and felt the hose and felt the hole in it.
I didn't go to the Dealership to get a new hose, I just took the piece to Napa, told them I want to recreate this hose. They helped me match the size of the hose, I took the new hose home and cut it to size. Remember, it's easier to make it bigger, and cut a second time, instead of making it too small and adding hose.
Happy Hunting!
Last edited by JimC64; 07-16-2015 at 06:59 PM. Reason: The word is dealership
The following 11 users liked this post by hondakillah:
bricklingto (11-28-2015),
Don B (06-29-2015),
edankeven (02-17-2016),
EssOess (06-30-2015),
joesoap (07-17-2015),
and 6 others liked this post.
#2
The following users liked this post:
joycesjag (07-03-2021)
#3
Join Date: Jan 2012
Location: Newport Beach, California
Posts: 5,576
Received 2,579 Likes
on
1,784 Posts
The following users liked this post:
Jumpin' Jag Flash (07-08-2015)
#4
Join Date: Feb 2014
Location: Crossroads of America
Posts: 19,391
Received 12,737 Likes
on
6,379 Posts
#5
#6
Join Date: Nov 2006
Location: Glasgow, Scotland UK
Posts: 47,303
Received 9,005 Likes
on
4,113 Posts
#7
Vacuum Leak Fix with Pics RESOLVED
The following users liked this post:
joesoap (07-17-2015)
Trending Topics
#8
#9
Just to give some closure on my vacum leak.
It was caused by Valve seat recession possibly as result of using LPG without valve saver lubricant.
Ended up putting on 2 used heads.
Instead of chasing all of the normal areas for vac leaks wishing I had done a compression test a lot earlier in diagnosis?
Lesson learned.
It was caused by Valve seat recession possibly as result of using LPG without valve saver lubricant.
Ended up putting on 2 used heads.
Instead of chasing all of the normal areas for vac leaks wishing I had done a compression test a lot earlier in diagnosis?
Lesson learned.
The following 3 users liked this post by joesoap:
#10
#11
Just to give some closure on my vacum leak.
It was caused by Valve seat recession possibly as result of using LPG without valve saver lubricant.
Ended up putting on 2 used heads.
Instead of chasing all of the normal areas for vac leaks wishing I had done a compression test a lot earlier in diagnosis?
Lesson learned.
It was caused by Valve seat recession possibly as result of using LPG without valve saver lubricant.
Ended up putting on 2 used heads.
Instead of chasing all of the normal areas for vac leaks wishing I had done a compression test a lot earlier in diagnosis?
Lesson learned.
#13
#14
V6 3litre vacuum leak
Hi
Which Codes did you see associated with this issue. ? I have P0171 and P0174 No 1 and No 2 bank too lean. ie too much air.
it has become a nuisance and whilst I do not get an Engine light or limp home mode - it is rather annoying.
Did you also replace the IMT valve O rings at the same time?
Any guidance would be gratefully received.,
Jaguar Growlers unite ! LOL
rgds
Stuart
Which Codes did you see associated with this issue. ? I have P0171 and P0174 No 1 and No 2 bank too lean. ie too much air.
it has become a nuisance and whilst I do not get an Engine light or limp home mode - it is rather annoying.
Did you also replace the IMT valve O rings at the same time?
Any guidance would be gratefully received.,
Jaguar Growlers unite ! LOL
rgds
Stuart
